IMBA-8650 Motherboard
Page 113

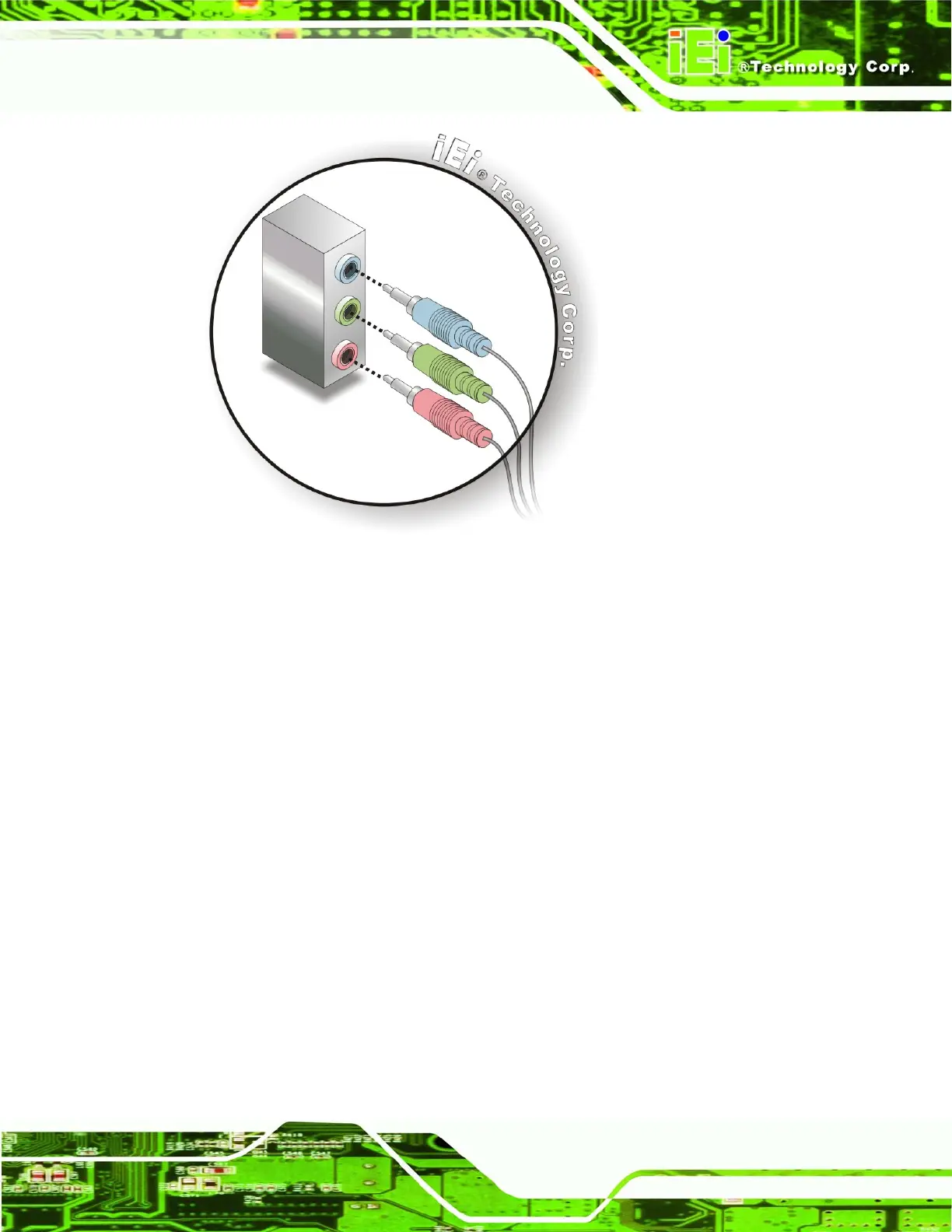

Figure 5-18: Audio Connectors
5.7.6 VGA Monitor Connection
The IMBA-8650 has a single female DB-15 connector on the external peripheral interface
panel for a VGA monitor. Follow the steps below to connect a VGA monitor to the
IMBA-8650.
Step 1: Locate the DB-15 connector. The location of the DB-15 connector is shown in
Chapter 3.
Step 2: Insert the VGA connector. Insert the DB-15 connector of a VGA monitor into the
DB-15 connector on the external peripheral interface. See
Figure 5-19.
