IEI Technology IMBA-8650 User Manual

IMBA-8650 Motherboard
Page 85
4.3.6 VGA Connector
CN Label: VGA1
CN Type: HD-D-sub 15 Female connector
CN Location: See
Figure 4-21 (labeled 6)
CN Pinouts:
See
Figure 4-28 and Table 4-27
The standard HD-D-sub 15 female connector connects to a CRT or LCD monitor.

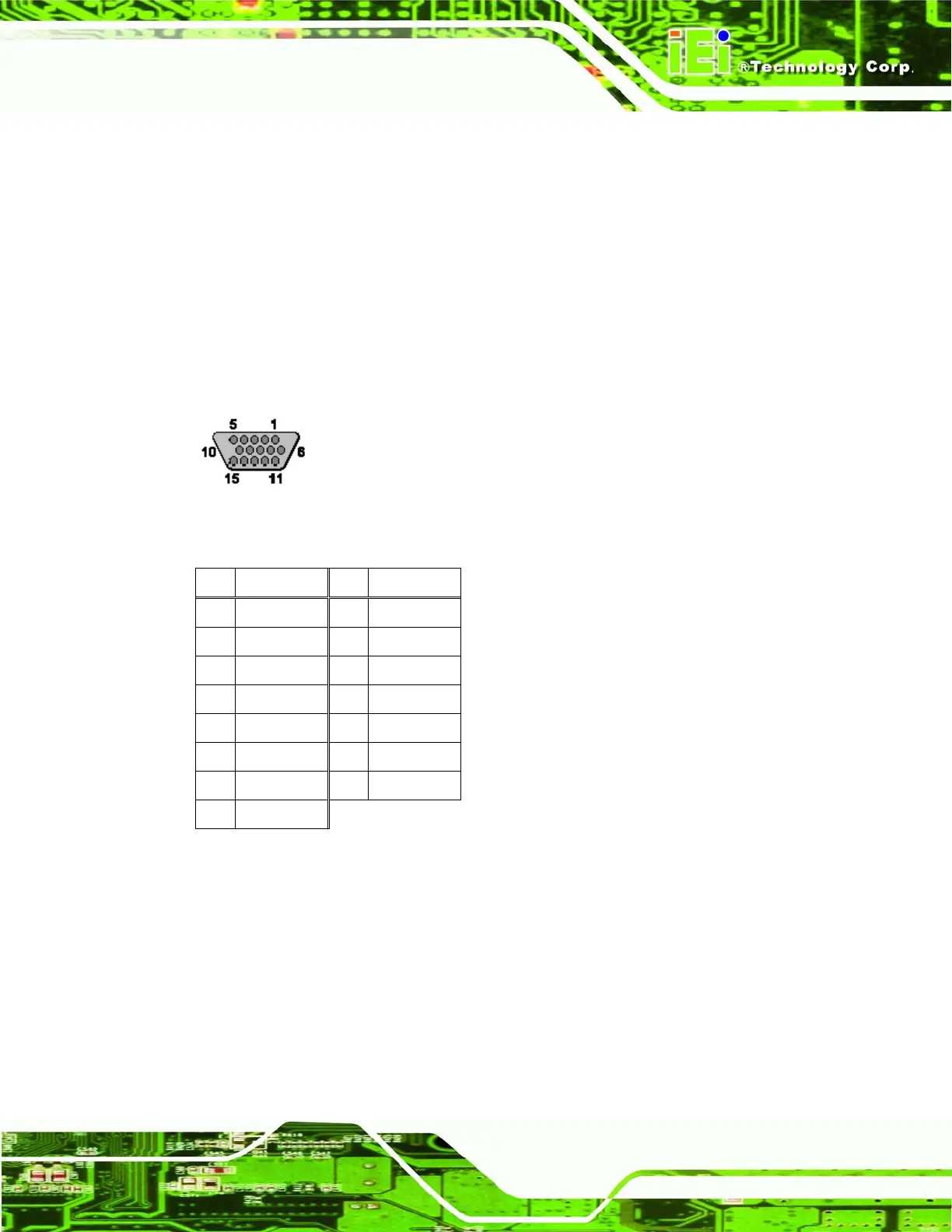

Figure 4-28: VGA Connector
PIN Description PIN Description
1 RED 2 GREEN
3 BLUE 4 N/C
5 GND 6 GND
7 GND 8 GND
9 VCC 10 GND
11 N/C 12 DDC DAT
13 HSYNC 14 VSYNC
15 DDC CLK
Table 4-27: VGA Connector Pinouts
4.3.7 Serial Communications Connector
CN Label: COM1
CN Type: D-sub 9 Male connector
CN Location: See
Figure 4-21 (labeled 7)
CN Pinouts:
See
Figure 4-29 and Table 4-28
