IMBA-8650 Motherboard
Page 25
SATA controller specifications are listed below.
Supports two SATA drives
Supports 1.5Gb/s data transfer speeds
Supports Serial ATA Specification
2.6.8 Intel
®
ICH5 USB Controller
Up to eight high-speed, full-speed or low-speed USB devices are supported by the ICH5.

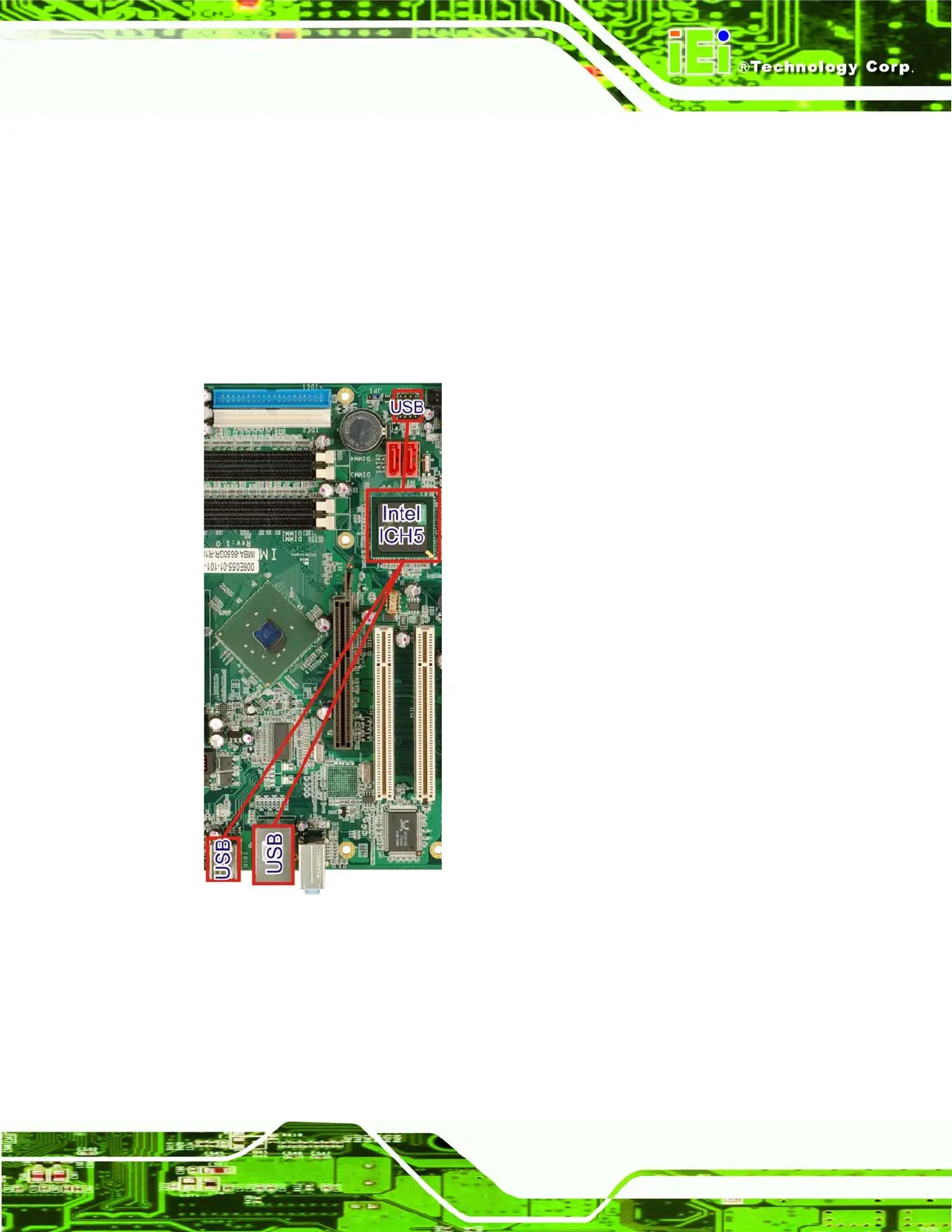

Figure 2-14: USB
High-speed USB 2.0, with data transfers of up to 480MB/s, is enabled with the ICH5
integrated Enhanced Host Controller Interface (EHCI) compliant host controller. USB
full-speed and low-speed signaling is supported by the four ICH5 integrated Universal
Host Controller Interface (UHCI) controller.
