IEI Technology IMBA-8650 User Manual

IMBA-8650 Motherboard
Page 57
PIN DESCRIPTION PIN DESCRIPTION
1 SUROUTL 2 CENOUT
3 GND 4 GND
5 SUROUTR 6 LFEOUT
7 GND
Table 4-6: Audio Connector Pinouts (8-pin)
4.2.5 Auxiliary Audio Connector (4-pin)
CN Label:
CN3
CN Type:
4-pin header
CN Location:
See
Figure 4-6
CN Pinouts:
See
Table 4-7
The 4-pin auxiliary audio connector provides a second audio input to the system.

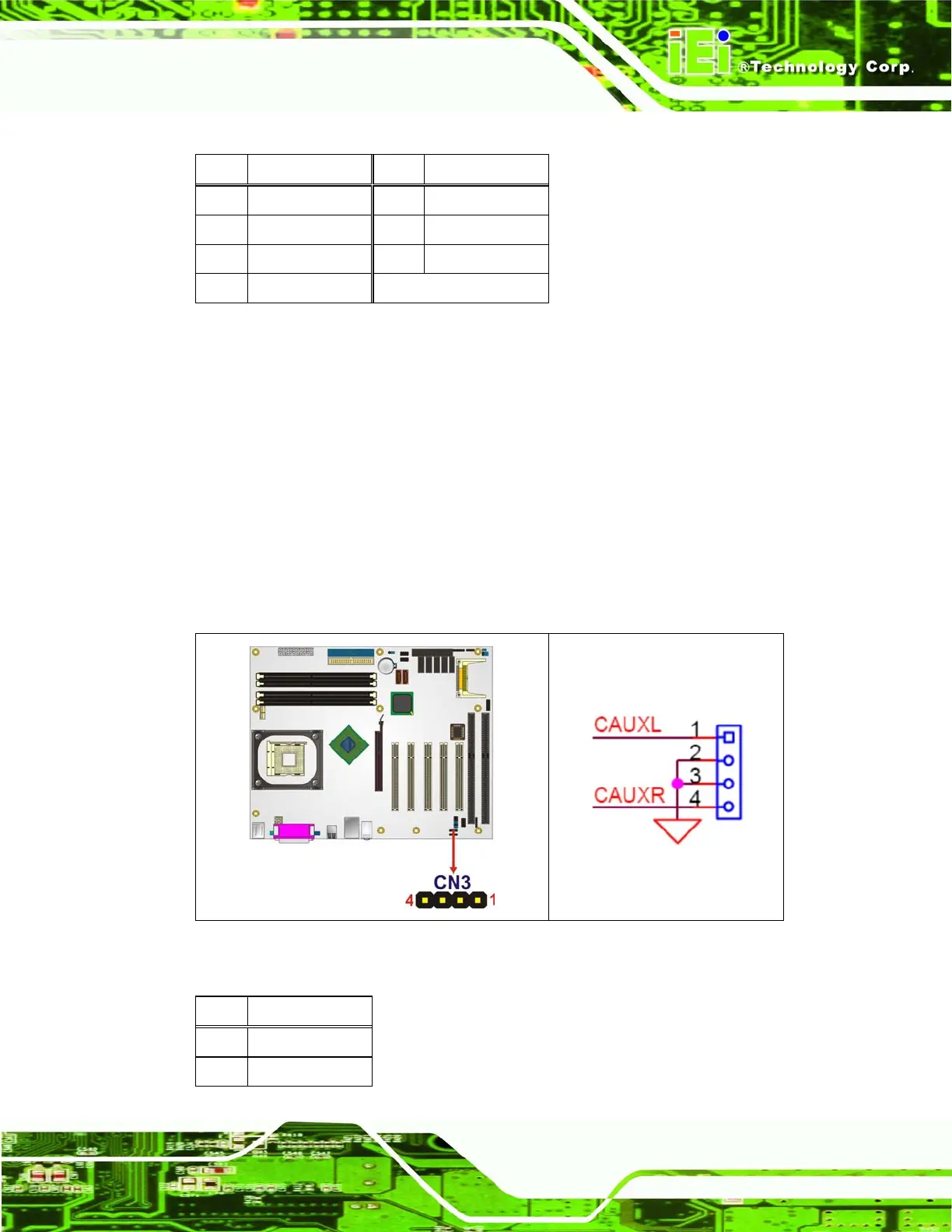

Figure 4-6: Auxiliary Audio Connector Location (4-pin)
PIN DESCRIPTION
1 CAUXL
2 GND
