IMBA-8650 Motherboard
Page 16
o Simultaneous Display options with digital display
Digital Display Channels
o Two channels multiplexed with AGP
o 165 MHz dot clock on each 12-bit interface
o Can combine two, 12-bit channels to form one, 24-bit interface Supports
flat panels up to 2048x1536 @ 60 Hz or digital CRT/HDTV at 1920x1080
@ 85 Hz
o Supports Hot Plug and Display
o Supports LVDS, TMDS transmitters or TV-out encoders
o ADD card utilizes AGP connector
o Three Display Control interfaces (I2C/DDC) multiplexed on AGP
2.5.2 Intel® 865G Memory Support
The Intel® 865G supports four, 1GB, 333/400MHz dual channel DDR SDRAM DIMMs.
Four 184-pin memory sockets on the IMBA-8650 enable a maximum of 4GB of memory to
be installed on the system. The memory sockets are shown in
Figure 2-6.

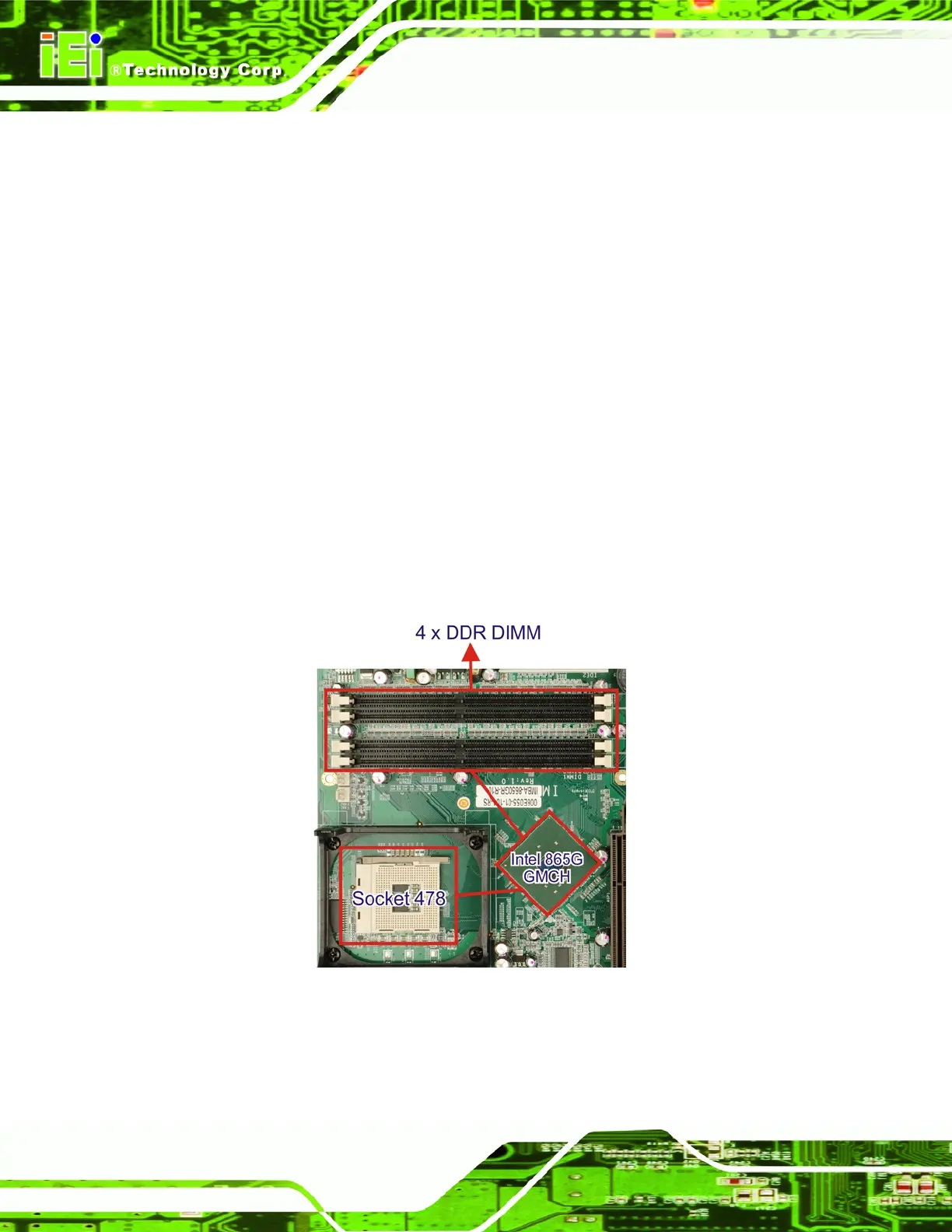

Figure 2-6: 184-pin DIMM Sockets
