IMBA-8650 Motherboard
Page 103

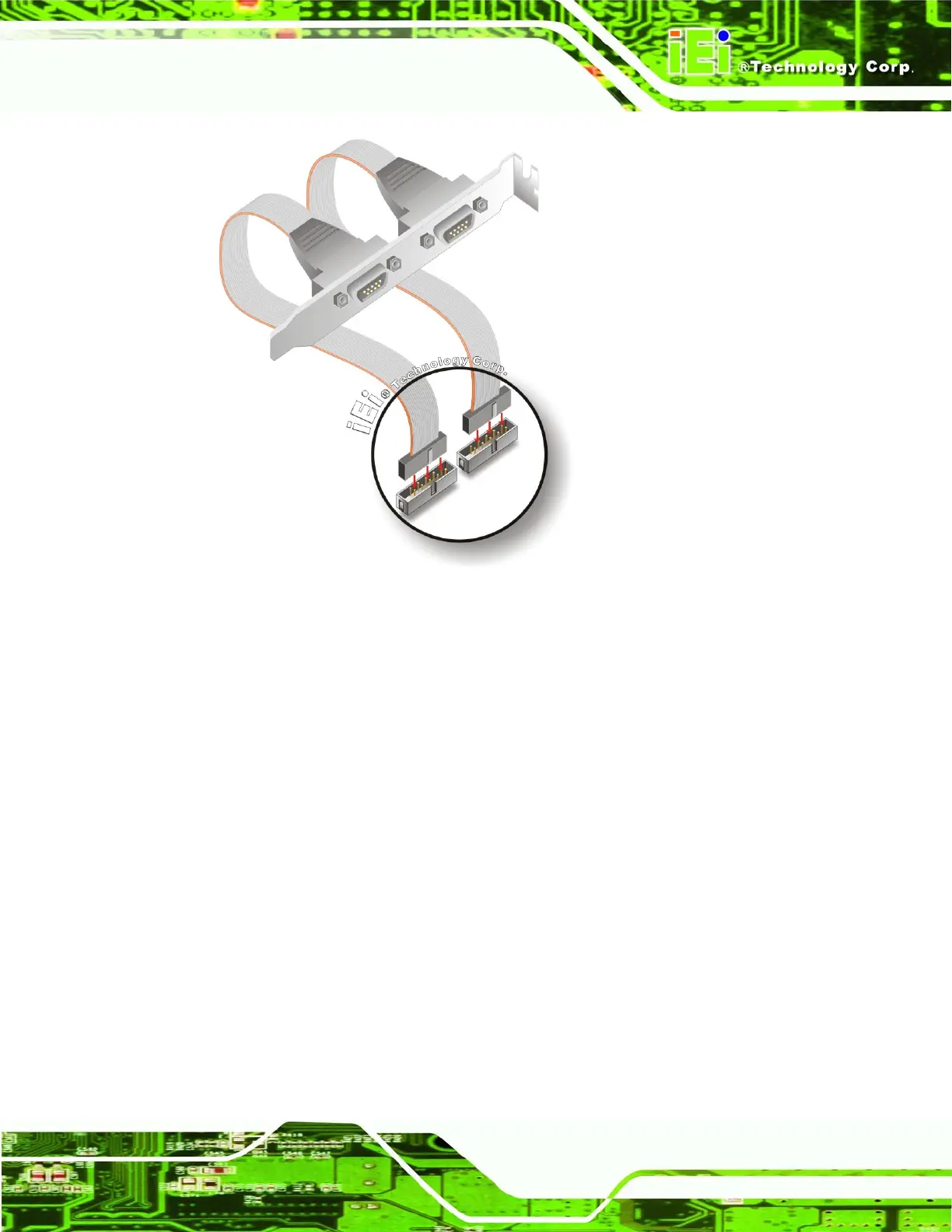

Figure 5-8: Dual RS-232 Cable Installation
Step 3: Secure the bracket. The dual RS-232 connector has two D-sub 9 male
connectors secured to a bracket. To secure the bracket to a chassis please refer
to the reference material that came with the chassis. Step 0:
5.6.4 Single RS-232 Cable with Slot Bracket
The single RS-232 cable consists of one serial port connectors attached to a serial
communications cable that is then attached to a D-sub 9 male connector that is mounted
onto a bracket. To install the single RS-232 cable, please follow the steps below.
Step 1: Locate the connector. The location of the RS-232 connector is shown in
Chapter 3.
Step 2: Insert the cable connector. Insert the connector into the serial port box header.
See
Figure 5-8. A key on the front of the cable connectors ensures the
connector can only be installed in one direction.
