IMBA-8650 Motherboard
Page 110
5.7.2 Parallel Device Connection
The IMBA-8650 has a single female DB-25 connector on the external peripheral interface
panel for parallel devices. Follow the steps below to connect a parallel device to the
IMBA-8650.
Step 1: Locate the DB-25 connector. The location of the DB-25 connector is shown in
Chapter 3.
Step 2: Insert the DB-25 connector. Insert the DB-25 connector of a parallel device into
the DB-25 connector on the external peripheral interface. See
Figure 5-15.

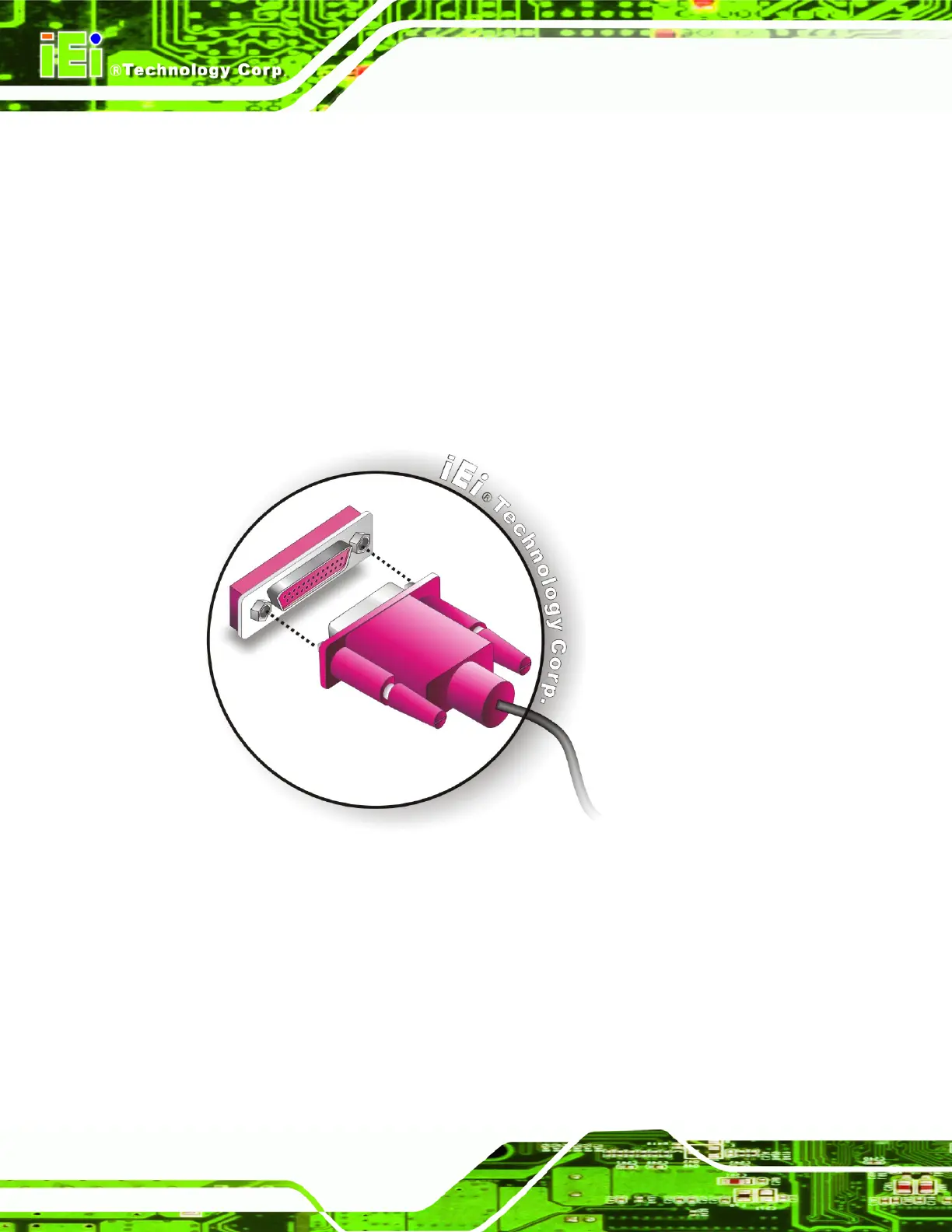

Figure 5-15: Parallel Device Connector
Step 3: Secure the connector. Secure the DB-25 connector to the external interface by
tightening the two retention screws on either side of the connector. Step 0:
