IMBA-8650 Motherboard
Page 27
Controller (MAC) with a triple-speed Ethernet transceiver, a 32-bit PCI bus controller, and
embedded memory.

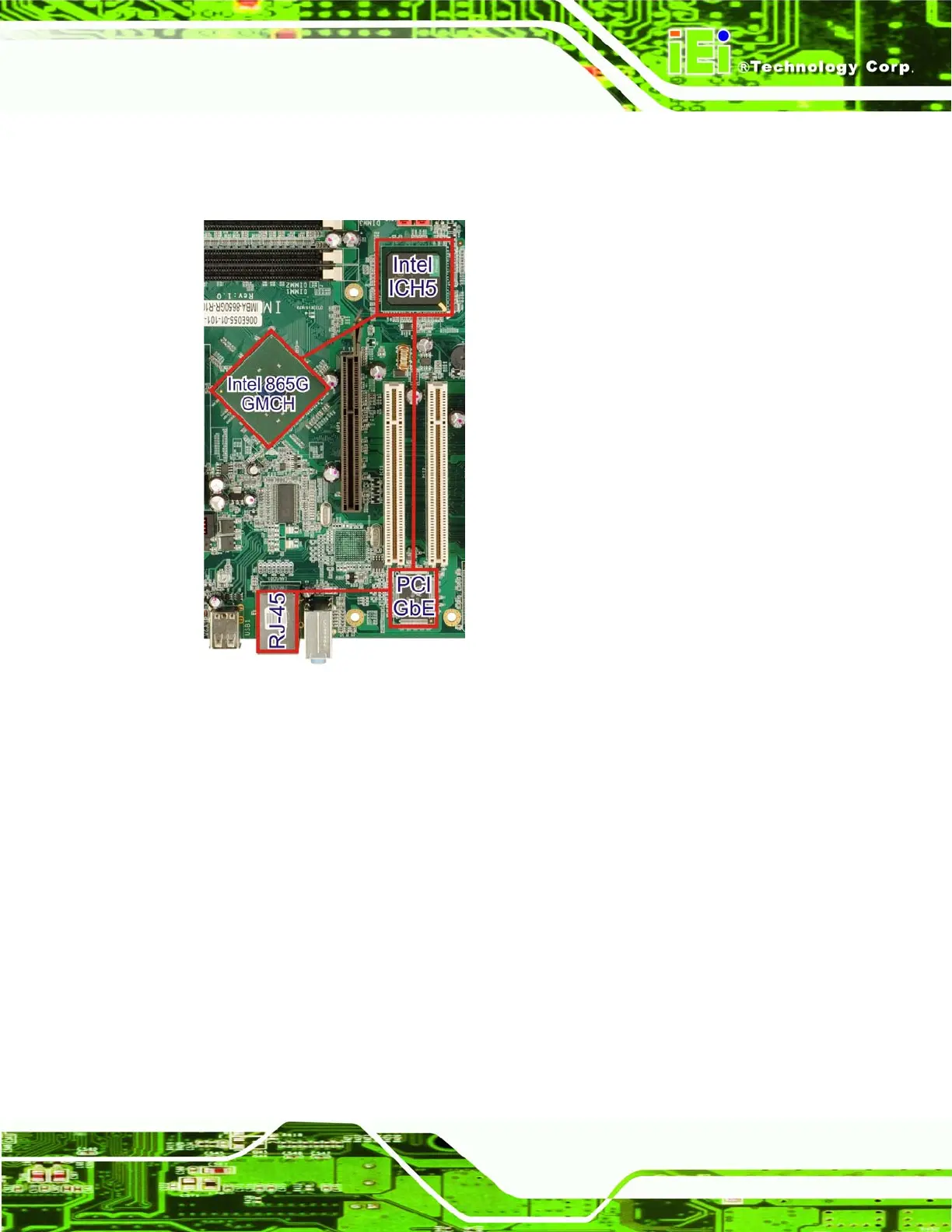

Figure 2-15: Gigabit Ethernet
Some of the Realtek RTL8110SC controller features are listed below:
Integrated 10/100/1000 transceiver
Auto-Negotiation with Next Page capability
Supports PCI rev.2.3, 32-bit, 33/66MHz
Supports CLKRUNB and Mini PCI vl.0
Supports pair swap/polarity/skew correction
Crossover Detection & Auto-correction
Wake-on-LAN and remote wake-up support
Microsoft NDIS5 Checksum Offload (IP, TCP, UDP) and largesend offload
support
Supports Full Duplex flow control (IEEE 802.3x)
Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
