IEI Technology IMBA-8650 User Manual

IMBA-8650 Motherboard
Page 77
PIN DESCRIPTION
1 TX1+
2 TX1-
3 RX1+
4 RX1-
Table 4-19: Serial Port Connector (RS-422/485) Pinouts
4.2.18 SPDIF Connector
CN Label:
SPDIF1
CN Type:
5-pin header
CN Location:
See
Figure 4-19
CN Pinouts:
See
Table 4-20
Use the SPDIF connector to connect digital audio devices to the system.

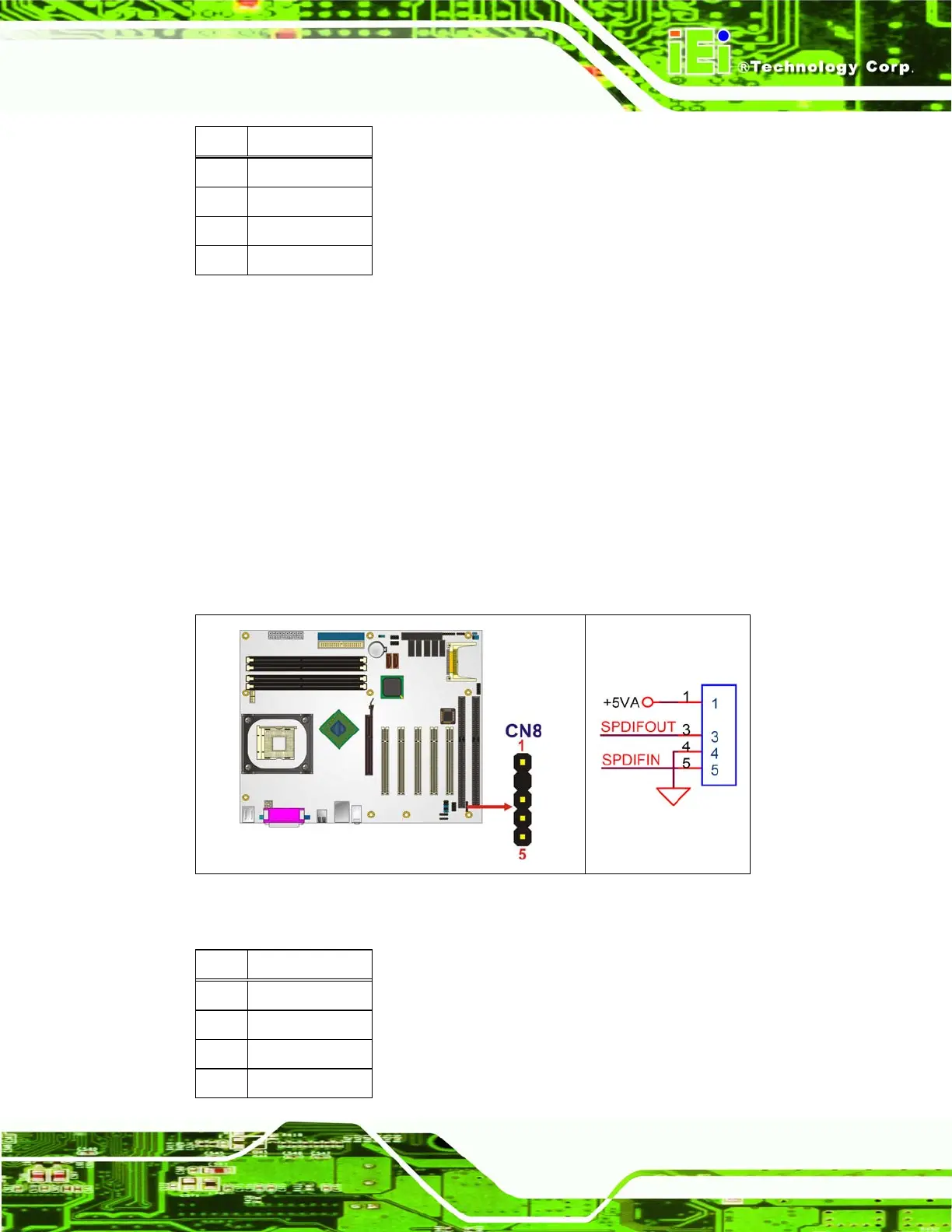

Figure 4-19: SPDIF Connector Pinout Locations
PIN DESCRIPTION
1 VCC AUDIO
2 NC
3 SPDIF OUT
4 GND AUDIO
