IMBA-8650 Motherboard
Page 81
CN Pinouts: See Figure 4-23 and Table 4-23
These ports are usually connected to a printer. IMBA-8650 includes one on-board parallel
ports accessed through one 25-pin D-type female connector.

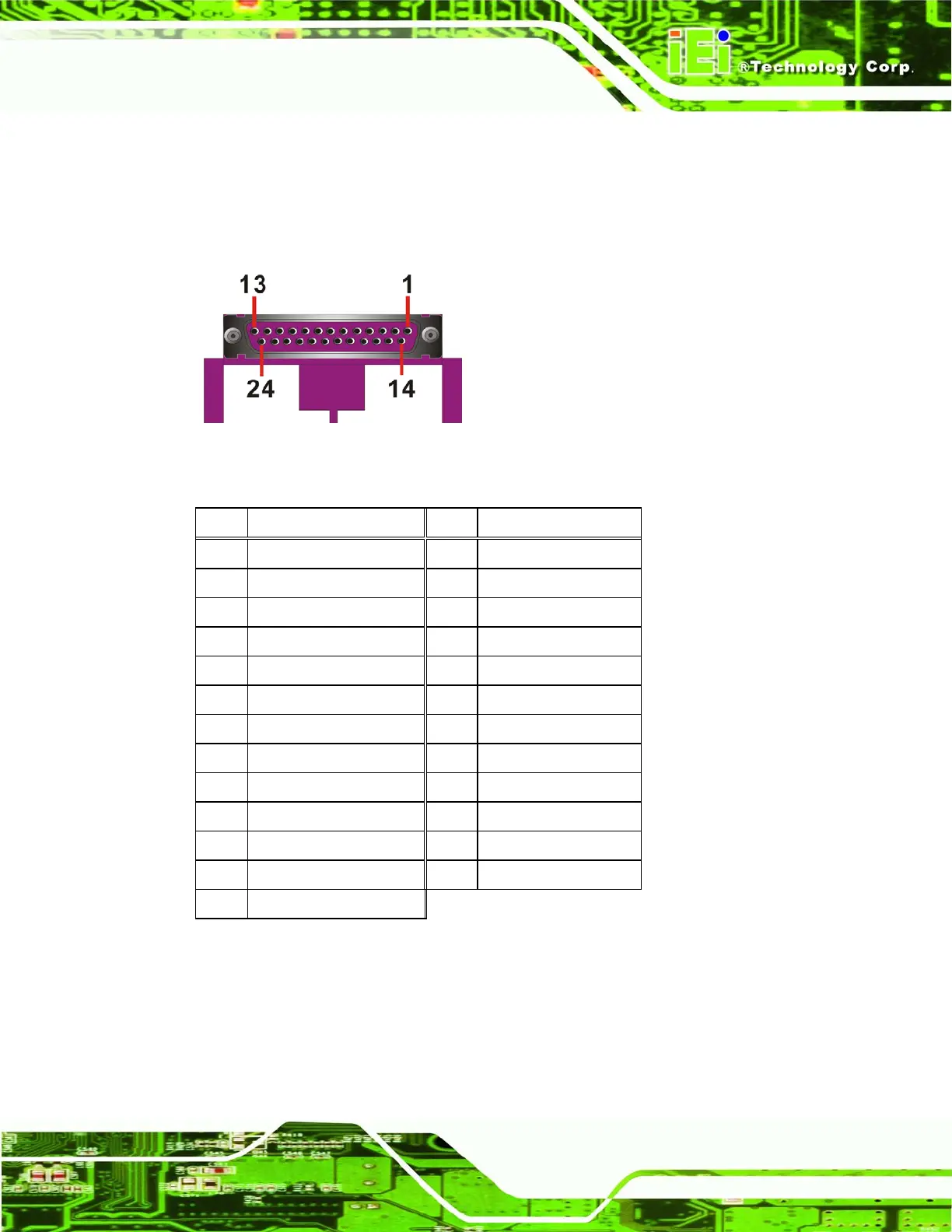

Figure 4-23: Parallel Port Connector Pinout Locations
PIN Description PIN Description
1 STROBE# 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6
9 DATA 7 10 ACKNOWLEDGE
11 BUSY 12 PAPER EMPTY
13 PRINTER SELECT 14 AUTO FORM FEED #
15 ERROR# 16 INITIALIZE
17 PRINTER SELECT LN# 18 GND
19 GND 20 GND
21 GND 22 GND
23 GND 24 GND
25 GND
Table 4-23: Parallel Port Connector Pinouts
4.3.3 USB Connectors
CN Label: USB1 and LAN/USB1
