ifm Vision Assistant O3M
UK

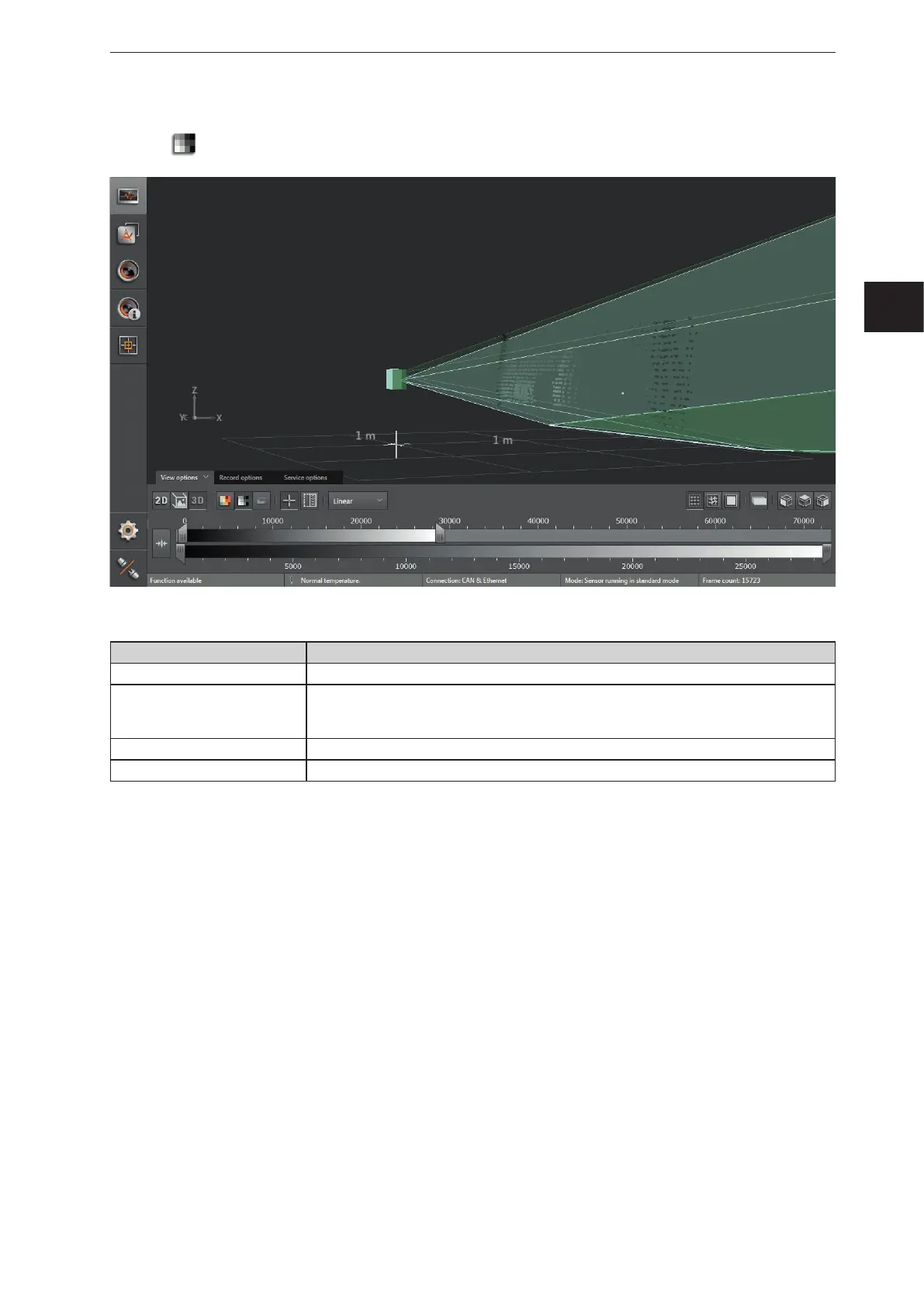

Amplitude image
► Click
to display the amplitude image.
► Select the required view via [Logarithmic] or [Linear].
Visualisation in the 3D image Description
Pixel position Space coordinate of the point (x, y, z coordinates).
Pixel colour (grey-scale)
Amplitude value.
The brightness follows the measured amplitude and the setting of the grey scale (→ „6.1.4
Slider bar“).
Black Amplitude value ≤ minimum of the set scale.
White Amplitude value ≥ maximum of the set scale.
