ifm Vision Assistant O3M
94

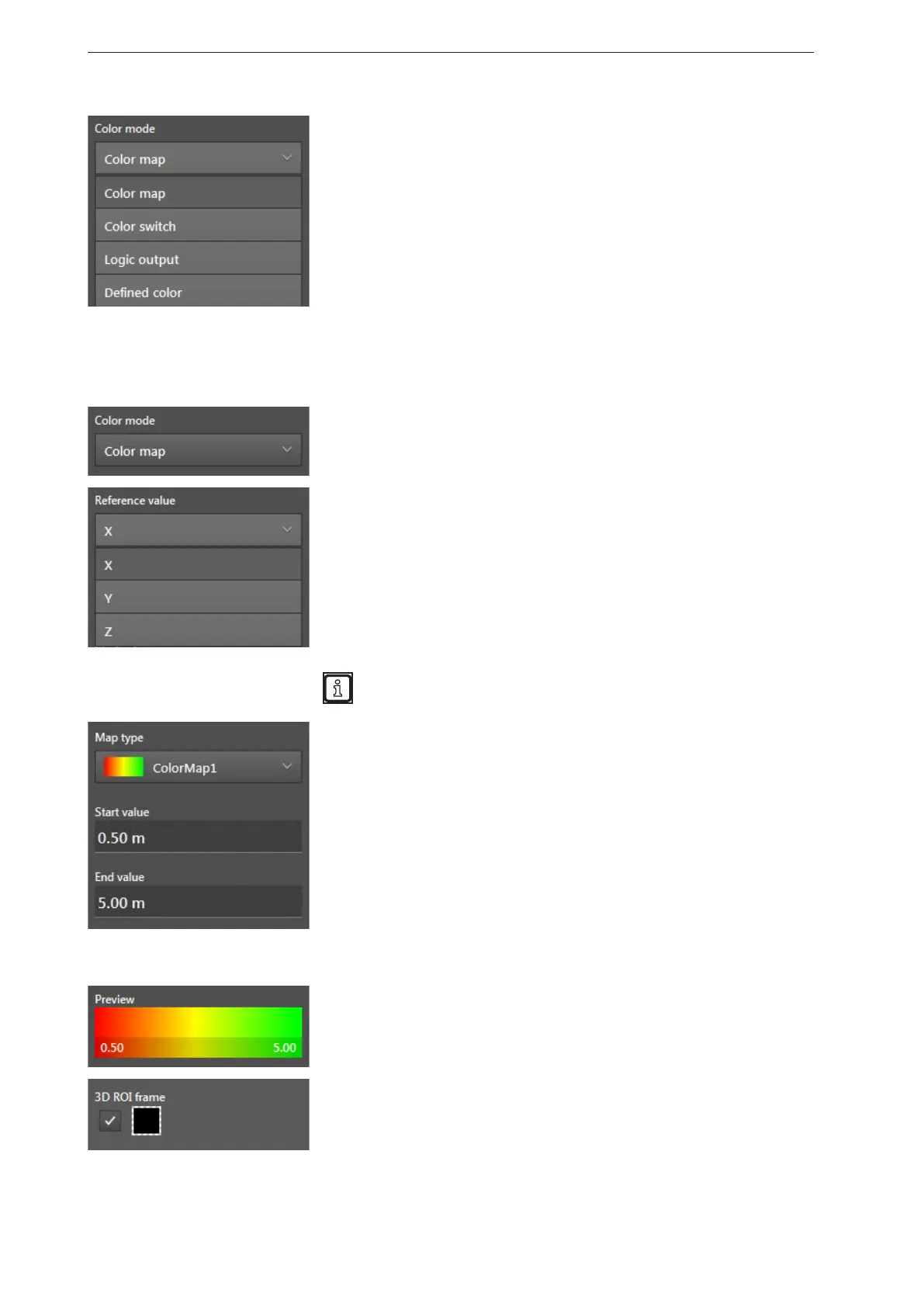

In the list "colour mode", the behaviour of the colours of the colour
overlay can be set. The following colour modes are available:
● [Colour map]
The colour changes with the set reference value.
● [Colour switch]
After a threshold value is reached, there is a change between 2
colours.
● [Logic output]
The colour changes according to the condition of the virtual digital
outputs of the ROI groups.
● [Defined colour]
The colour setting is fixed and does not change.
Colour mode [Colour map]
In the colour mode [Colour map], the colour changes with the set
reference value.
The "reference value" defines with which ROI group output the moving
wall shifts. The following reference values can be selected:
● [X] - The moving wall is projected in the Y-Z level and moves with
the reference value X.
● [Y] - The moving wall is projected in the X-Z level and moves with
the reference value Y.
● [Z] - The moving wall is projected in the Y-X level and moves with
the reference value Z.
The reference value additionally defines which ROI group output is
used as basis for the colouring of the moving wall.
The "Map type" defines the type of the colour gradient. You can
choose among the following:
● Colour map 1
● Colour map 1 mirrored
● Colour map 2
● Colour map 2 mirrored
A start and end value can be set:
● Output of the ROI group < start value: The colour of the start value
is used.
● Output of the ROI group > end value: The colour of the end values
is applied.
The "preview" graphically shows the set colour map in combination
with the start and end value.
The "3D ROI frame" is configurable:
● By activating the control field, the "3D ROI frame" is shown.
● By clicking on the colour field, the colour of the "3D ROI frame" can
be changed.
