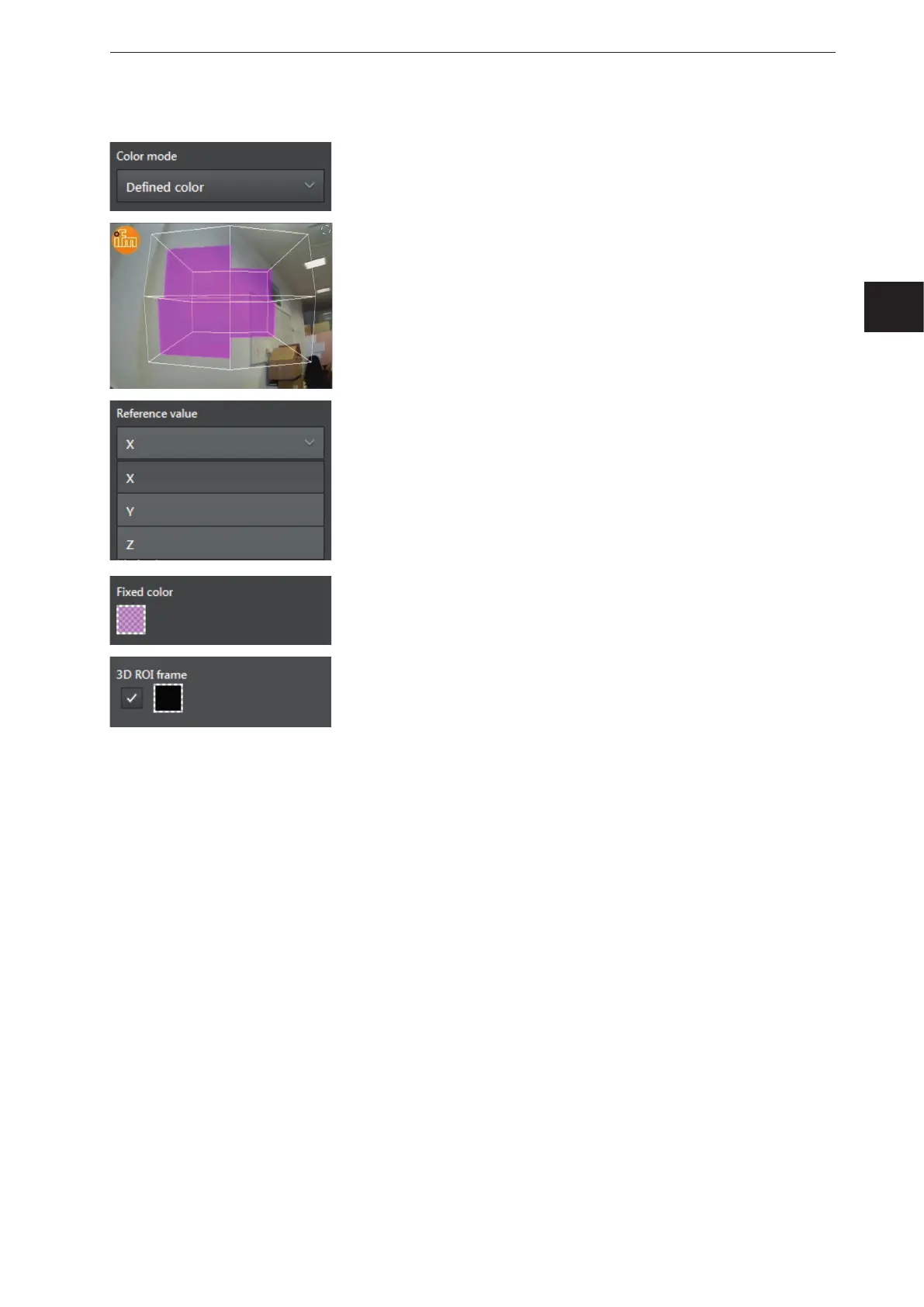

Colour mode [defined colour]
In the colour mode [defined colour], the colour setting is fixed and
does not change.
In the figure on the left, the outputs of 4 ROI groups are shown as
defined colour.
[Defined colour] is set as "colour mode".
The "3D ROI frame" is shown in [white].
The "reference value" defines with which ROI group output the moving
wall shifts. The following reference values can be selected:
● [X] - The moving wall is projected in the Y-Z level and moves with
the reference value X.
● [Y] - The moving wall is projected in the X-Z level and moves with
the reference value Y.
● [Z] - The moving wall is projected in the Y-X level and moves with
the reference value Z.
The "fixed colour" determines the defined colour for the moving wall.
The the setting of the colour of the moving wall is fixed and does not
change.
The "3D ROI frame" is configurable:
● By activating the control field, the "3D ROI frame" is shown.
● By clicking on the colour field, the colour of the "3D ROI frame" can
be changed.
