Mechanical Information
5-2
Intel740™ Graphics Accelerator Design Guide
5.3 VMI Header Placement
The VMI header allows the connection of a DVD daughter Card. The reference card places the
header at the bottom of the card. For other designs, these headers may be placed at the top of the
board. The latter is recommended for an NLX card.
Note: Z1 Connectors in Figure 5-3 are on the backside of the card.

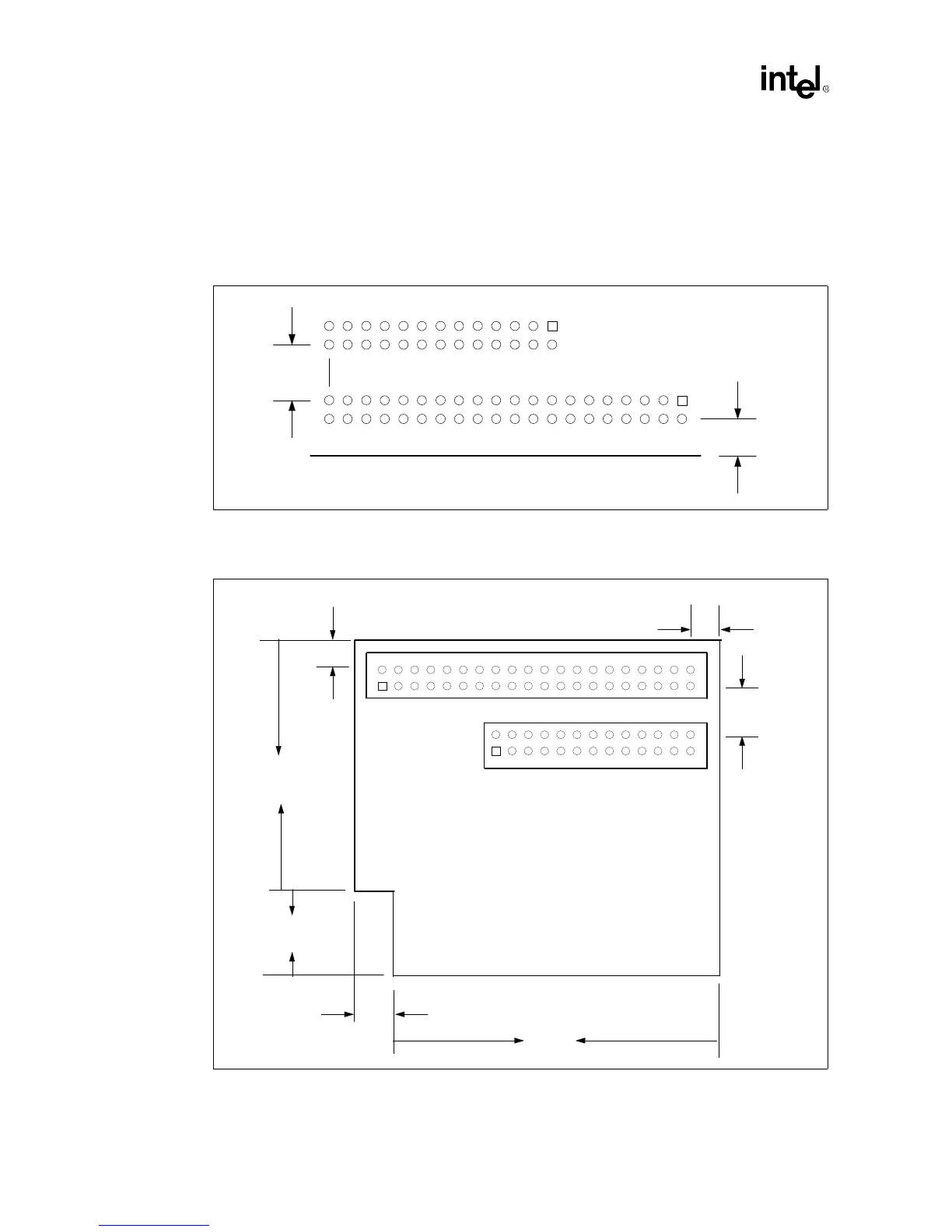

Figure 5-2. VMI Header Placement
0.200” min
0.300”
Board Edge
40-pin conn
26-pin conn
Z1
Z1
Figure 5-3. DVD Daughter Card Dimensions (ATX and NLX)—Top Side
0.200” min
0.300”
Z1
Z1
.200”
min
2.05” max
0.355”
max
1.945”
max
0.825”
max
