Intel740™ Graphics Accelerator Design Guide 3-11
3 Device AGP MotherBoard Design
Figure 3-8 shows the proposed component placement for a single Pentium II processor for the ATX
form factor design.
ATX Form Factor
1. The ATX placement and layout below is recommended for single (UP) Pentium II Processor /
Intel 440BX AGPset/ Intel740 Graphics Accelerator system design.
2. The example placement below shows 1 Slot 1 connector, 2 PCI slots, 1 Shared slot, 3 DIMM
sockets, and one AGP connector.
3. For an ATX form factor design, the AGP compliant graphics device can be either on the
motherboard (device down option), or on an AGP connector (up option).
4. The trace length limitation between critical connections will be addressed later in this
document.
5. Figure 3-8 is for reference only and the trade-off between the number of PCI and ISA slots,
number of DIMM sockets, and other motherboard peripherals need to be evaluated for each
design

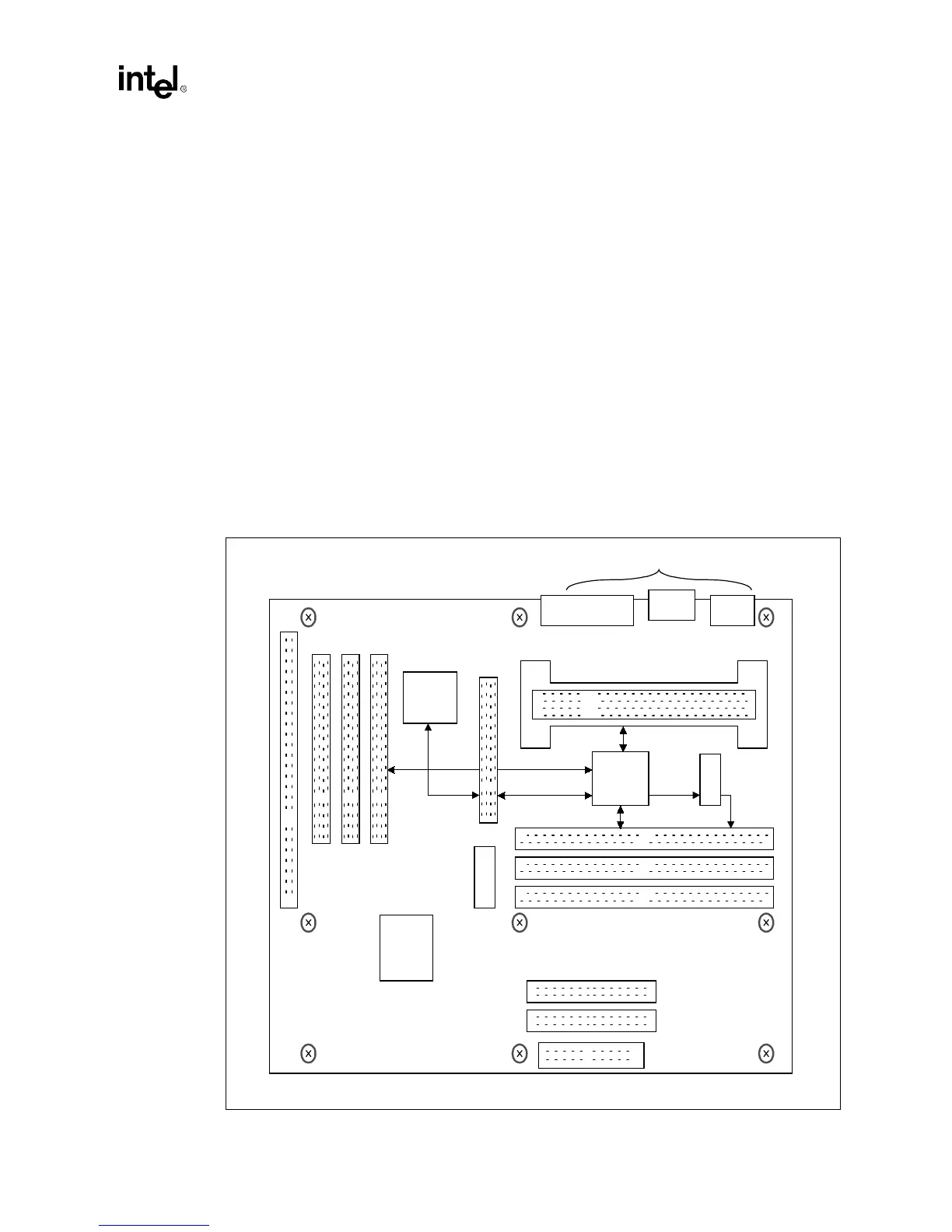

Figure 3-8. Example ATX Placement for a UP Pentium
®
II Processor / Intel
®
440BX AGPset /
Intel 740 Graphics Accelerator Design
82443BX
PIIX4E
I/O Ports
Pentium
®
II
Slot 1
IDE 0/1
SDRAM DIMMs
PCI0
AGP/PCI1
CKBF
CK100
v002
AGP Interface
PCI Interface
Intel740
chip
SDRAM Interface
Host Interface
