Revision 0.91
15
SO-DIMM Module — Unbuffered SDRAM/SGRAM Graphics

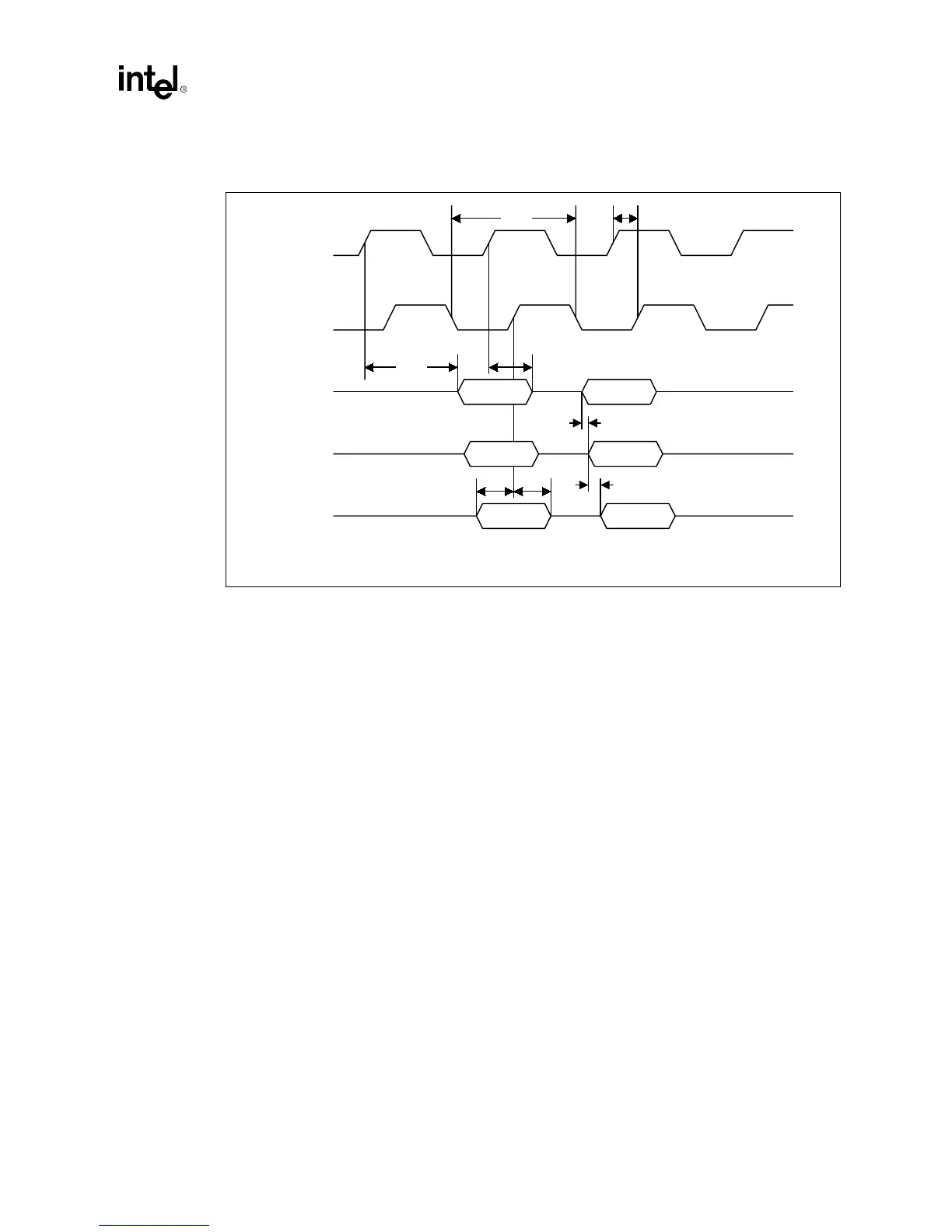

Figure 8. Data Read A.C. Timing Paramters
CLK to
Gfx Ctrl
Data
Data Output
Data at
SO-DIMM
Interface
Data Input
A007.vsd
CLK to Memor
y
tac
txfm
tc
c tcsk
txfs
thi
tsi
toh
