Assembly
3.8.2WiringforModuliteSeatingSystem(ProntoM41Only)

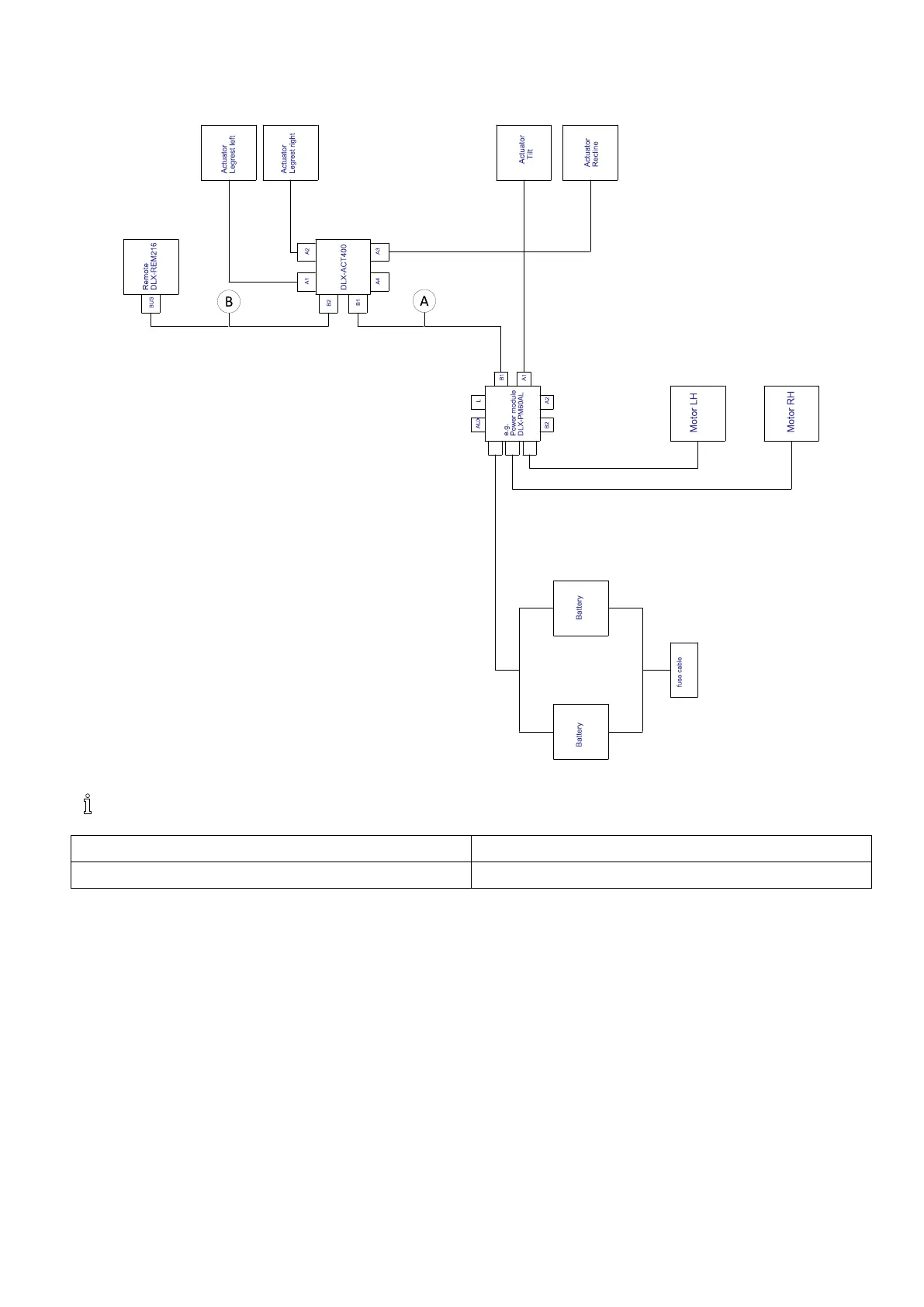

WiringforProntoM41withModulite:Tilt,Recline,PoweredElevatingLegrestsandDLX-ACT400
Fig.3-5
Cablelengthmayvarydependingonmountingpositionsofprimaryremote.
A
1000mm
B
1200mm
1605129-G25
