ModifyingwheelchaircongurationwithiOStool
8.13ConguringControlInput/Output(ControlIO)
FordetailedinformationaboutControlIO,referto5.2.3OverviewControlInput/Output(ControlIO),page64.
SelectandCongureControlInput
1.FromHomescreenscrolldown
andtaponModules.

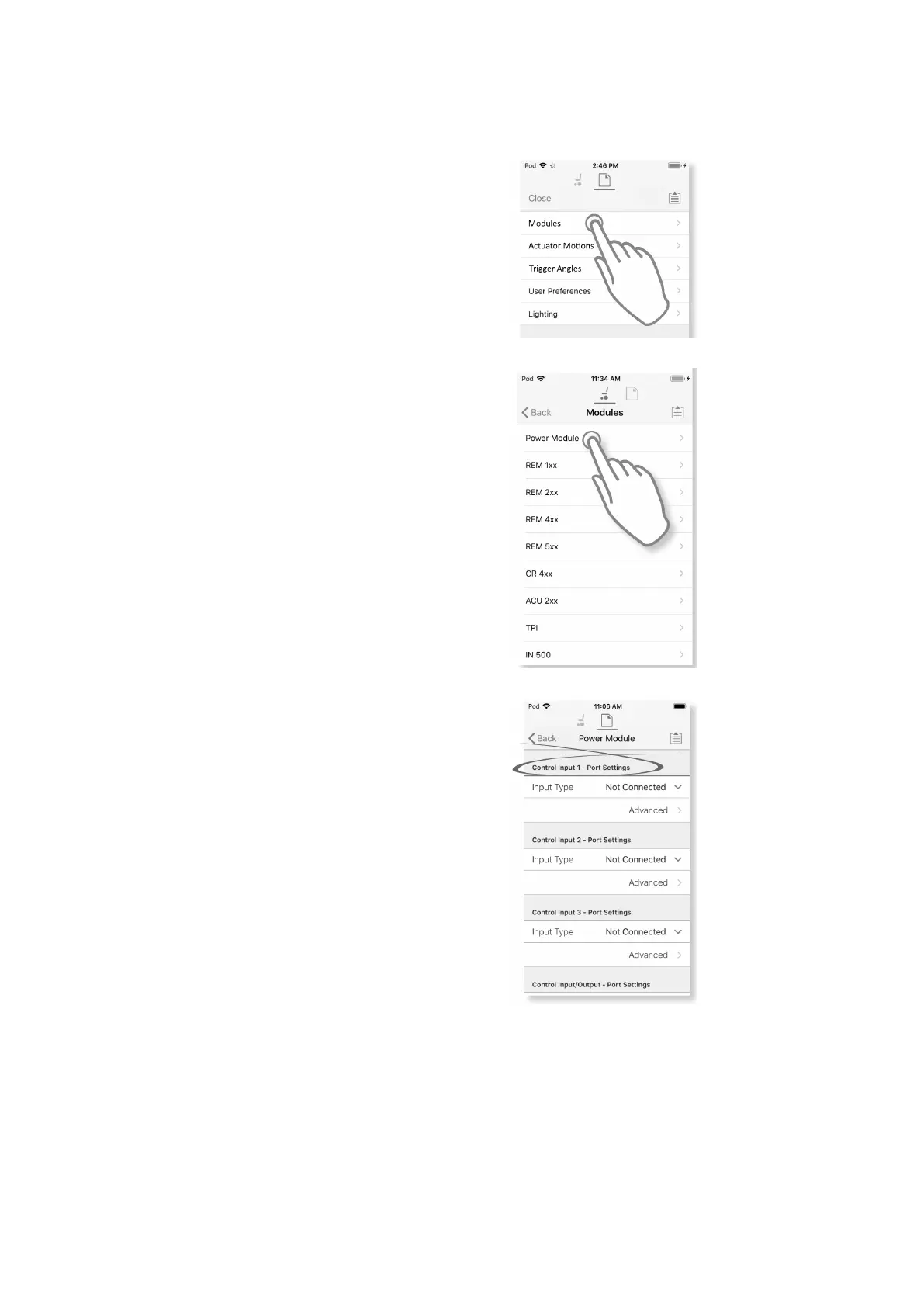

Fig.8-33
2.Selectmoduleyoursystemcontrol
inputisconnectedto.
Forexample,ifyouhaveabuddy
buttonconnectedtooneofCIpins
onpowermodule,selectPower
Module.Ifyouwanttouseoneof
multipurposebuttonsonREM400,
selectREM4xx.
Fig.8-34
3.ScrolldowntoPortSettingsfor
controlinput.
Forexample,ifyouwanttoadd
apowerbuttontotheleftjack
socketonaREM400,scrolldown
to
LeftJackSocket(J1)Tip—Port
Settings.
Fig.8-35
