IPCGansow CT 230 BT 85 - Page 111

PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT.
Stavale
- date 05/09/2011 100/195
36 Move the black wire D2 from position 4 to position 1 of the connector B and connect to the terminal of the
brown wire B1.
37 Connect the opposite ends of the wires D1 and D2 to the digital multimeter again and check electrical
continuity.
38 In this situation, continuity must not be present and there should be no movement of the digital multimeter
display.
39 Keep the cam K of the rod A1 in the same position and with the actuator button X1 of micro switch X
pressed, check operation of the micro switch Y.
40 Connect the plug on the red wire D1 to the terminal of the green and pink wires B4, position 4 of the
connector B.
41 Connect the plug on the black wire D2 to the terminal of the white wire B5, position 5 of the connector B.
42 Connect the opposite ends of the wires D1 and D2 to the digital multimeter and check electrical continuity.
43 In this situation, continuity must not be present and there should be no movement of the digital multimeter
display.
44 Now check the grey wire B2, connecting the plug of the wire D1 to the terminal of the grey and red wires B2,
position 2 of the connector B.
45 Connect the opposite ends of the wires D1 and D2 to the digital multimeter and check electrical continuity.

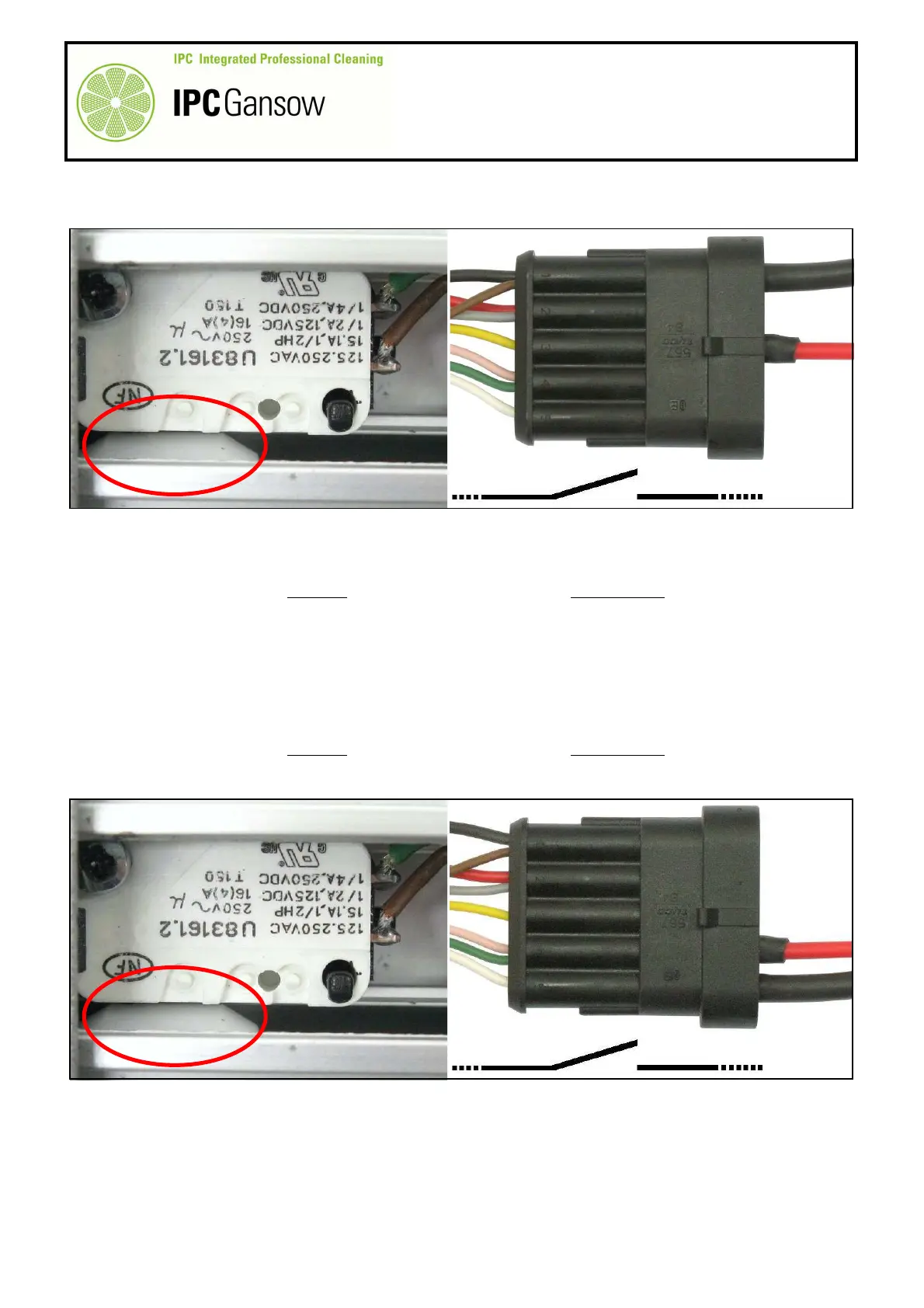

PHOTO 215
NO
D1
D2
B3
B1
K
B
X
X1
1 3
PHOTO 216
NO
D1
D2
B5
B4
K
B
X
X1
4 5
