You are recommended to check correct functioning of the “no water”/“no detergent”
LED on the control panel regularly. The float switch communicates that the
water/detergent has reached the reserve level to the control panel board (“Water
Reserve” is displayed). With a delay of about two (2) minutes, the control panel board
turns the reserve indication to the “no water”/“no detergent" indication, a “No Water”
message is displayed on the control panel display and the LED in the corresponding
icon lights up.
12
Proceed to check the wiring and operation of the circuit board.
13

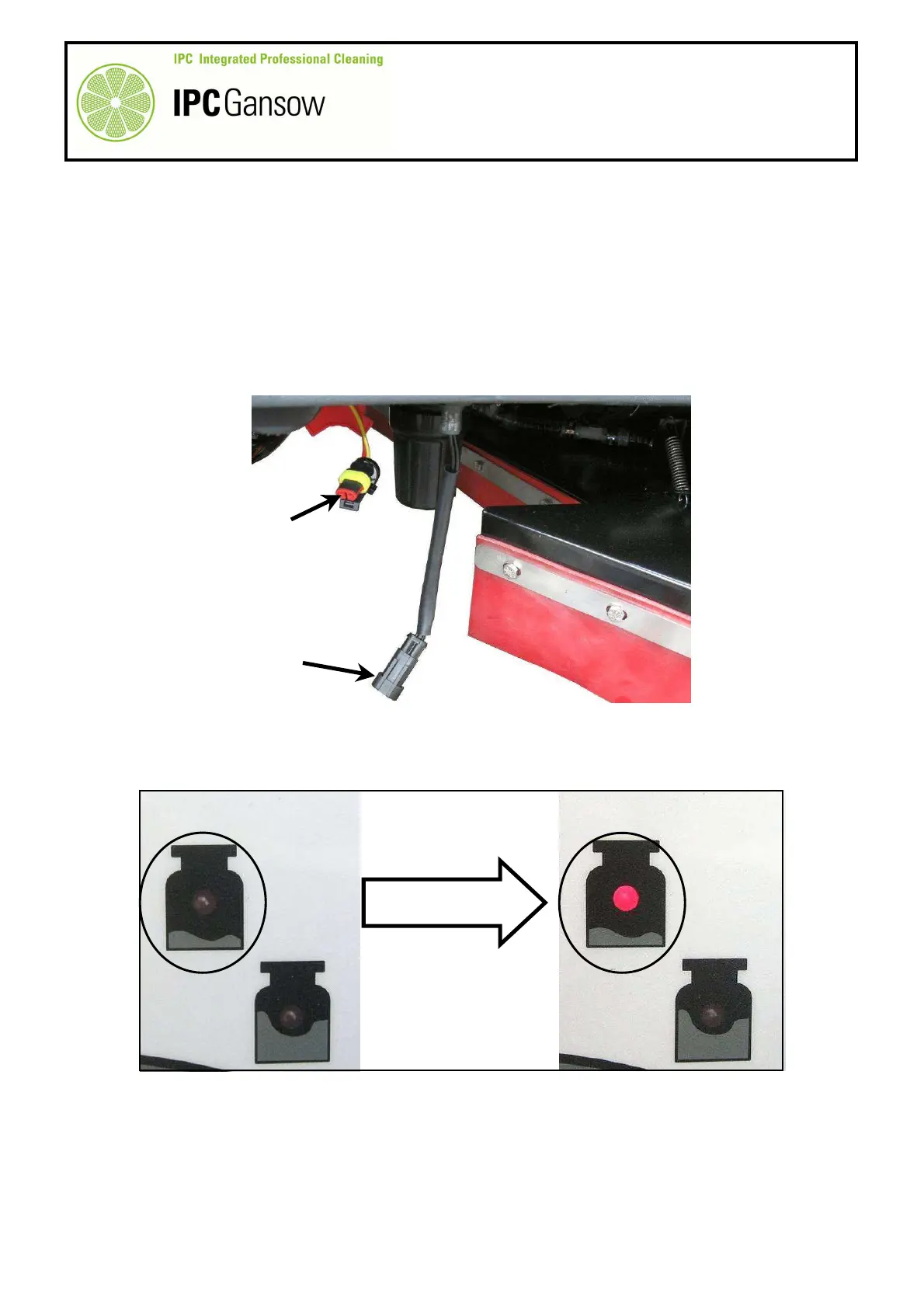

If not already disconnected, disconnect the female connector A of the float switch from the male connector B
in the main wiring.
14
Switch the machine on by turning the ignition key to position "1".
15
After the control panel board check, “WATER RESERVE” appears on the display and after about two minutes
(2), the circuit board replaces the message with the “NO WATER” message.
16
If the message is not displayed, check:
16a
That the float switch wiring on the machine is not in short circuit.
16b
That the voltage between pin 3 of the connector CN5 on the control panel board and the positive pole of the
batteries is equal to zero (0).
16c
That the control panel board does not need replacing.
16d
If only one LED does not come on, try replacing it or replace the entire control panel.
WATER RESERVE NO WATER
PHOTO 271
B
A
PHOTO 270
