PLDC01938
REVISION 00
01/06/2011
TECHNICAL DEPT.
Stavale
- date 05/09/2011
5/195
G
PHOTO 10
Make sure the detergent tank is not completely empty and that it contains sufficient
detergent for the tests.
Carry out the tests on an inconspicuous part of the floor, or where it is not important if you
leave marks (caused by the brushes rubbing).
14

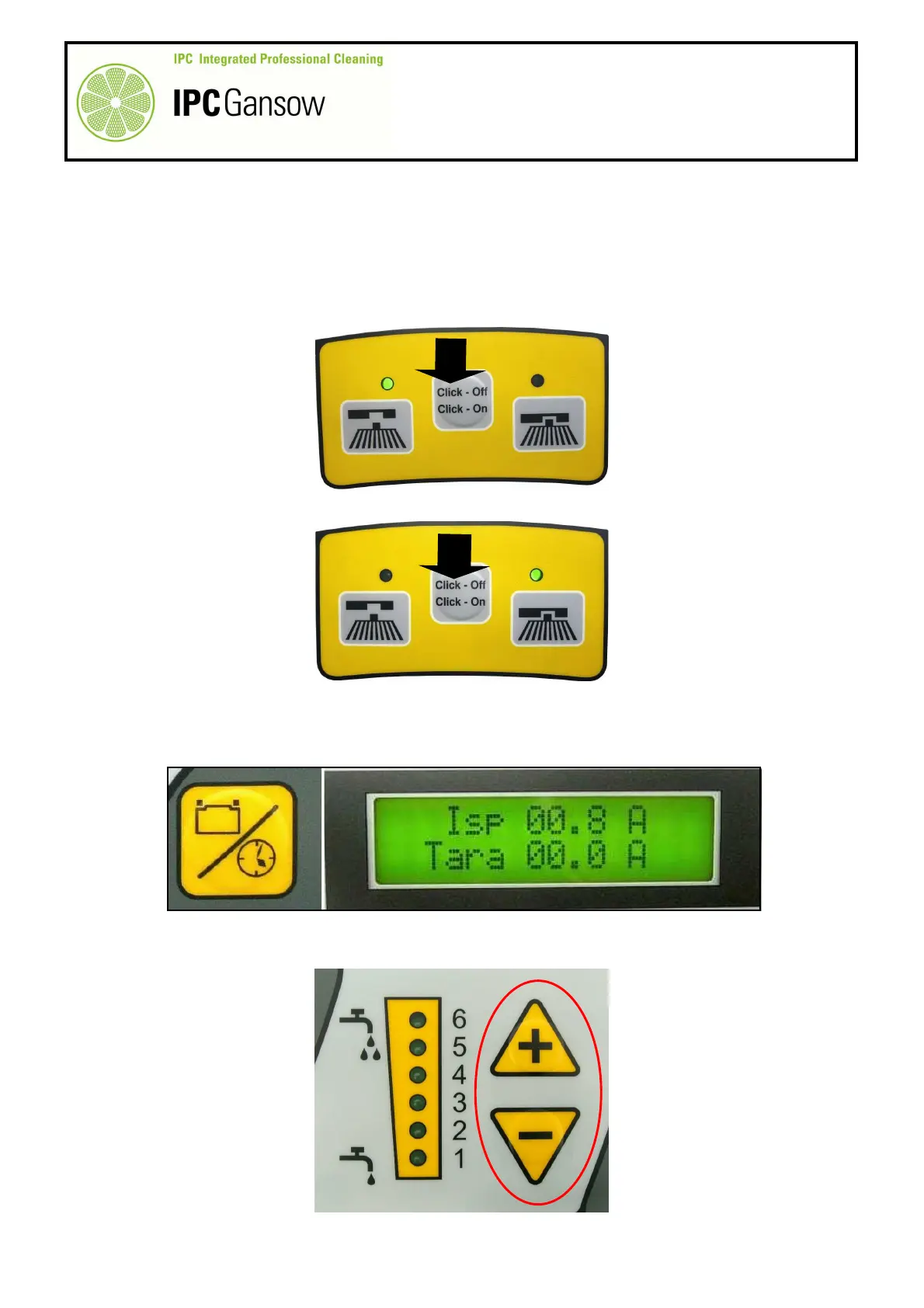

Check the draw of the brush motors without load, with the brushes removed.
15
Press the button F to release the brushes from the drive disks, the LED G will flash. At the end of the
operation, remove the brushes.
16
Press the button F to perform a brush attachment operation without attaching the brushes LED H will flash.
17
After the attachment phase (without attaching the brushes), LED off, press the display button C to scroll
through the menu. The display changes from the volts, to an indication of battery level, then finally the
current draw of the brushes (Isp - Tara).
18
Press the "+" and "-" buttons D to set water delivery to zero (all LEDs off) as water is not necessary for the
test.
PHOTO 12
C
PHOTO 11
D
