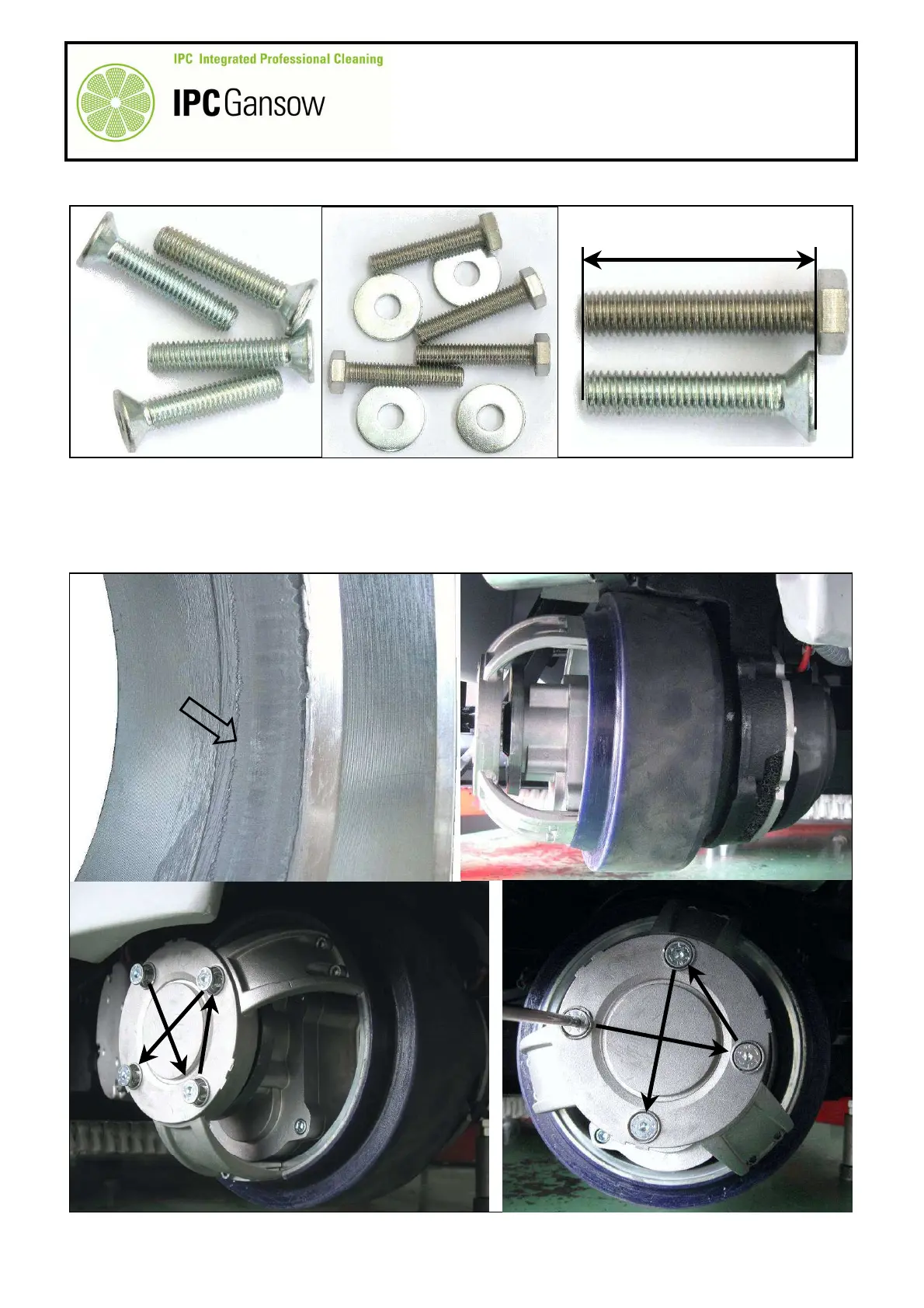

Obtain four (4) M8 screws C (C1 or C2) at least 40 mm long to be used as "introducers" for the new rubber
tyred ring A4.
6
Spread graphite grease on the raised aluminium part inside the rubber tyred ring A4.
7
Place the preassembled rubber tyred ring A4 on the motor wheel reduction unit and fit it on the bearing.
8
Position the four screws C irrespective of the type, using washers on the C2 screws to avoid ruining the
countersinking on the centring coupling A5.
9
Screw up all four screws a little in turn in order to fit the ring on the bearing without forcing.
Grease
A4
2
3
4
PHOTO 327
C1
PHOTO 326
C2
