Lift the air conveyor D1 to completely expose the metal band D5 protecting the four carbon brushes D6.
19
Mark the position of the metal band D5 on the motor D with a felt pen to facilitate positioning during
remounting.
20
Pull the plastic spring clip D7 outwards to remove the metal band D5 and check the carbon brushes D7.
21
Identify the spring D8 pressing the carbon brush D7 on the rotor D9. For convenience, operate on the
outermost carbon brush.
22
With a wire hook, lift the spring D8.
23
Remove the carbon brush D7 from its housing and measure the length.
D5
D
D1

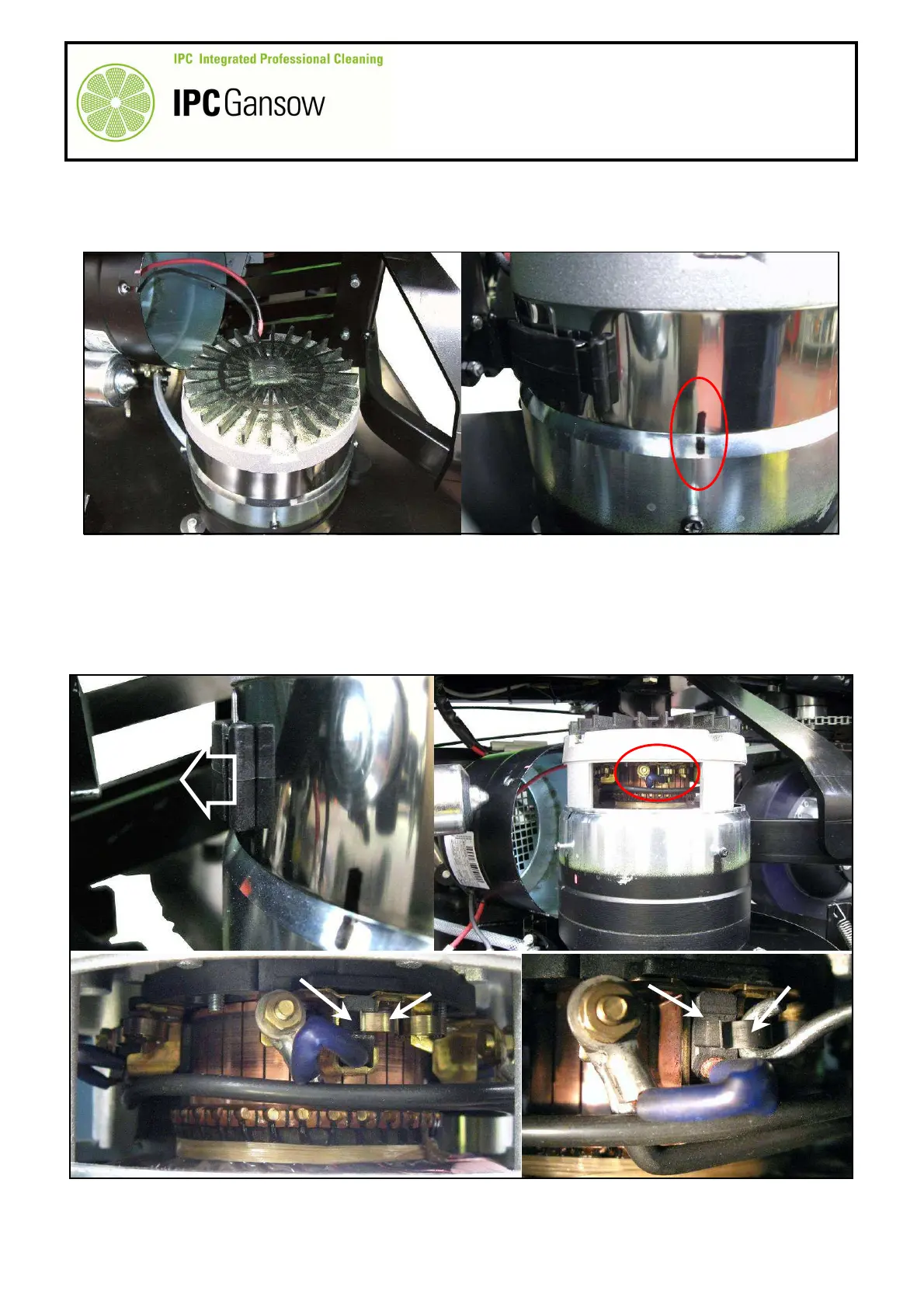

PHOTO 37
D8
D7
D7
D5
D7
PHOTO 38
