GENSET AND BATTERY PACK
4222983 Second Edition 3-33
3

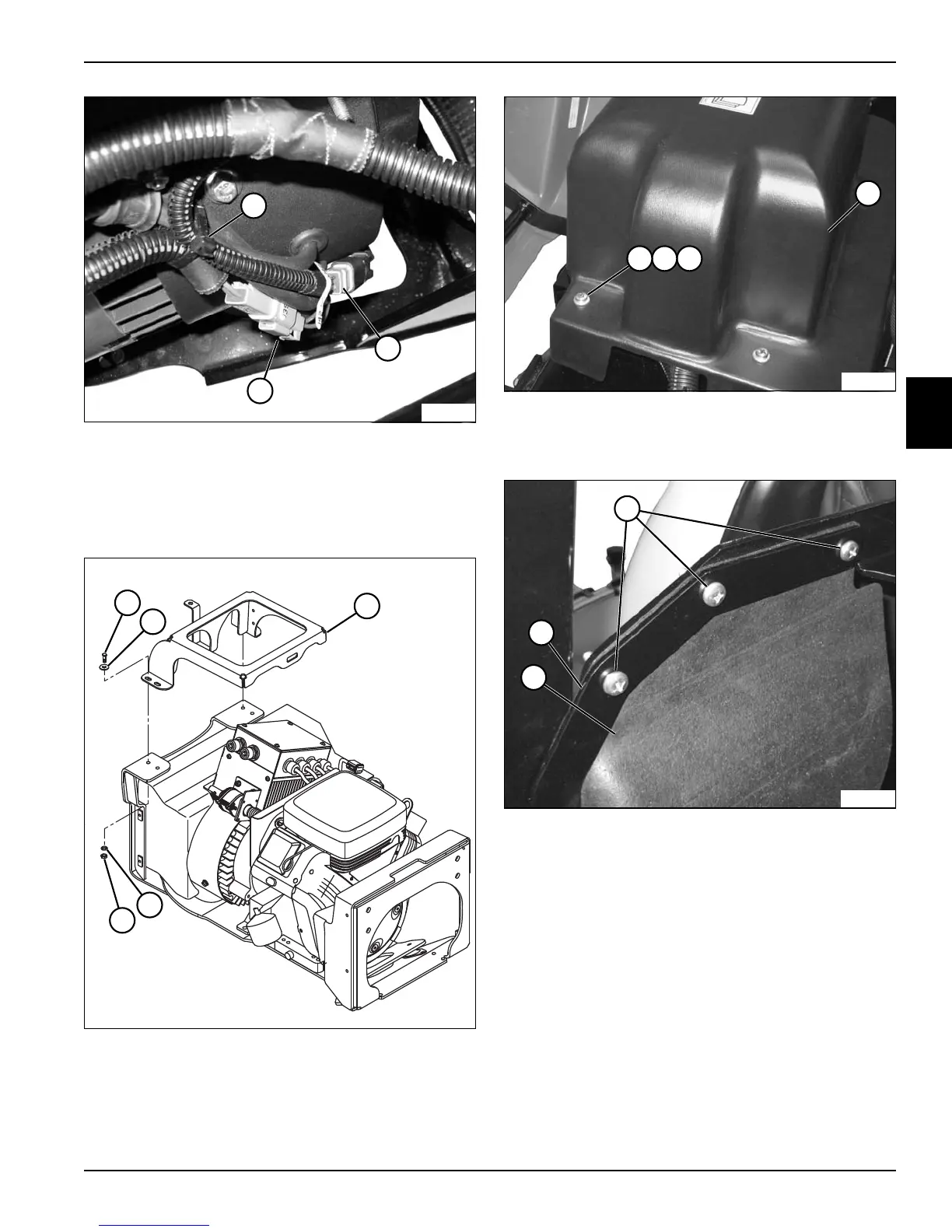

Figure 3-59
23. Tag and disconnect genset connector (17) and
genset fan connector (16).
24. Cut cable tie (15).
25. Move the wiring harness away from the genset.
Figure 3-60
26. Remove four screws (18), flat washers (19), flat
washers (21), nuts (22), and fuel tank bracket (20).
Figure 3-61
27. Remove four screws (23), flat washers (24), nuts
(25), and SCU cover (26).
Figure 3-62
28. Remove three screws (27), and remove the splash
shield flange (28) and splash shield (29).
29. Repeat step 28 for other side of machine.
TN2754
17
15
16
TNxxxx
TN2757
20
18
19
21
22
TN2756
26
252423
27
29
28
TN2709
