3-34 4222983 Second Edition
GENSET AND BATTERY PACK
3

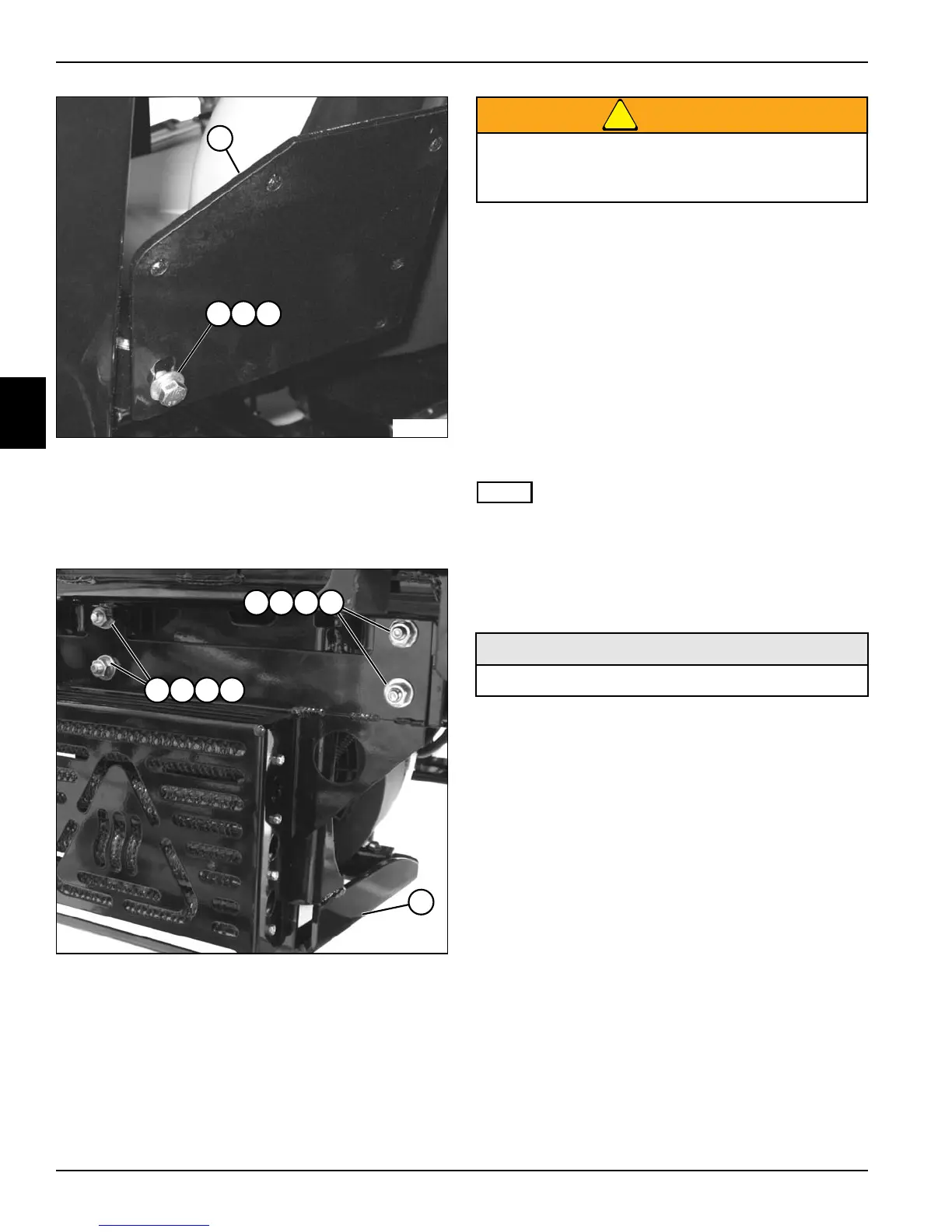

Figure 3-63
30. Remove screw (31), lock washer (32), and flat
washer (33).
31. Repeat step 30 for other side of machine, and
remove crossmember (30).
Figure 3-64
WARNING
32. Using an engine hoist, support the genset (38) and
remove nuts (34), lock washers (35), flat washers
(36), and screws (37).
33. Remove the resistor bank assembly and jumper
harness. (See “Resistor Bank Assembly and Jumper
Harness” on page 4-146.)
34. Repeat step 32 for other side of machine.
35. Check for any connected wires and components and
carefully remove the genset from the machine.
36. Place the genset on a suitable stand or workbench
that will support the full weight in a safe manner while
preventing damage to the genset.
NOTE
If the engine is being replaced, some components must
be removed and installed on the new engine. See the
“Parts and Maintenance Manual” for additional
information and illustrations.
Installation Notes
•I
• Inspect engine mounts and replace if necessary.
• Install the genset by reversing the order of removal.
• If necessary, remove components from the engine
and install the components on the new engine.
• Apply Loctite
®
242 (Blue) to eight genset carrier
mounting screws (37) prior to installation.
• Tighten genset carrier mounting screws (37) to 65.0
lb-ft (88 N·m).
• Use new gaskets when installing the exhaust system.
• Use new cable ties to secure wire connectors and
wire harnesses.
• Apply dielectric grease (Jacobsen PN 365422) to any
connectors removed.
• Replace the engine oil filter and fill engine with oil.
333231
30
TN2710
TN2719
36 373534
38
36 373534
Prevent personal injury. Use a properly rated
lifting device. Always be sure the load is
balanced before lifting.
Required Materials
Loctite
®
242 (Blue)
