Jacobsen Eclipse 322

GENSET AND BATTERY PACK
4222983 Second Edition 3-35
3
Disassembly and Assembly

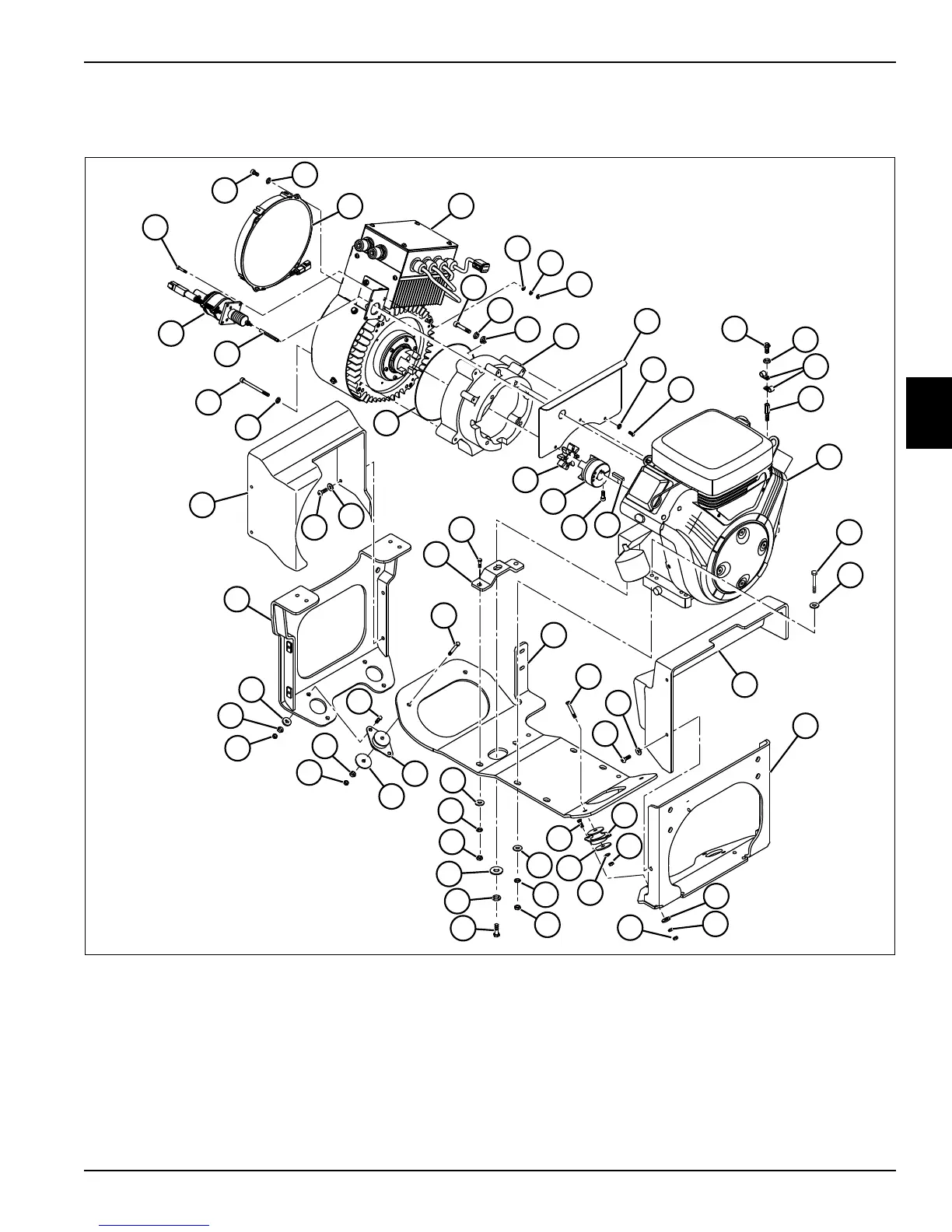

See Figure 3-65.
Figure 3-65
1 Screw 11 Flat Washer (4) 21 Key 31 Screw (7) 41 Lock Washer
2 Screw (2) 12 Mounting Flange 22 Screw 32 Flat Washer (9) 42 Screw
3 Lock Washer (4) 13 Heat Shield 23 Engine Coupler 33 Right Side Gas Cradle 43 Left Side Gas Cradle
4 Fan 14 Lock Washer (3) 24 Engine Coupler Element 34 Flat Washer (18) 44 Screw (4)
5 Gas Generator Assembly 15 Screw (3) 25 O-Ring 35 Lock Washer (18) 45 Engine Intake Duct
6 Flat Washer (4) 16 Screw 26 Gas Throttle Link 36 Nut (18) 46 Screw (4)
7 Lock Washer (4) 17 Flat Washer 27 Gas Throttle Actuator 37 Screw (8) 47 Engine Plate
8 Nut (4) 18 Hose Clamp (2) 28 Screw (4) 38 Isolation Mount (4) 48 Screw (2)
9 Screw (4) 19 Air Cleaner Stud 29 Lock Washer (4) 39 Snubber Washer (4) 49 Gas Genset Support
Bracket
10 Lock Washer (4) 20 Gas Engine 30 Generator Intake Duct 40 Flat Washer
TN2758
2
4
3
TN2758
5
9
12
13
10
11
6
7
8
14
15
20
17
19
18
16
21
22
23
24
25
29
28
30
31
32
33
34
35
36
37
38
39
35
36
32
48
49
43
34
36
31
46
46
47
44
27
1
36
35
39
37
38
34
45
34
35
36
40
41
42
34
35
36
26
35
