HYDRAULICS
SECTION 8I. TRACTION MOTOR
8I-3
8I

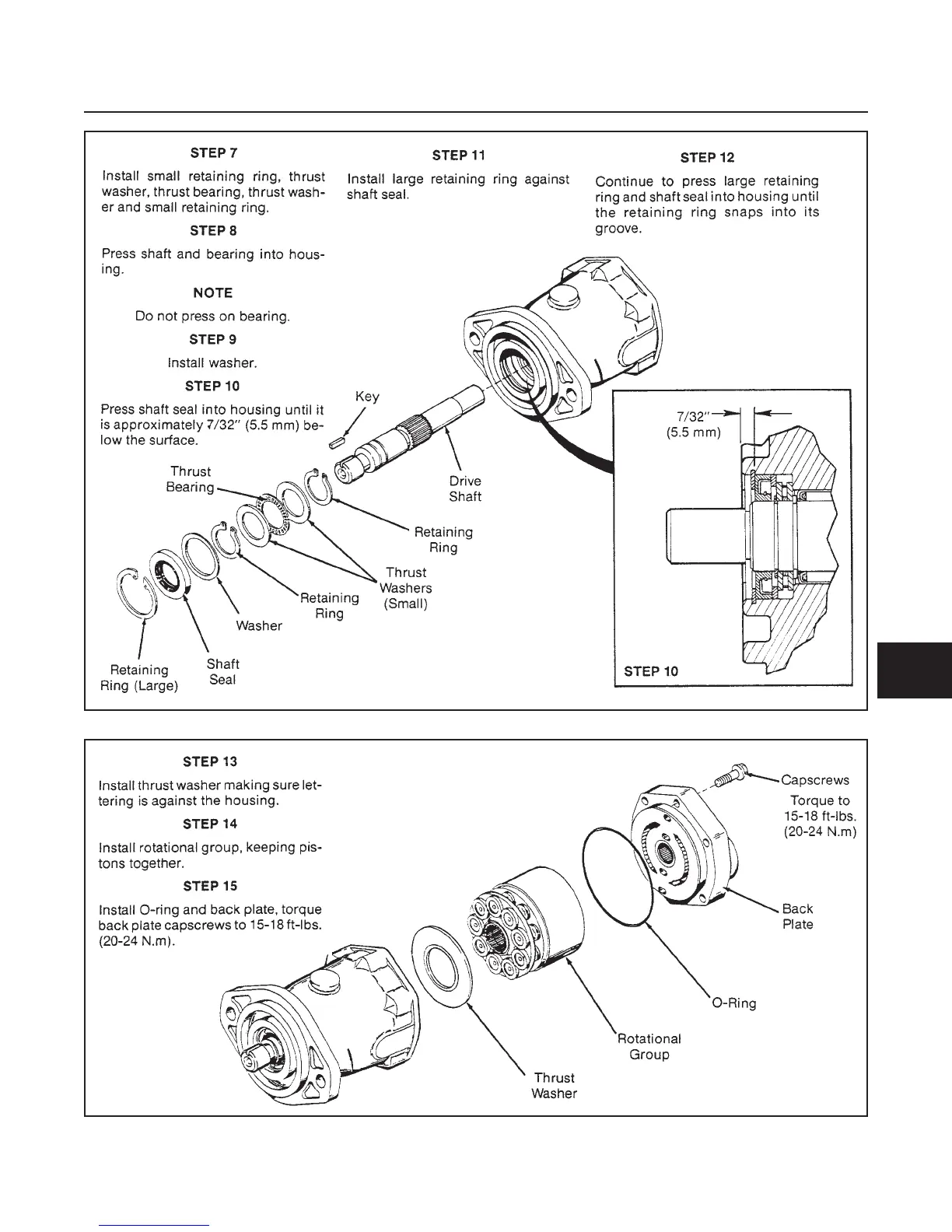

Figure 8I-4. Drive Shaft Reassembly
Figure 8I-5. Traction Motor Reassembly
