GENERAL
The mower motor control valves control oil flow to the
mower motors. It is a 2 position, 4 way open center
valve. The valve is solenoid operated. See Section
10I for solenoid test.
The following illustration shows one of the three valves.
REPAIR (See Figure 8M-1)
Repair of the valve consists of installing a new O-ring
kit for changing a coil.
1. Follow the sequence as illustrated to disassemble
the solenoid valve.
2. Keep all parts in proper order.
3. Wash and air dry parts.
HYDRAULICS
SECTION 8M. MOWER MOTOR CONTROL VALVE
8M-1
8M

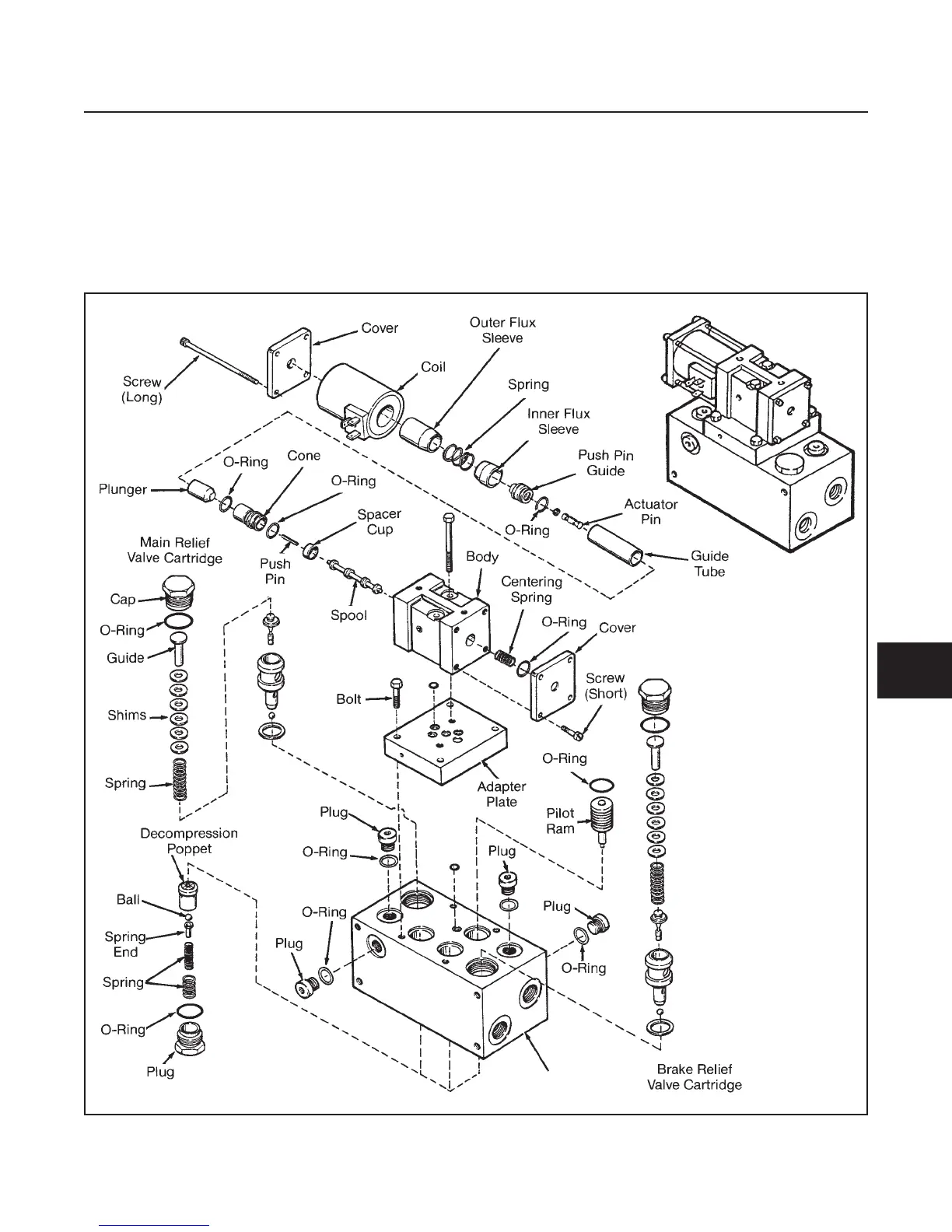

Figure 8M-1. Mower Motor Control Valve
