REPAIR
NOTE
Refer to Section 10G for test/repair of switches.
Repair of instruments is limited to replacement of faulty
components. See Figure 2D-1 and replace faulty com-
ponent as follows:
1. Remove fuel tank to gain access.
2. Disconnect battery ground (black) cable.
3. Label wires for proper identification and discon-
nect wiring.
4. Remove attaching hardware and replace faulty
instrument.
5. Connect wiring.
6. Connect battery ground cable.
CONTROLS
SECTION 2D. GAUGES AND INSTRUMENTS
2D-1
2D

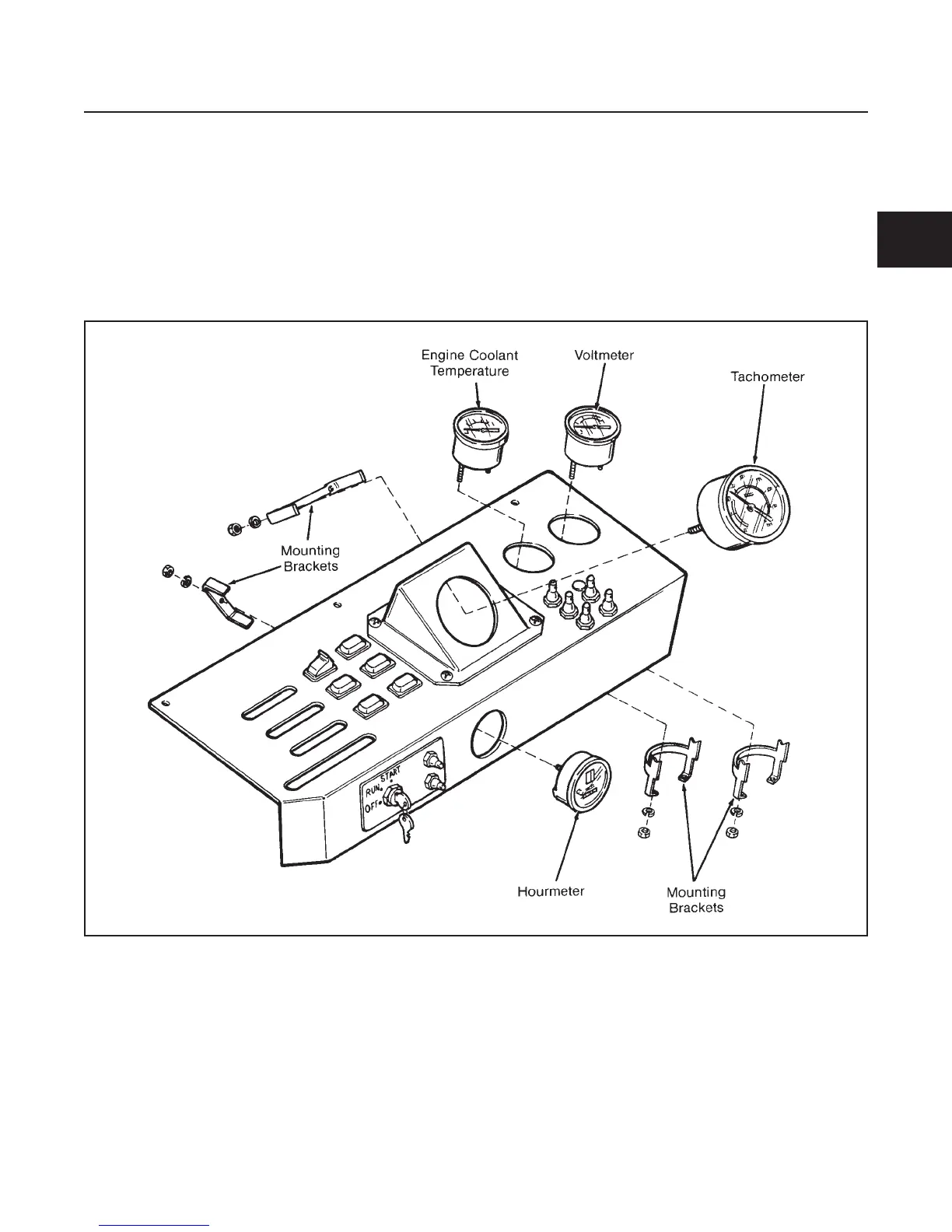

Figure 2D-1. Gauges and Instruments Removal and Replacement
