GENERAL
The power steering unit is supplied with oil from the
pump, Section 3. Power steering is provided as long
as the engine is running. If an engine failure occurs,
the steering unit provides manual steering.
REMOVAL (See Figure 6C-1)
1. Remove steering wheel cap (1), nut (2), flat wash-
er (3) and steering wheel (4).
NOTE
Insert (5) should come off with steering wheel.
2. Remove steering unit cover (6).
3. Label and remove hydraulic lines from steering
unit.
4. Remove steering unit attaching hardware and steer-
ing unit.
STEERING
SECTION 6C. STEERING UNIT
6C-1
6C

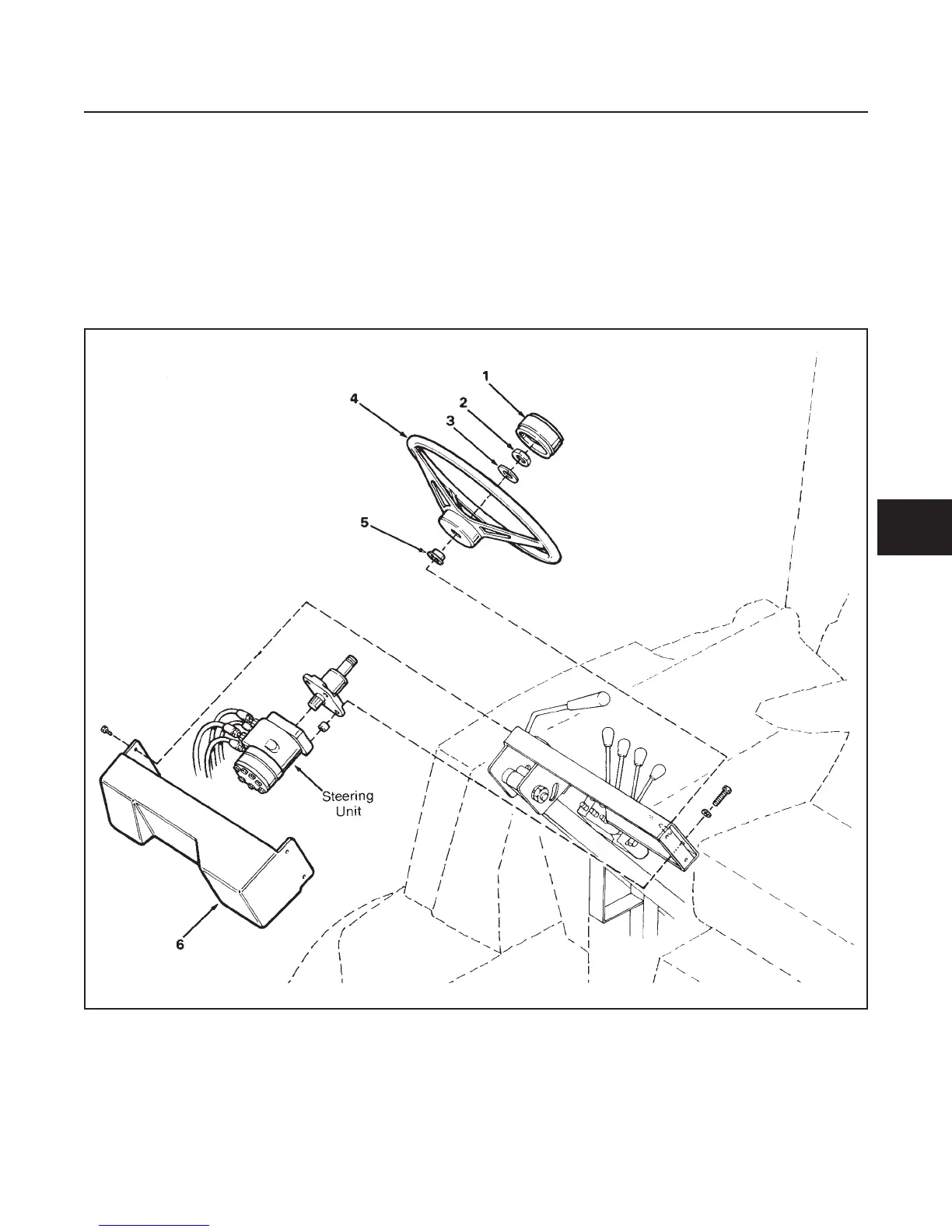

Figure 6C-1. Steering Unit Removal and Installation
