REASSEMBLY (See Figure 4E-4)
1. Support the inner race of the bearing cone. Press
input shaft into bearing cone, taper toward the
inside.
2. Press bearing cups, tapers to the outside, into
housing.
3. Install input shaft and bearing into housing.
4. Install collapsible sleeve and press bearing cone
against sleeve.
5. With the bearing inner race supported, press out-
er bearing cone into housing until it just contacts
the collapsible sleeve, be careful not to collapse
the sleeve.
6. Install O-ring in spacer. Install spacer, O-ring goes
against bearing, on the shaft.
7. Install elastic nut, do not tighten. Proceed with
Break-Away Torque Adjustment, Steps 1 and 2.
DRIVE TRAIN
SECTION 4E. AXLE
4E-4

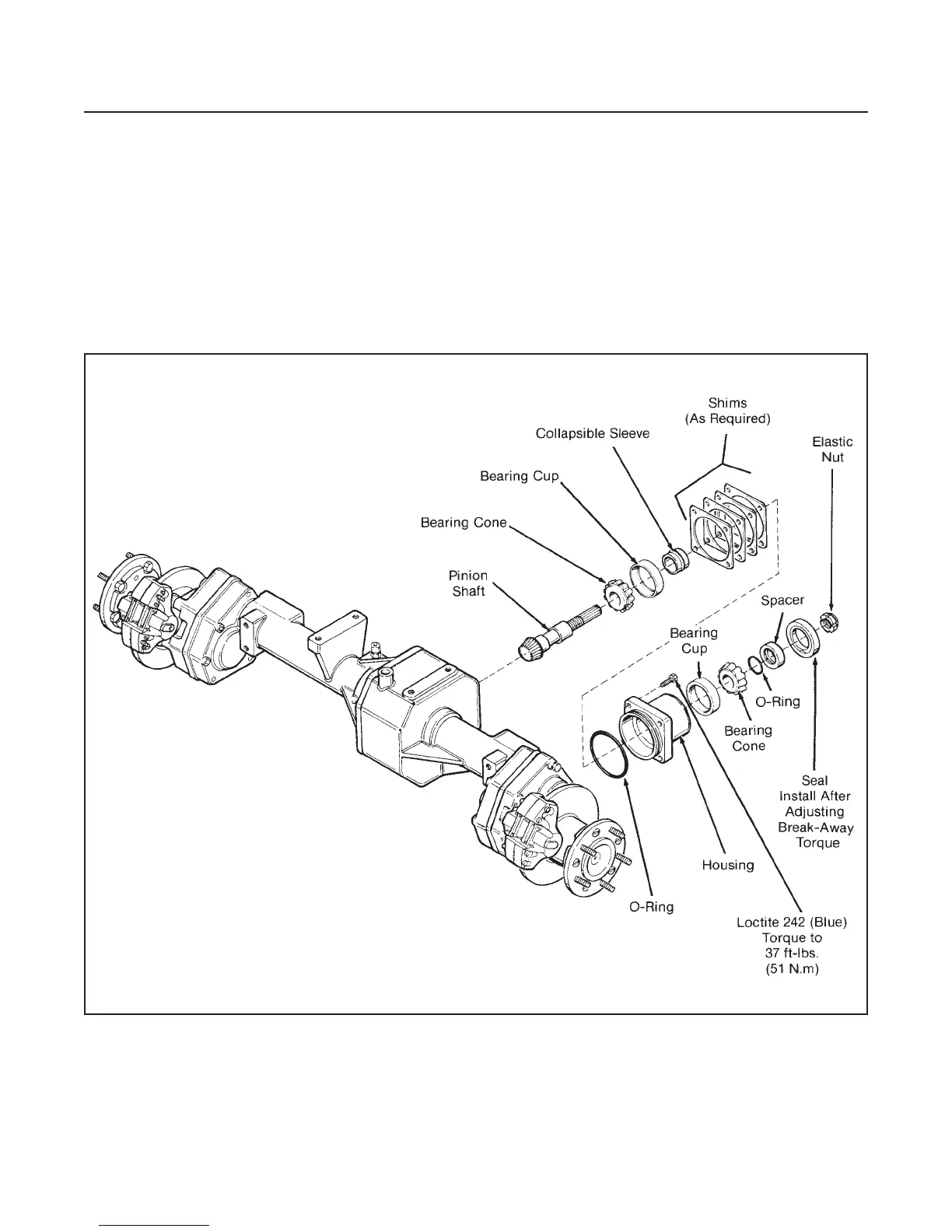

Figure 4E-4. Input Bevel Pinion Reassembly
