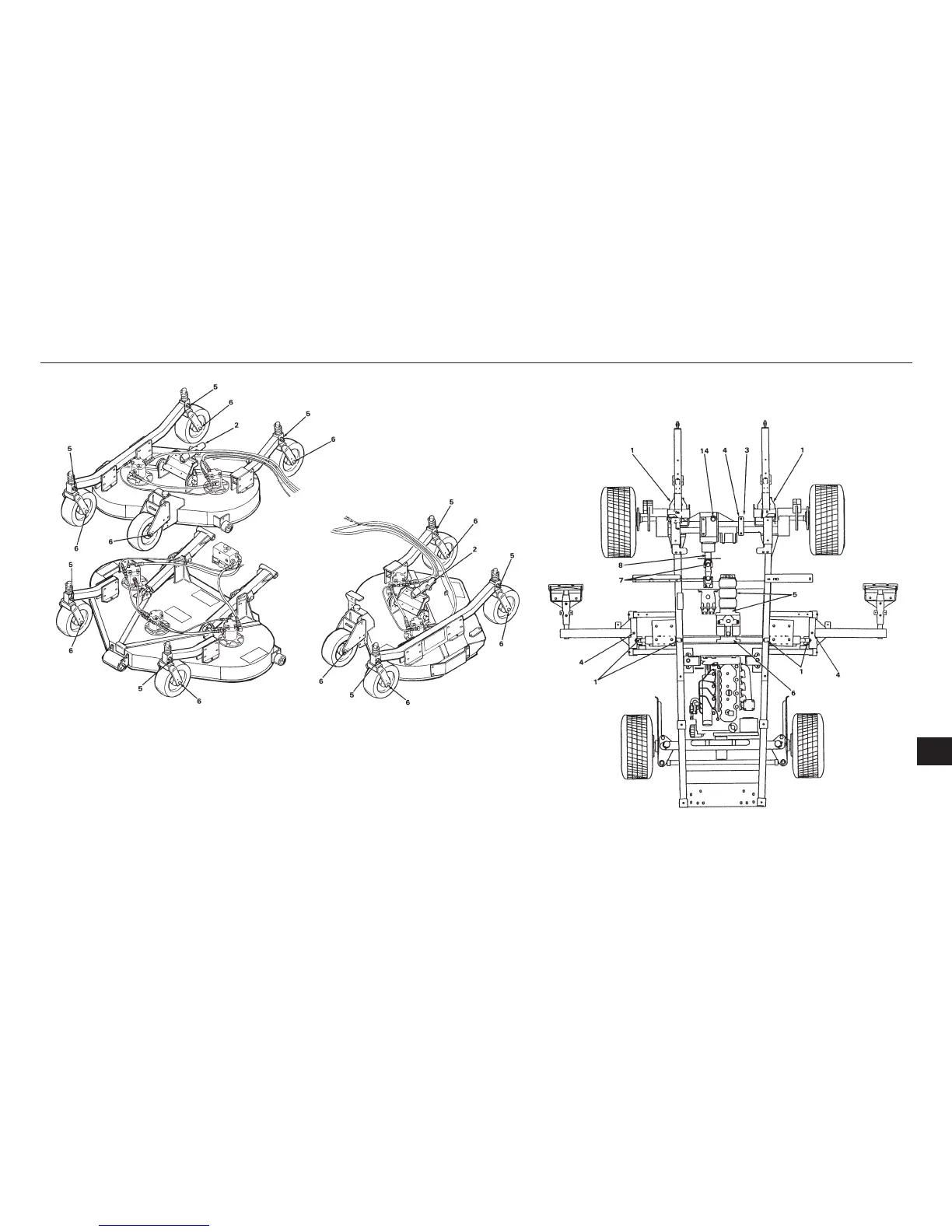

PREVENTIVE MAINTENANCE
SECTION 11C. MAINTENANCE SCHEDULES
11C-3
11C
FOOTNOTES
a Use pressure gun grease (NLGI Grade 0). Apply with grease gun.
b Use hand grease gun (NLGI Grade 0).
c System capacity: 20 gallons. Jacobsen hydraulic oil. Part No. 502696 carton containing two 2-1/2 gallons (9.5 liters) bottles or Part No.
502693, pail containing 5 gallons (19 liters).
d Capacity: 9 quarts. Use MIL-L-214OC or API Classification CC/CD/CE/Grade oil.
Recommended Oils:
Above 77°F use SAE 30
32°F to 77°F use SAE 20
Below 32°F Use SAE 10 or SAE 10W-30
e System capacity: 8 oz. heavy duty brake fluid 116-DOT-3.
f System capacity: 2-1/2 gallons (9.5 liters). Water and ethylene glycol.
g System capacity: 2 quarts. 90 wt. gear lube.
h Coat liberally with Molybdenum disulfide E.P. grease annually or when being serviced.
i WD40.
j Service as indicated by the performance monitor light.
k Use 90 weight gear lube. Extremely high temperature, use 140 weight gear lube.
