TRACTION PEDAL (See Figure 2C-2)
The traction pedal controls travel direction and speed.
The traction pedal is connected by linkage to the hy-
drostatic pump. Depending on which way the pedal is
depressed, it controls “forward” or “reverse”. Repair of
the traction pedal and linkage is limited to replacement
of damaged or worn parts and adjustments.
CONTROLS
SECTION 2C. CONTROL ADJUSTMENTS
2C-2

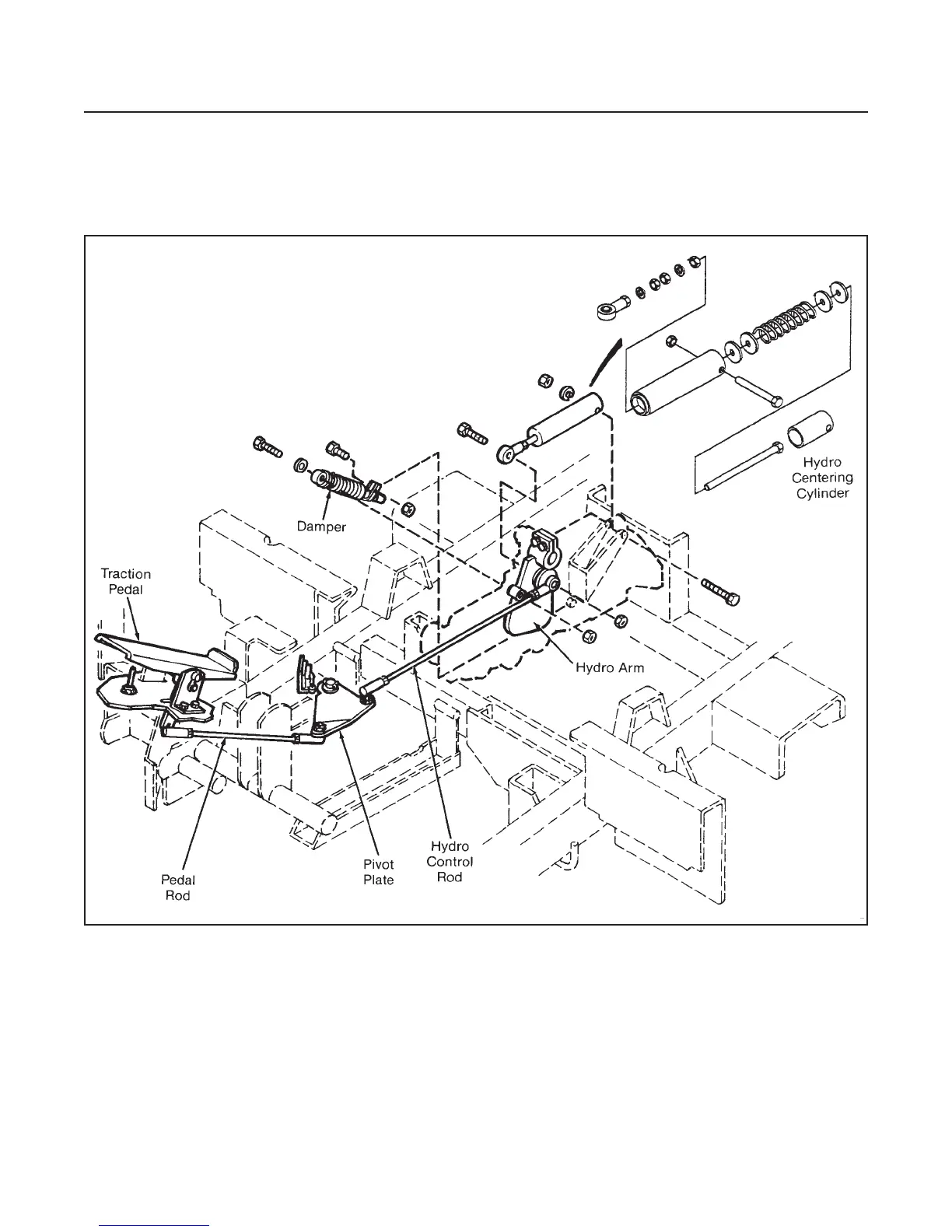

Figure 2C-2. Traction Pedal and Linkage
