GENERAL
The drive axle is driven by a telescoping universal
joint type drive shaft connected directly between the
hydro motor and axle.
NOTE
When removing, do not bend or damage the disc
plate surface.
SERVICE
DISASSEMBLY (See Figure 4D-1)
1. Remove drive shaft assembly from tractor.
2. Position the joint in a vise as shown.
3. Remove the four snap rings.
4. With a soft face hammer, strike the top ear of the
yoke. This will drive the top bushing outward 3/8".
5. Grip the loose bushing in the vise and drive the
yoke off the bushing.
6. Repeat Steps 3 and 4 for the remaining bushings.
DRIVE TRAIN
SECTION 4D. AXLE DRIVE U-JOINT
4D-1
4D

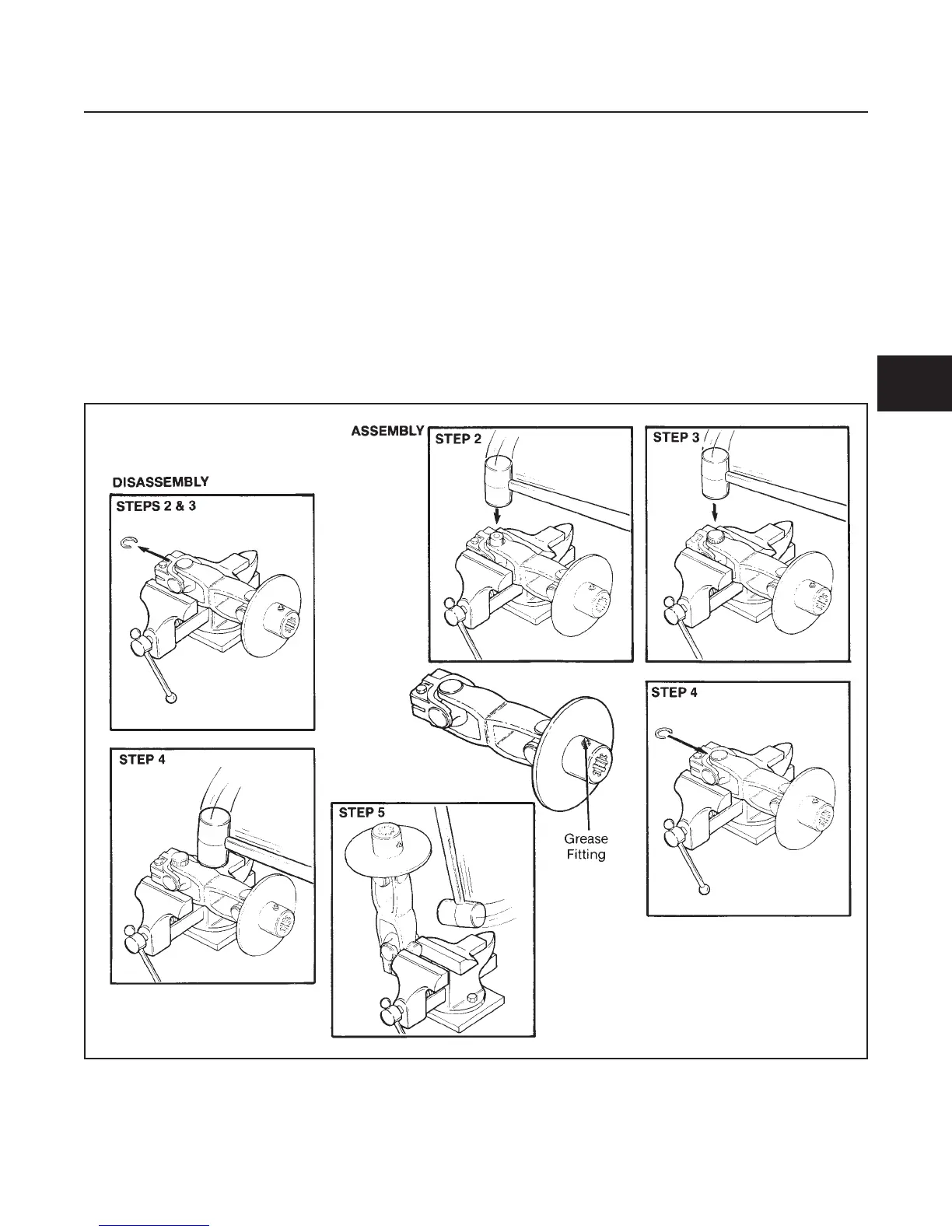

Figure 4D-1. Drive Shaft
