GENERAL
A separate engine operator’s manual, prepared by the
engine manufacturer is supplied with your tractor. Study
the manual carefully until you are familiar with the main-
tenance, operation and adjustment of your equipment.
Proper attention to the engine manufacturer’s direc-
tions will assure maximum service life of the engine
and highest operating efficiency.
AIR CLEANER (See Figure 3D-1)
Perform Step 1 daily or as needed. Perform Steps 2–5
when the “Air Filter” light on the monitor panel comes
on.
1. Loosen the retaining clamp (1) and slide the cover
(2) off of the air cleaner assembly. Remove the
baffle (3) and empty dust from the cover. Wipe
clean with a clean damp cloth.
NOTE
It is not recommended to remove element to clean.
If element is to be removed, replace with a new
one.
2. Remove the swing nut and gasket (4), and slide
the element (5) out of assembly.
NOTE
If a new element is installed, use a new gasket
(4).
3. Install the element (5). Install the wing nut and gas-
ket (4).
4. Install the baffle (3) in cover (2) making sure open-
ing is up.
5. Secure cover (2) with retaining clamp (1).
SECTION 3D. DIESEL ENGINE
3D-1
3D
GENERAL
DO NOT USE STARTING ASSIST FLUIDS. Use
of starting assist fluids in the air intake system
may be potentially explosive or cause a “RUN-
AWAY” engine condition. This could result in
serious engine damage and/or personal injury.

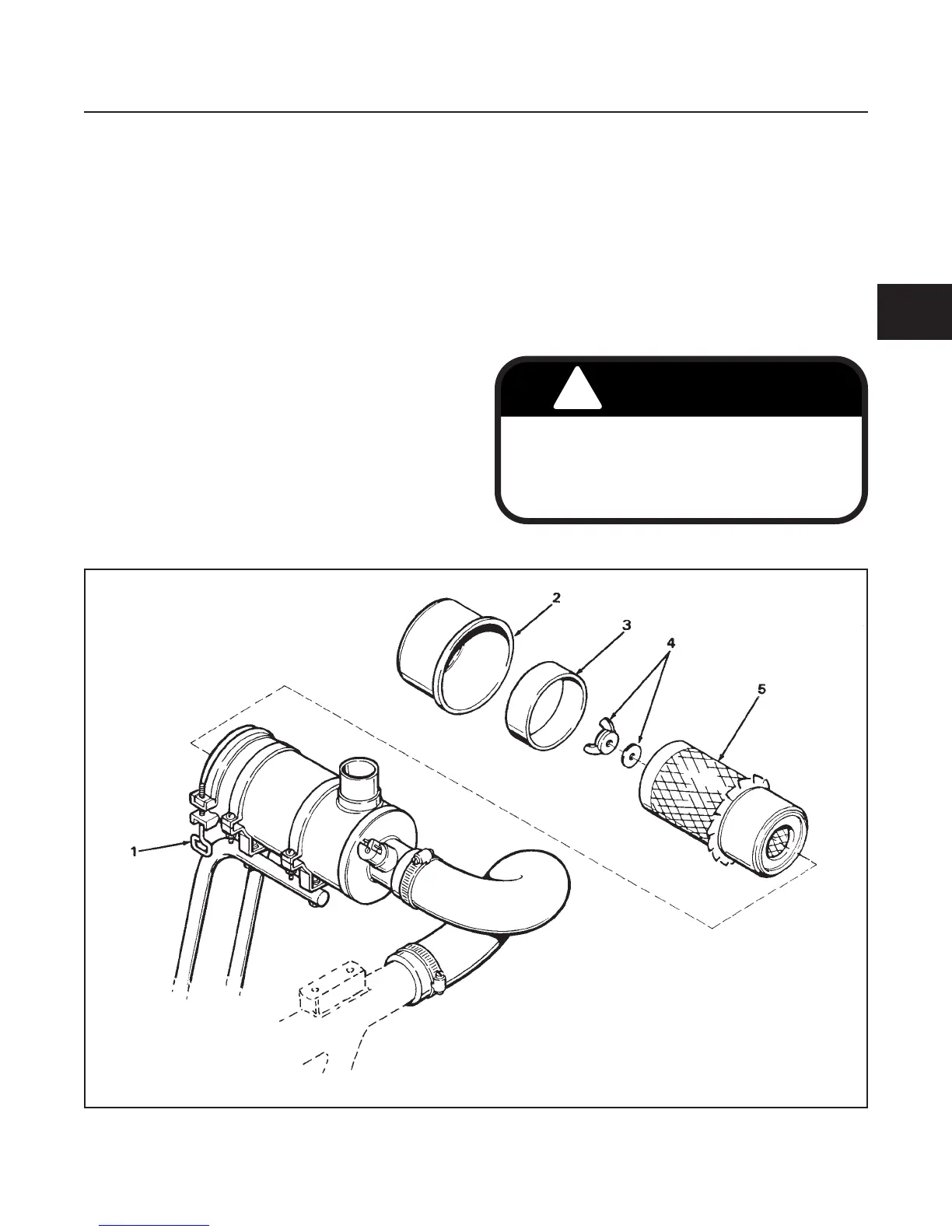

Figure 3D-1. Air Cleaner Service
