BRAKE SWITCH TEST
WING MOWER SHUT-OFF SWITCH TEST
PARKING BRAKE SWITCH TEST
REVERSE SENSING SWITCH TEST
(LATER) (See Figure 10G-13)
NOTE
Before testing, check to see if the switch is just
out of adjustment. See Section 2C for adjustment
procedures.
1. Remove the wires from the switch.
2. Set multimeter to 200 Ω (ohms) scale.
3. Connect leads to switch as shown.
•
There should be no continuity through the switch.
4. Actuate switch (push button down).
•
There should be a reading of 0–0.5 Ω (ohms) at
multimeter.
Replace a switch that does not meet all the above
test results or has resistance of 0.5 Ω (ohms) or more.
ELECTRICAL SYSTEM
SECTION 10G. SWITCHES
10G-13
10G

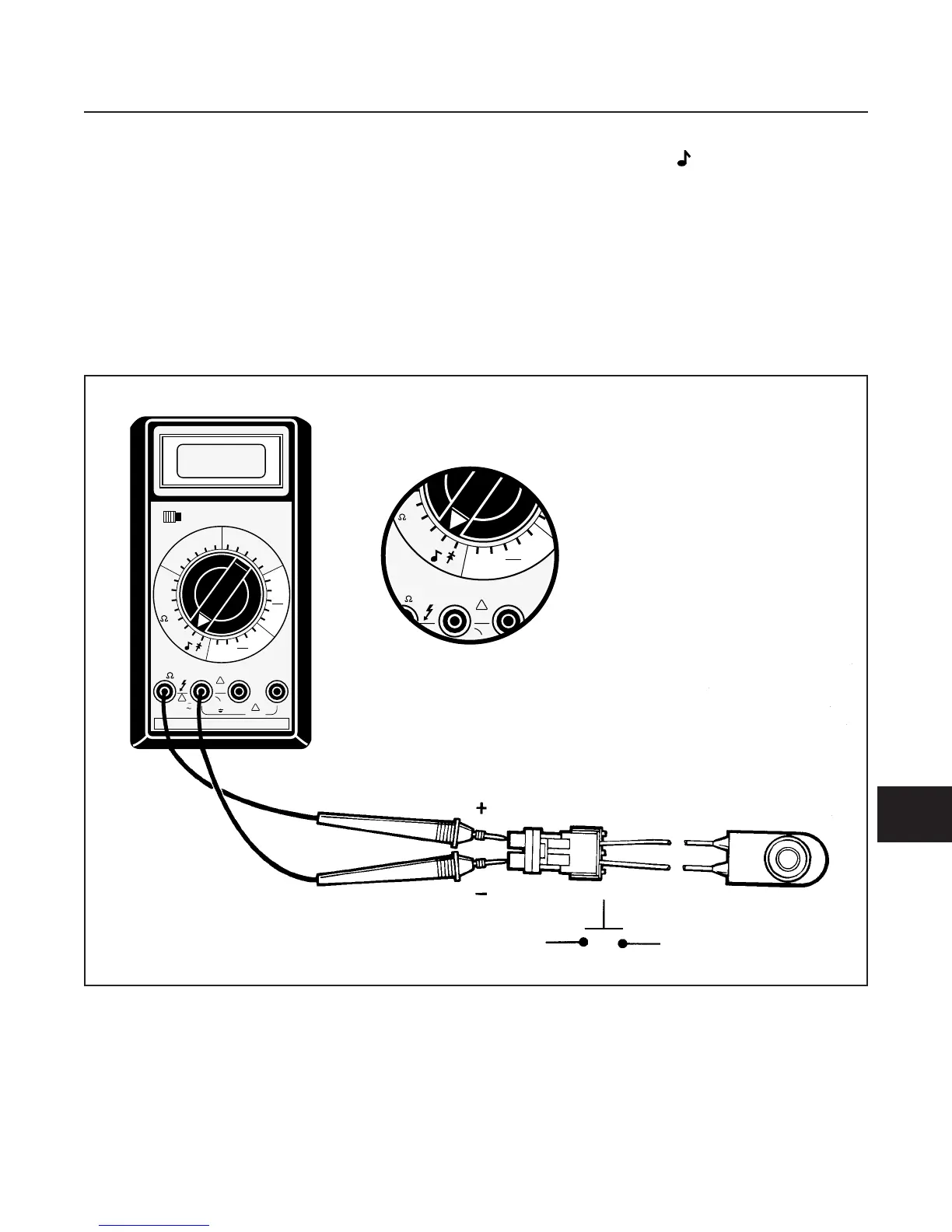

Figure 10G-13. Brake, Mower Shut-Off and Parking Brake Switch Test
