Jacobsen HR5111 User Manual

SEAT DELAY RELAY TEST
(See Figure 10H-3)
1. Connect white and brown wires to +12 VDC (Bat).
2. Leave black wire grounded or connect to BAT NEG
(–) terminal, if relay is removed from machine.
3. Set DMM to 20 VDC.
4. Connect red lead from DMM to yellow wire and
black lead to ground NEG (–) terminal at battery.
•
The DMM should read 12 volts. If not, replace
relay.
5. Disconnect white wire from +12V (Bat).
•
After a 1 to 2 second delay, voltage reading on
DMM should drop out, if not, replace relay.
ELECTRICAL SYSTEM
SECTION 10H. RELAY
10H-3
10H
POWER
OFF ON
200m
2
20
200
1000
750
200
20
2
200m
20M
2M
200M
20K
2K
200
200
DCV
ACV
ACA
200µ
2m
200m
2
2
200m
20m
10A
2m
200µ
DCA
20m
10A
COM A 10A
!
1000V
750V
MAX
!
!
2A
MAX
10A MAX
500V
MAX
OEM 1428
200m
2M
ON
20M
200M
20K
2K
200
200
OWER
OFF
200m
2
20
200
1000
750
200
20
2
DCV
V -

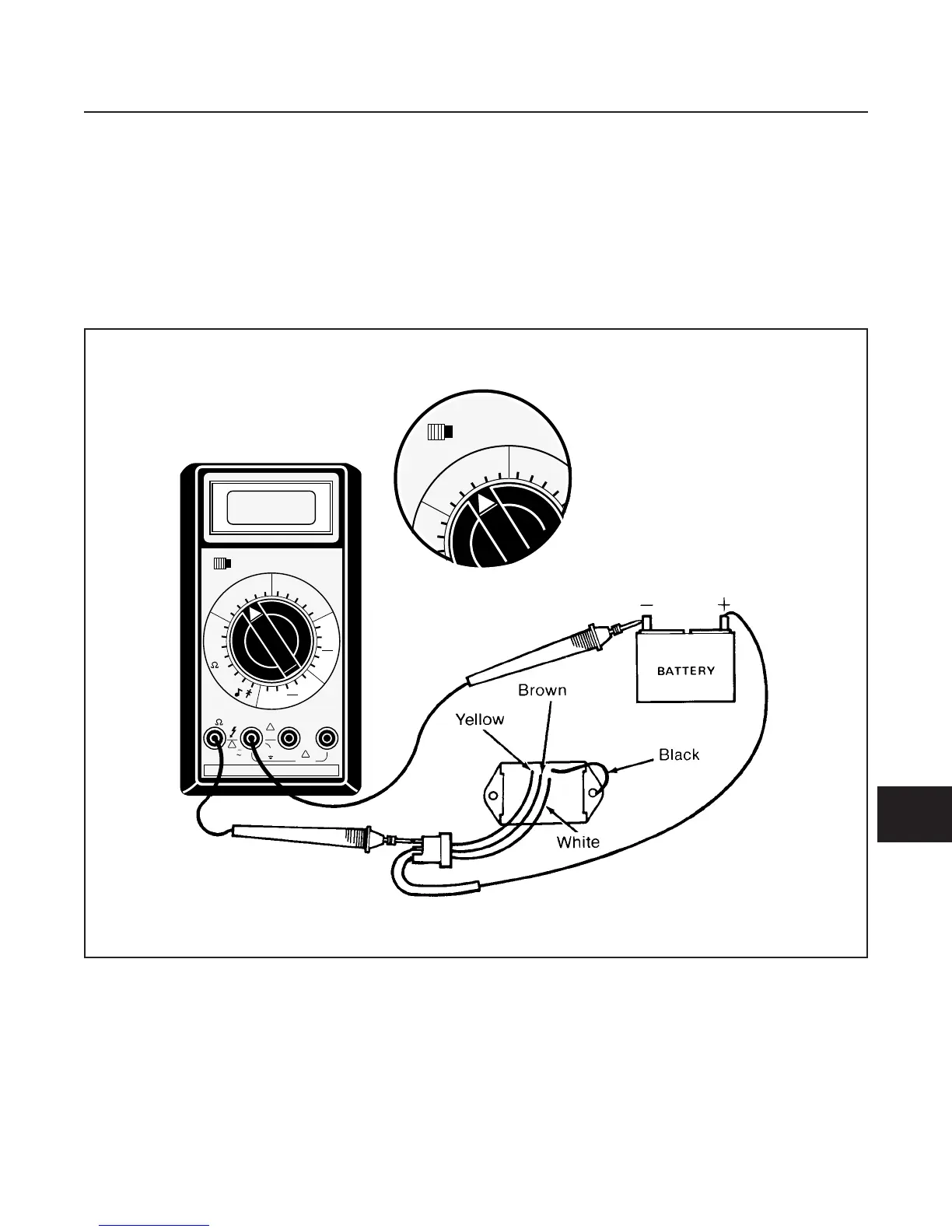

Figure 10H-3. Seat Delay Relay Test
