GENERAL
The lift and lower control valve is used to raise and
lower the cutting units. Left control is for the left wing.
Right control is for the right wing. Center control is for
the three front cutting units.
REMOVAL
1. Drain and remove the fuel line.
2. Tag and mark hydraulic lines on valve.
3. Remove hydraulic lines.
4. Disconnect lever linkage and remove.
5. Remove valve.
DISASSEMBLY
See Figures 8H-2 to 8H-4.
HYDRAULICS
SECTION 8H. LIFT AND LOWER CONTROL VALVE
8H-1
8H

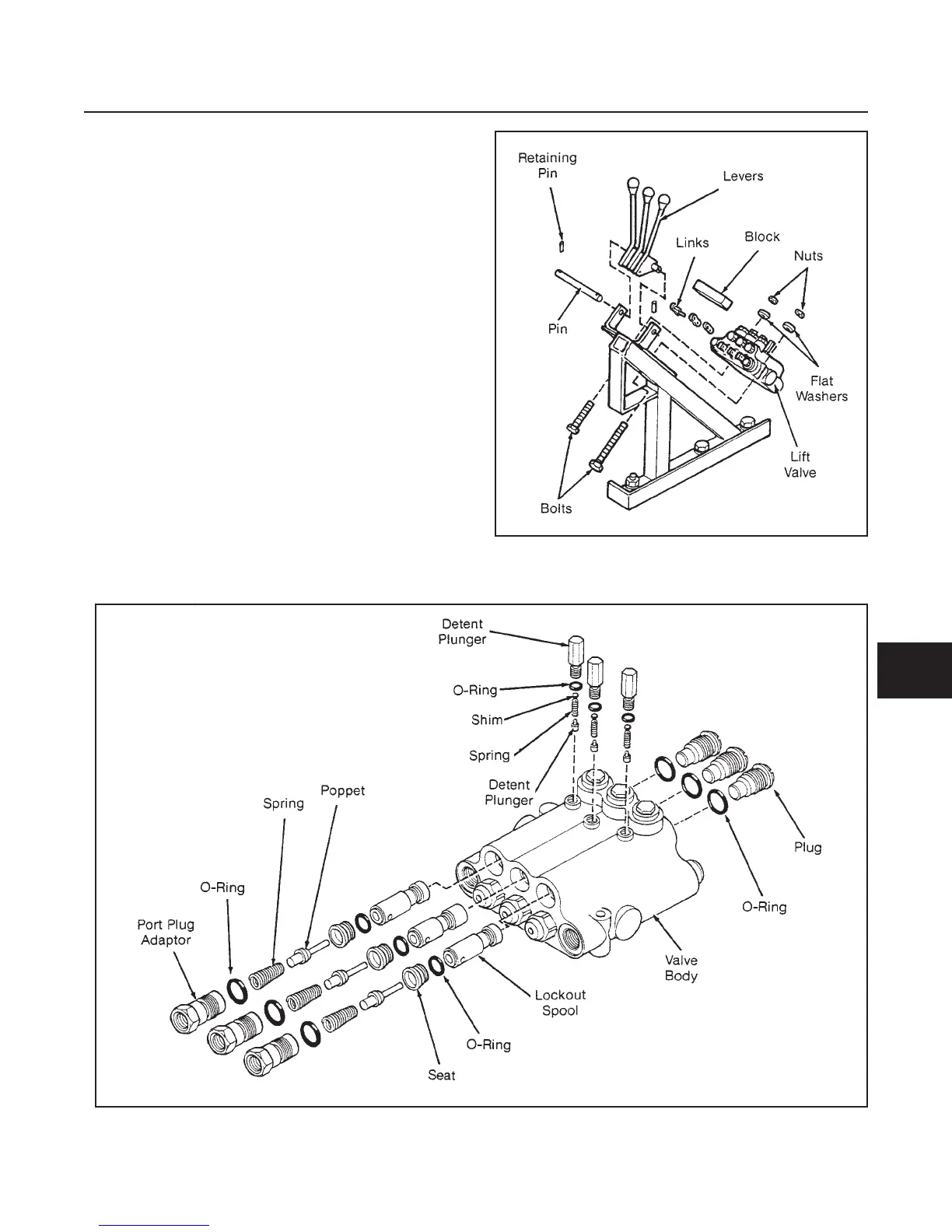

Figure 8H-1. Lift and Lower Valve Removal
Figure 8H-2. Detent and Lockout Assembly Removal
