ENGINE INSTALLATION
(See Figures 3D-6 to 3D-8)
1. Move the engine onto its approximate mounting
position using a chain hoist.
2. Line up holes in hydrostatic pump drive plate with
engine flywheel. Install bolts (1) and lockwashers
(2). Torque to 37 ft-lbs. (51 N.m).
3. Slide engine forward, align and loosely attach all
bolts (4), lockwashers (5) and flat washers (6) that
secure the engine to the frame.
4. Install the radiator shroud and exhaust pipe as
described in preceding paragraphs of this section.
5. Tighten mounting bolts (4) after all have been
installed.
6. Connect and adjust the throttle control (see Sec-
tion 2 of this manual and Figure 3D-6).
7. Connect all electrical connections to the engine
(see Section 10 for location and testing).
8. Install air cleaner and support rods.
ENGINE
SECTION 3D. DIESEL ENGINE
3D-6

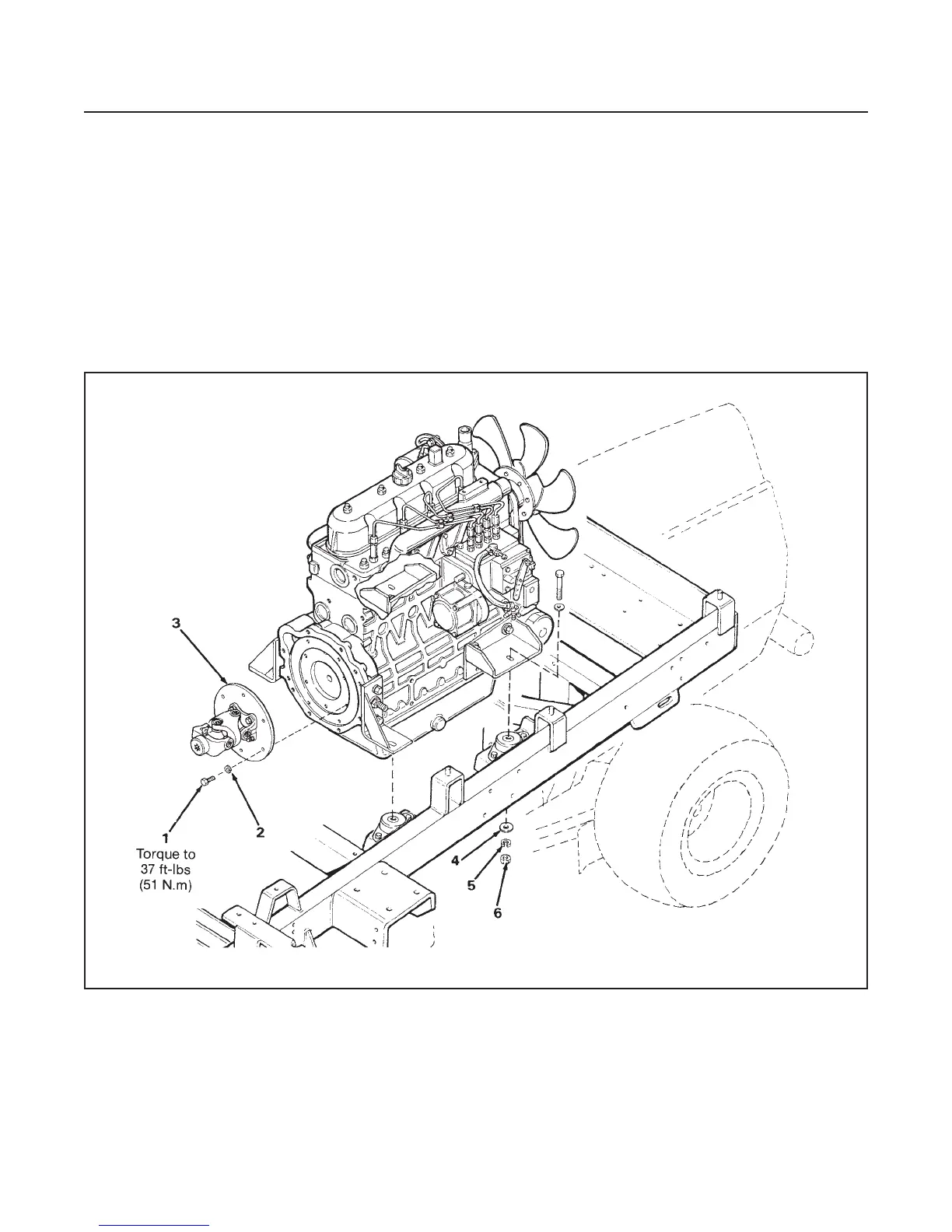

Figure 3D-8. Engine Installation
