CIRCUIT BREAKER TEST
See Figure 10J-1 and test circuit breaker as follows:
1. Set multimeter to 200 Ω (ohms) scale.
2. Connect meter leads to terminals as shown.
•
With the circuit breaker open (tripped) there should
be no continuity on the meter scale.
3. Depress button (close).
•
There should be a reading (continuity) on meter
scale.
Replace a circuit breaker that does not meet these
test results.
ELECTRICAL SYSTEM
SECTION 10J. CIRCUIT BREAKERS AND FUSE
10J-1
10J
POWER
OFF ON
200m
2
20
200
1000
750
200
20
2
200m
20M
2M
200M
20K
2K
200
200
DCV
ACV
ACA
200µ
2m
200m
2
2
200m
20m
10A
2m
200µ
DCA
20m
10A
COM A 10A
!
1000V
750V
MAX
!
!
2A
MAX
10A MAX
500V
MAX
200m
2
20
200
1000
750
200
20
2
200m
20M
2M
200M
20K
2K
200
200
DCV
ACV
ACA
200µ
2m
200m
2
2
200m
20m
10A
2m
200µ
DCA
20m
10A
- COM A
!
2A
MAX
V -

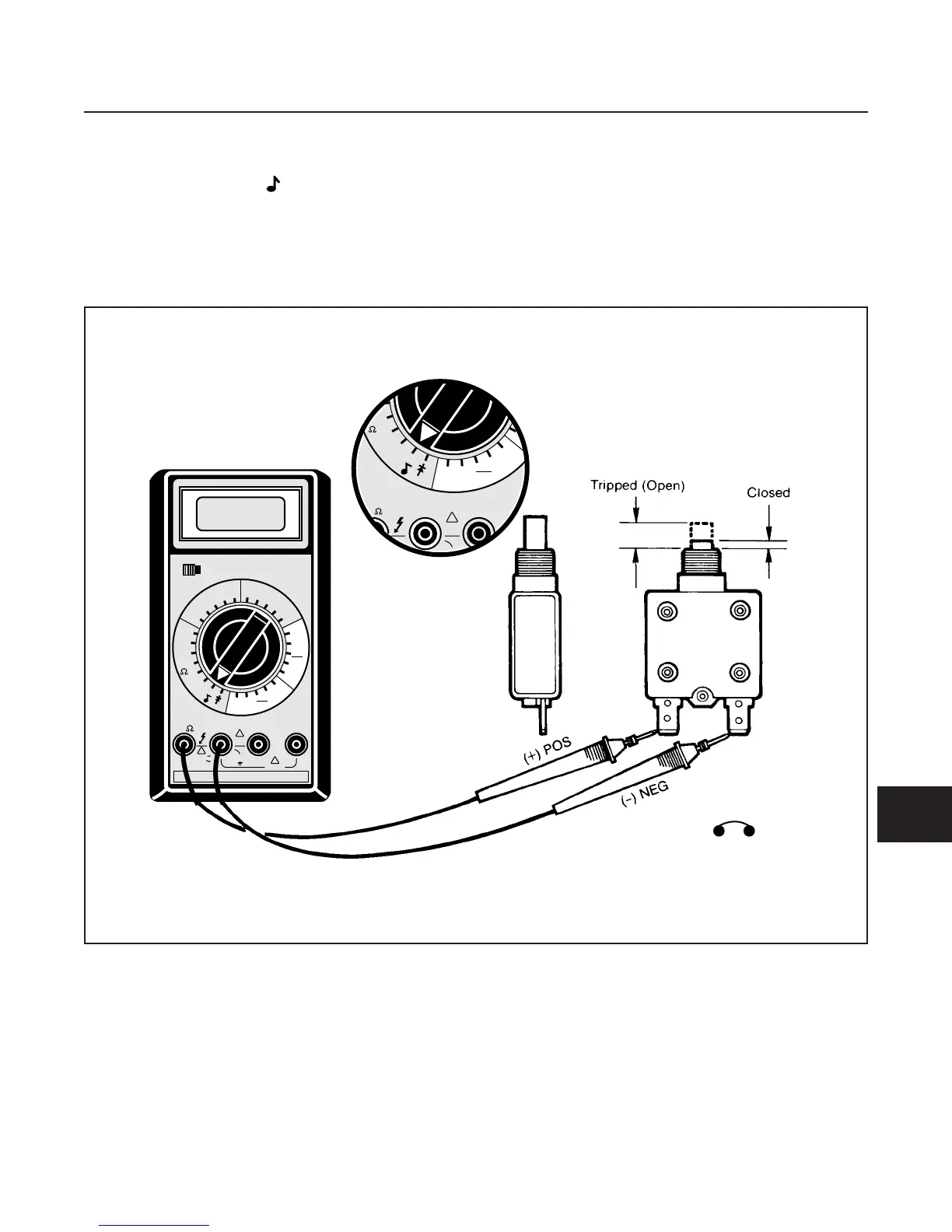

Figure 10J-1. Circuit Breaker Test
