FUSE TEST
See Figure 10J-2 and test fuse as follows:
1. Set multimeter to 200 Ω (ohms) scale.
2. Connect meter leads to fuse as shown.
•
There should be a reading (continuity) on the
meter scale. If not, replace fuse.
ELECTRICAL SYSTEM
SECTION 10J. CIRCUIT BREAKERS AND FUSE
10J-2
POWER
OFF ON
200m
2
20
200
1000
750
200
20
2
200m
20M
2M
200M
20K
2K
200
200
DCV
ACV
ACA
200µ
2m
200m
2
2
200m
20m
10A
2m
200µ
DCA
20m
10A
COM A 10A
!
1000V
750V
MAX
!
!
2A
MAX
10A MAX
500V
MAX
OEM 1428
200m
2
20
200
1000
750
200
20
2
200m
20M
2M
200M
20K
2K
200
200
DCV
ACV
ACA
200µ
2m
200m
2
2
200m
20m
10A
2m
200µ
DCA
20m
10A
COM A
!
2A
MAX
V -
-

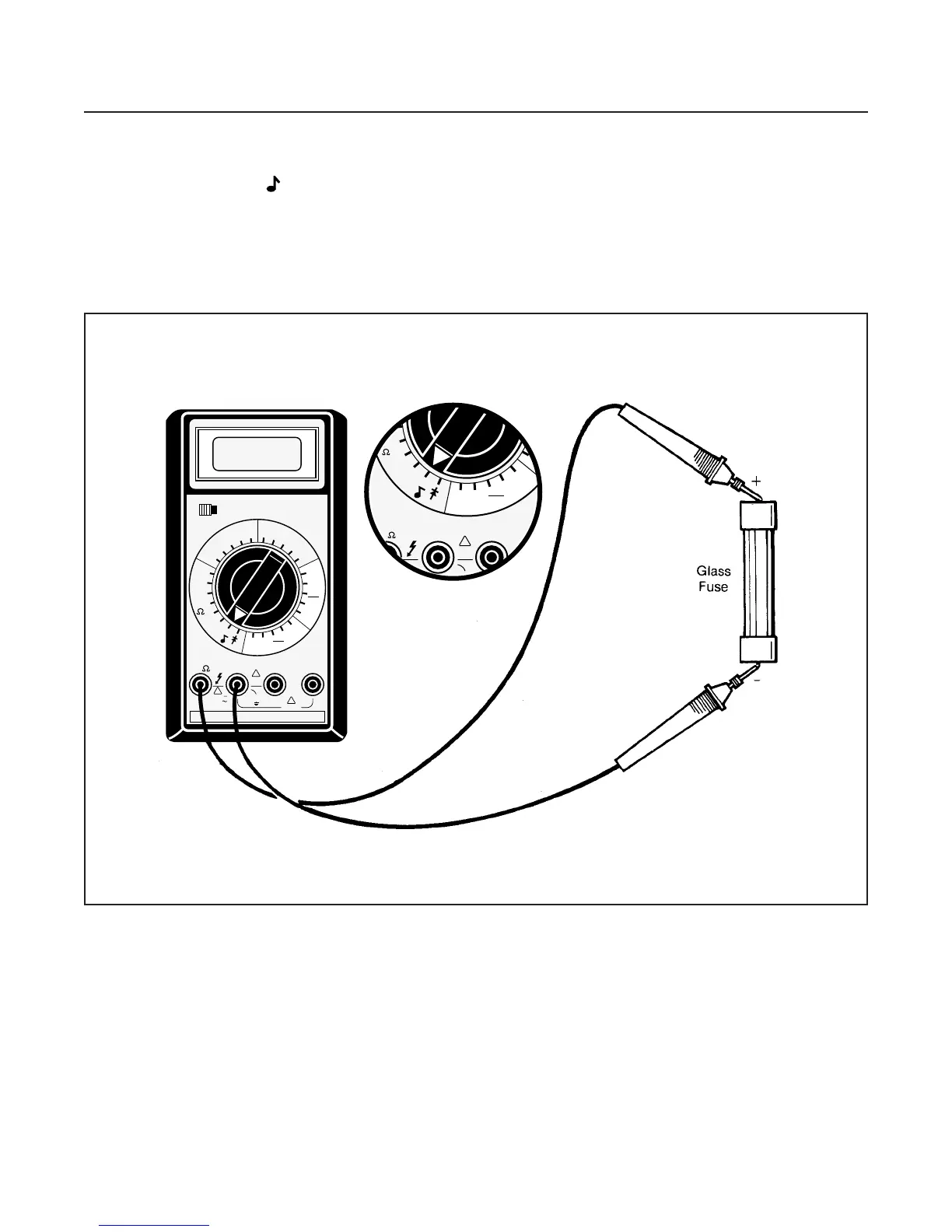

Figure 10J-2. Fuse Test
