GENERAL
The fuel tank is a single piece tank which should re-
quire no servicing unless punctured or otherwise acci-
dentally damaged. The fuel tank should be drained
whenever the machine is to be stored.
NOTE
The cap used on the tank is a vented cap.
REMOVAL AND INSTALLATION
(See Figure 9C-1)
1. Place a suitable container under tank and open
tank drain valve.
2. Remove fuel vent, outlet and return lines from tank.
3. Remove tank mounting hardware and tank.
4. Remove fuel lever indicator.
5. Position tank on tractor, do not fasten.
6. Connect fuel vent, outlet and return lines.
7. Fasten tank with mounting hardware.
8. Install fuel line indicator.
CHASSIS
SECTION 9C. FUEL TANK
9C-1
9C

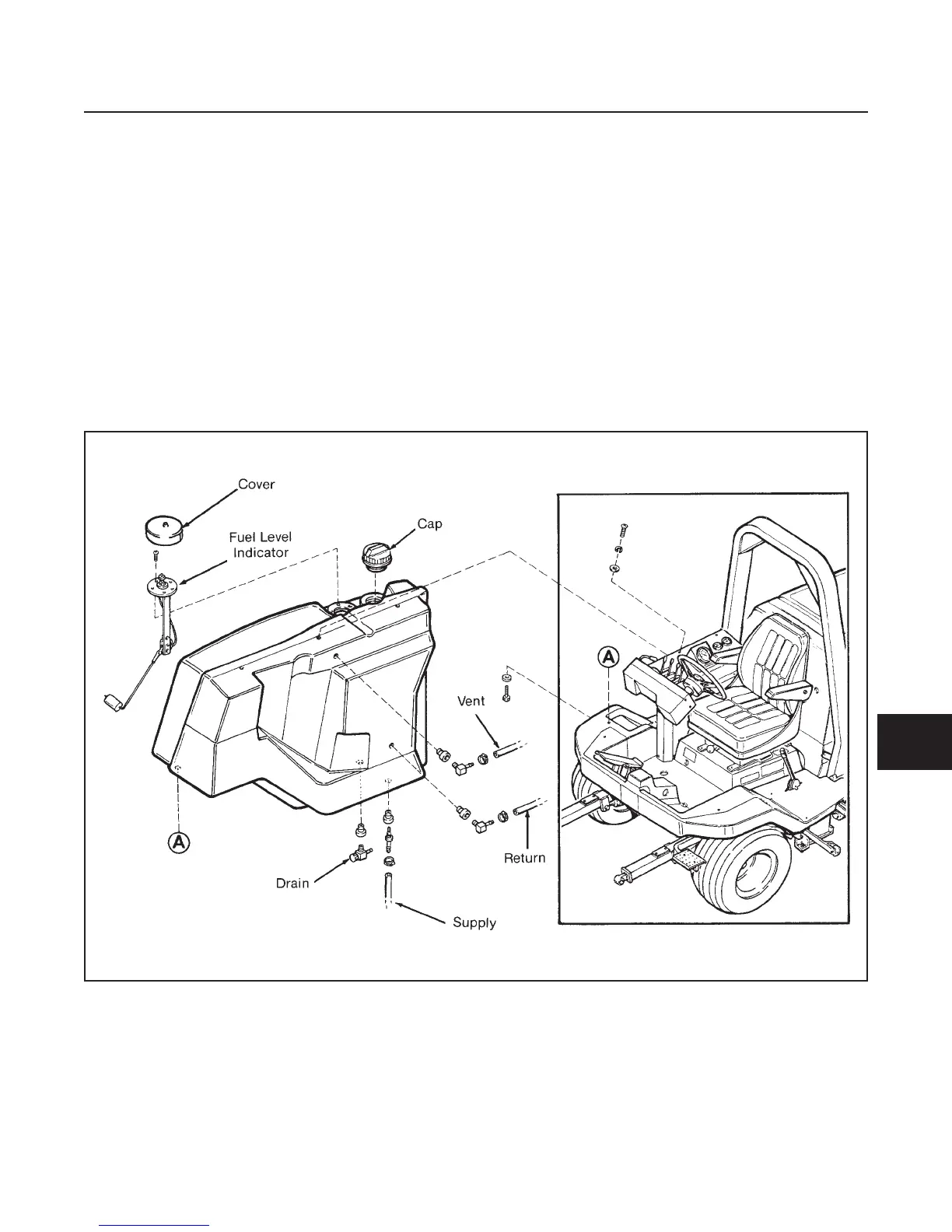

Figure 9C-1. Fuel Tank Removal and Installation
