TRACTION PEDAL NEUTRAL ADJUSTMENT
If the tractor moves (“creeps”) in either direction while
the engine is running, but traction pedal is not de-
pressed, the hydro centering cylinder may need adjust-
ing, see Figure 2C-3 and adjust traction pedal linkage
as follows:
IMPORTANT
Place a small amount of lubricating oil on pedal
linkage pivot points to ease movement.
1. Raise the tractor so all four wheels are off the
ground. Put jack stands under frame to prevent
accidental lowering of tractor during adjustment.
2. Electrically bypass seat switch.
3. Disengage parking brake.
4. Put 4 WHD/2 WHD switch in 2 WHD position.
5. Start engine and set throttle to full speed.
CONTROLS
SECTION 2C. CONTROL ADJUSTMENTS
2C-3
2C

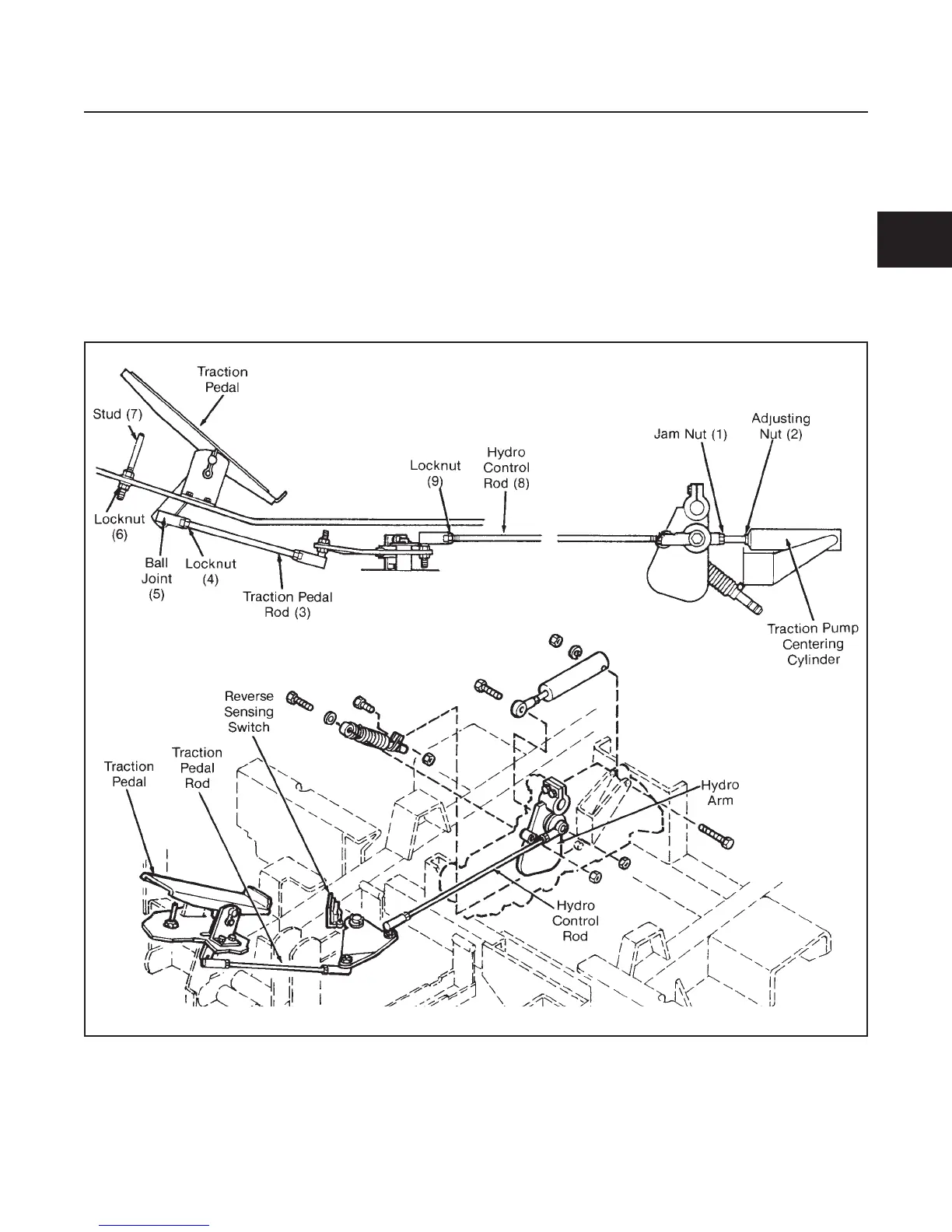

Figure 2C-3. Traction Pedal Adjustments
