REASSEMBLY (See Figure 4E-7)
If the axle shaft(s) were not removed, proceed with
Step 5.
1. Press wheel axle bearing into axle housing.
2. Support the inner race of the bearing and press
drive axle shaft into bearing.
(Step 3 for right axle ONLY)
3. Remove the differential lock assembly housing.
4. Press drive axle with bearing into axle housing,
(right axle ONLY) sliding the axle shaft through
the differential lock collar.
DRIVE TRAIN
SECTION 4E. AXLE
4E-6

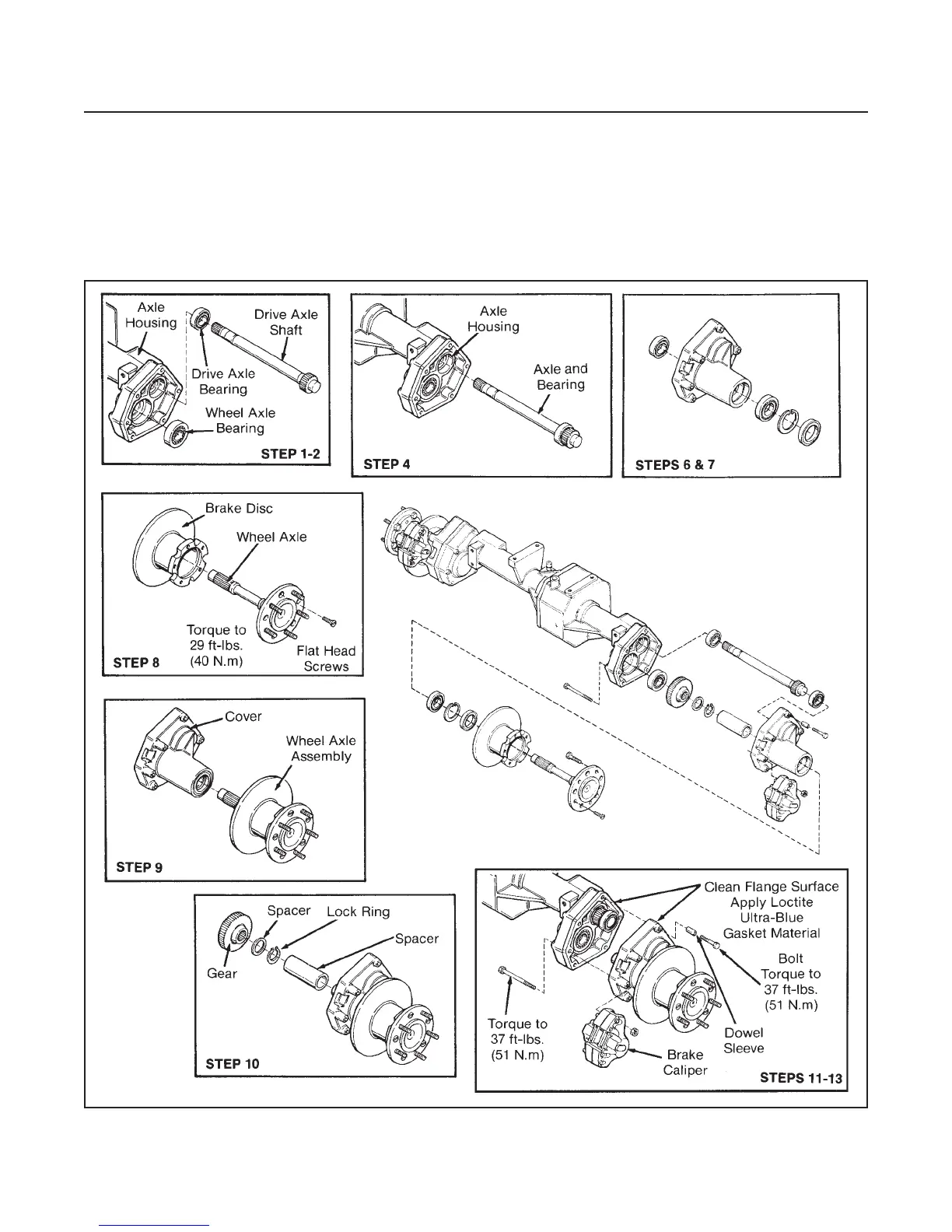

Figure 4E-7. Reduction Gear and Drive Axle Reassembly
