GENERAL
The repair of controls is limited to adjustment of link-
ages, straightening of bent rods or replacement of de-
fective parts and hardware.
THROTTLE (See Figure 2C-1)
Located to the right of the operator’s seat, the throttle
control is used to regulate engine speed.
Replace a
defective throttle as shown in Figure 2C-1.
CONTROLS
SECTION 2C. CONTROL
ADJUSTMENTS
2C-1
2C

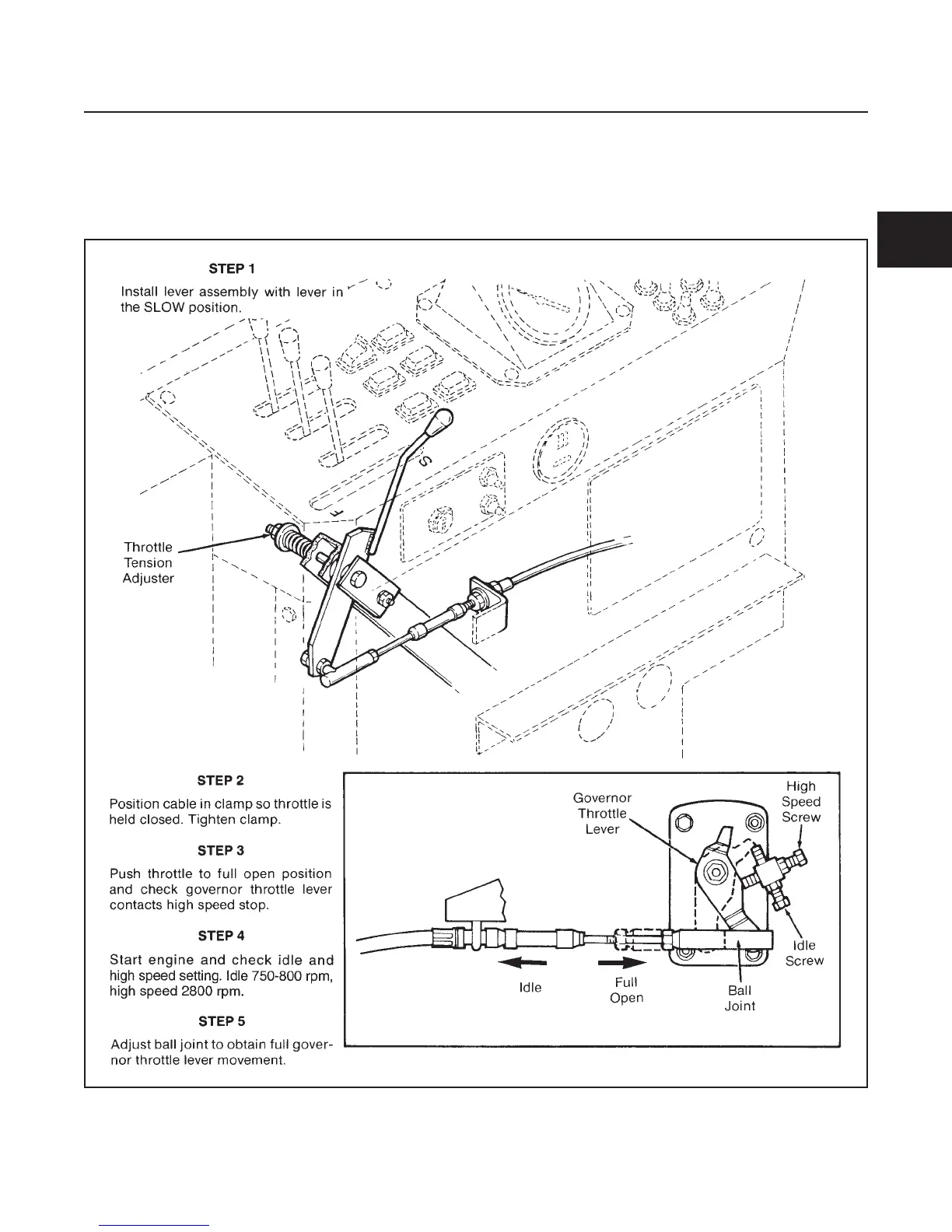

Figure 2C-1. Throttle Control
