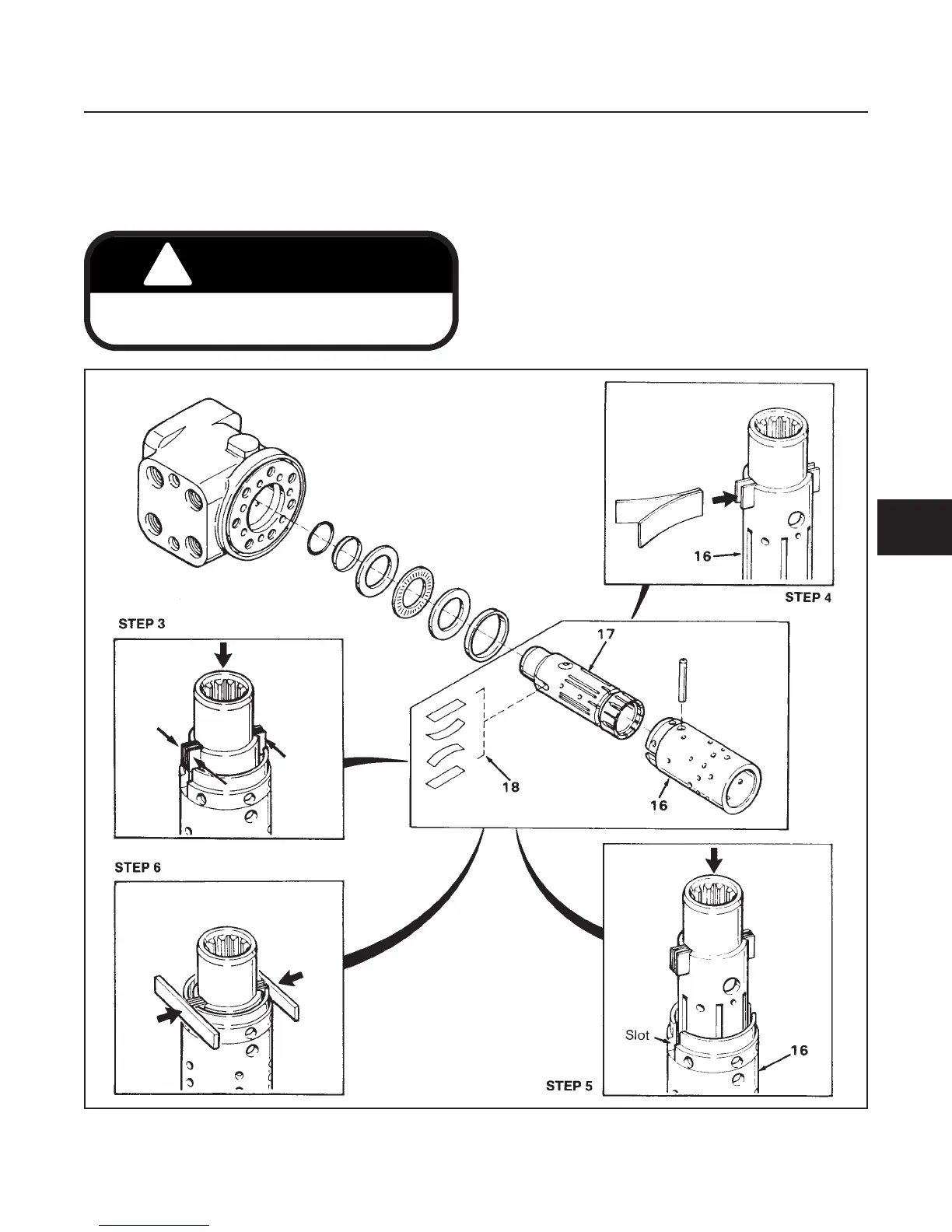

ASSEMBLY (See Figures 6C-7
through 6C-12)
1. Coat all parts with oil. Make sure parts are clean.
2. Insert spool (17) into sleeve (16), guide in carefully.
3. Install two flat neutral position springs (18) into
slot of spool (17).
4. Slide two curved springs (18) between the flat
springs.
5. Press springs together and push into slots of sleeve
(16).
6. Line up springs (18) and center them.
STEERING
SECTION 6C. STEERING UNIT
6C-5
6C
Figure 6C-7.
!
CAUTION
DO NOT force these parts together. They are
closely fitted and require careful handling.
