REGULATOR TEST (See Figure 10E-6)
The regulator regulates the output voltage and current
according to the electrical demand.
ELECTRICAL SYSTEM
SECTION 10E. CHARGING SYSTEM
10E-6

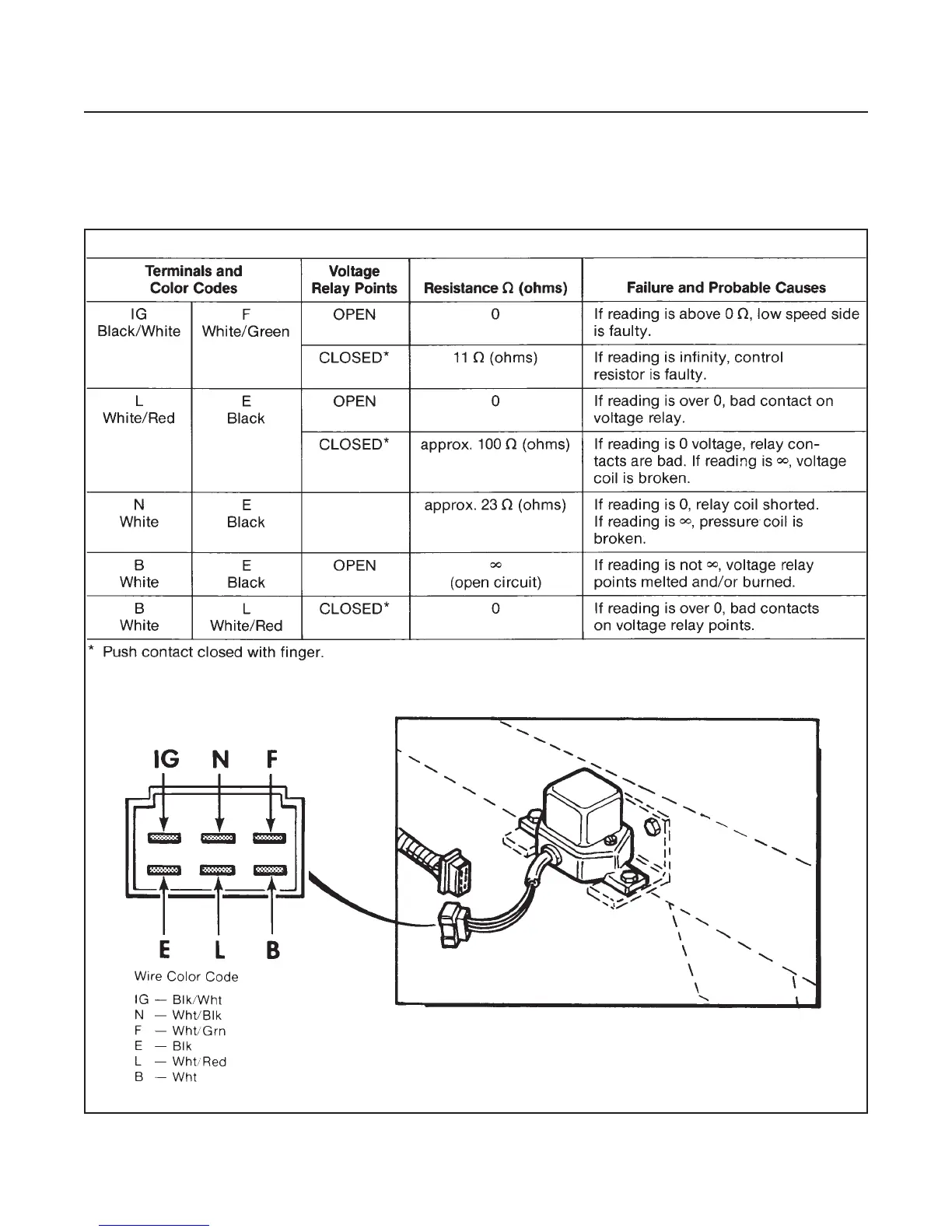

Figure 10E-6. Regulator Test
