INSTALLATION
(See Figures 6C-1 and 6C-14)
1. Position and attach steering unit to tractor.
2. Connect hydraulic lines, see Figure 6C-14.
3. Install insert (5), flat washer (3), steering wheel (4)
and nut (1). Torque nuts to 25–30 ft-lbs. (34–41
N.m).
4. If steering unit was disassembled, adjust shock
valve and relief valve pressure settings as de-
scribed in Section 8R.
5. Install steering unit cover (6).
STEERING
SECTION 6C. STEERING UNIT
6C-11
6C

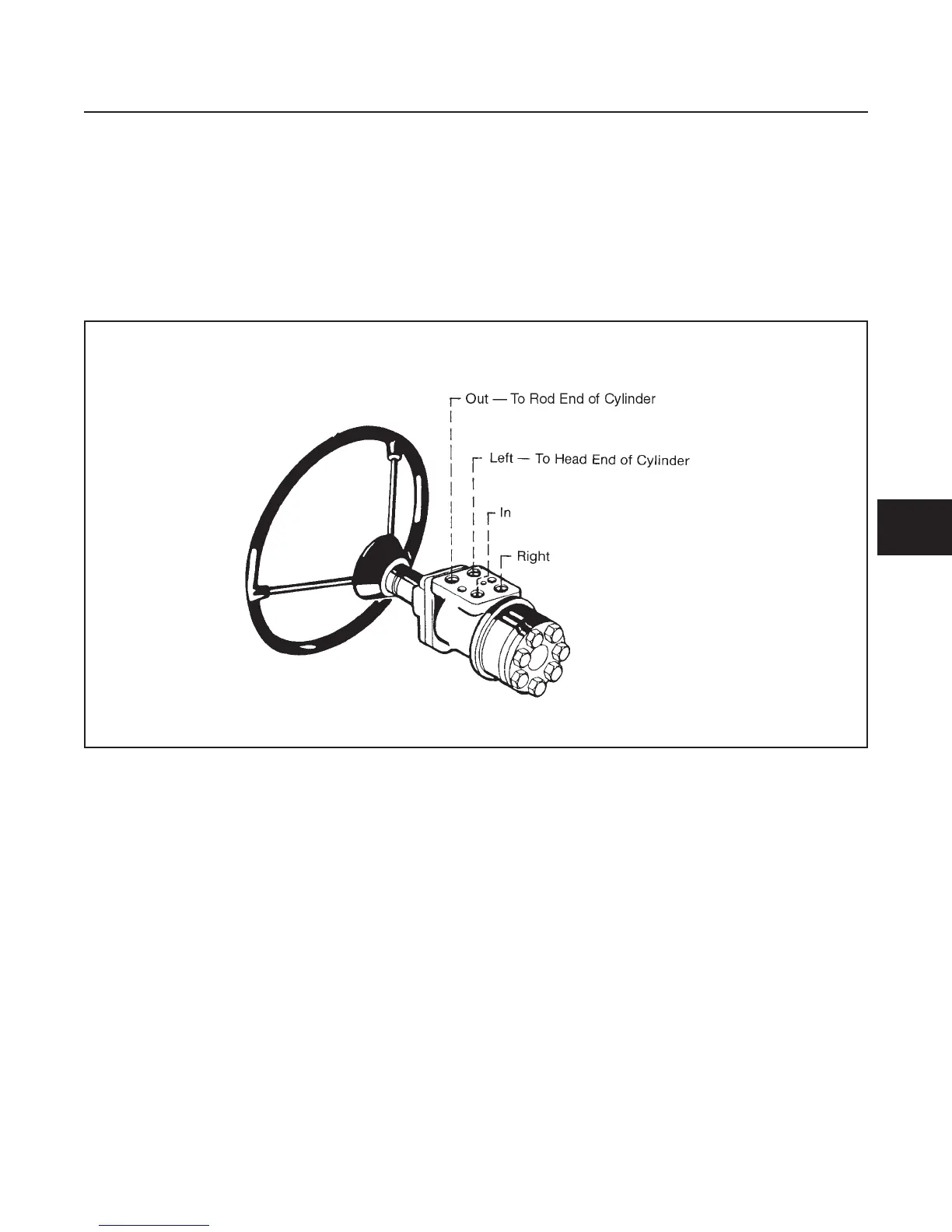

Figure 6C-14. Hydraulic Hose Connection
