NOTE
There are two shock valve assemblies. Instal-
lation of both are the same, see Step 27.
NOTE
The pressure setting of this valve must be ad-
justed. Use the tractor hydraulics and adjust as
described in Section 8S.
28. Install relief valve spool (34), spring (33), and us-
ing an 8 mm hex socket wrench, plug (32).
29. Install washer (31) and plugs (30) snug.
After adjusting pressure, (see Section 8S) rein-
stall plug (30) and torque to 37 ft-lbs. (50 N.m).
STEERING
SECTION 6C. STEERING UNIT
6C-10

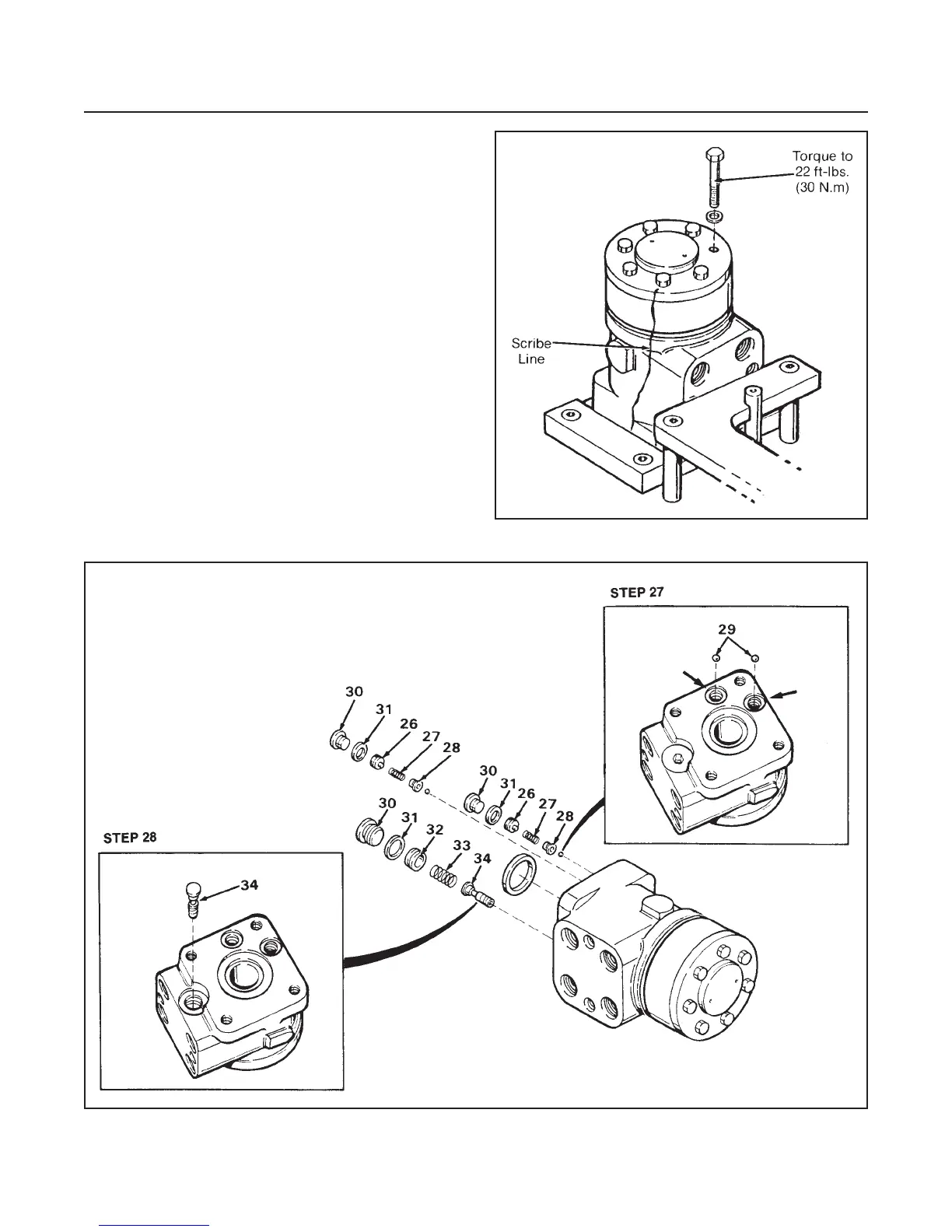

Figure 6C-12.
Figure 6C-13. Alignment Mark
