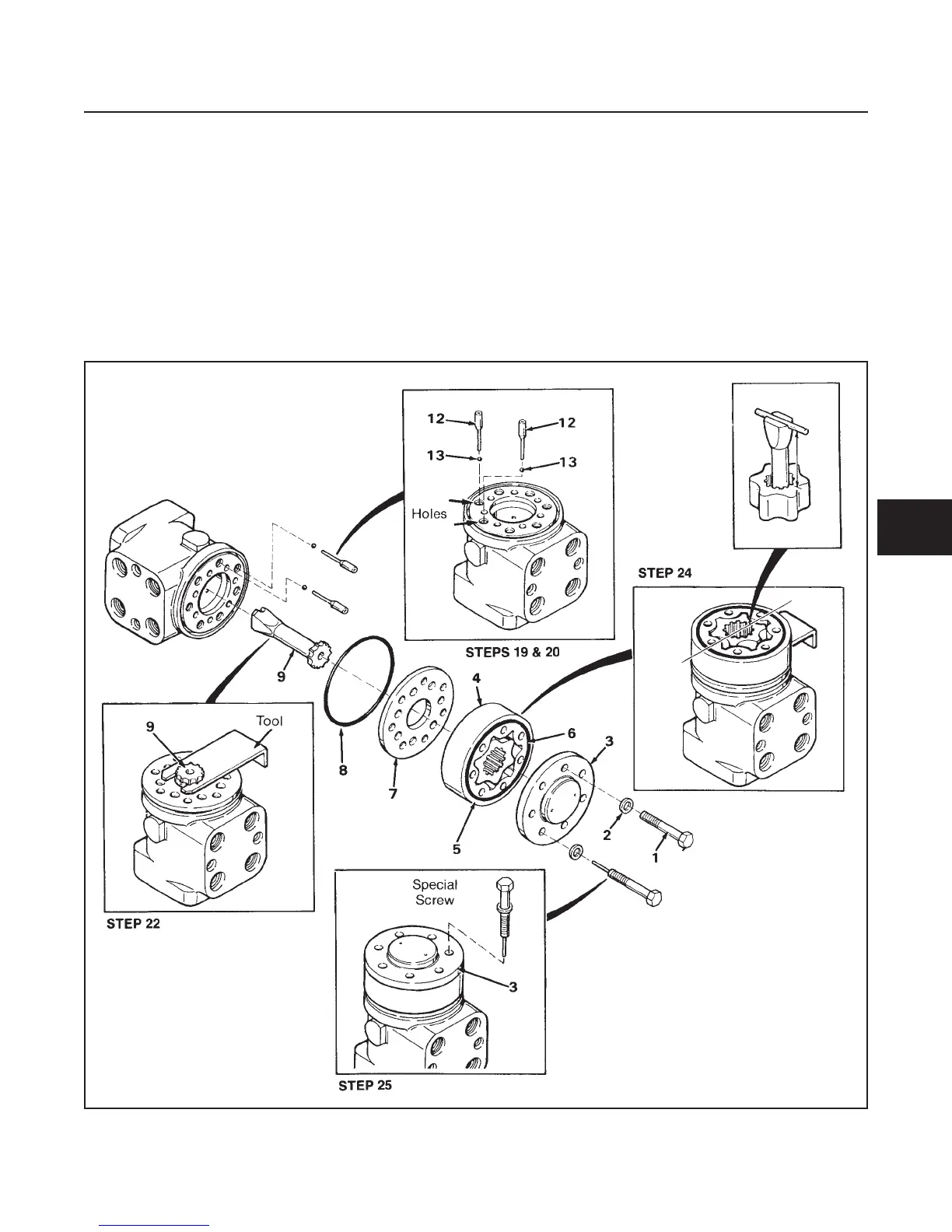

(See Figure 6C-11)
19. Install 3/16" suction valve balls (13) as shown.
20. Install suction valve pins (12) as shown.
21. Install O-ring (8) and distributor plate (7).
22. Install cardan shaft (9) and hold in position with
tool SJ 150-9000-3.
23. Install O-rings (4 and 6) to gear wheel set (5).
24. Install gear wheel set (5). Engage the splines so
the valley of the inner rotor is in line with the pin
slot of the cardan shaft as shown.
25. Install cover (3), flat washers (2) and screws (1).
NOTE
Be sure to place the special screw in the correct
hole as shown.
26. Remove cardan shaft tool. Torque screws to 22 ft-
lbs. (30 N.m).
27. Install shock valve ball (29), valve cone (28), spring
(27) and using a 6 mm hex socket wrench, plug
(26).
STEERING
SECTION 6C. STEERING UNIT
6C-9
6C
Figure 6C-11.
